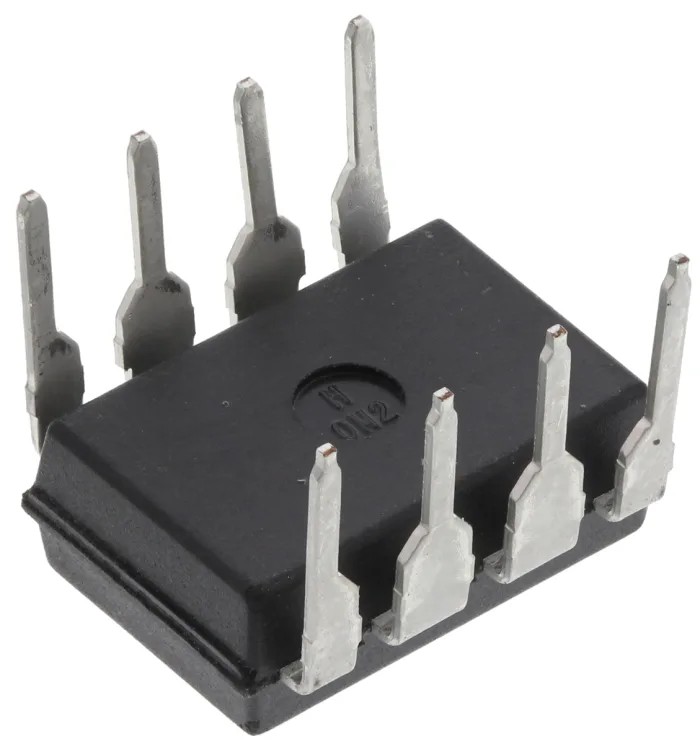

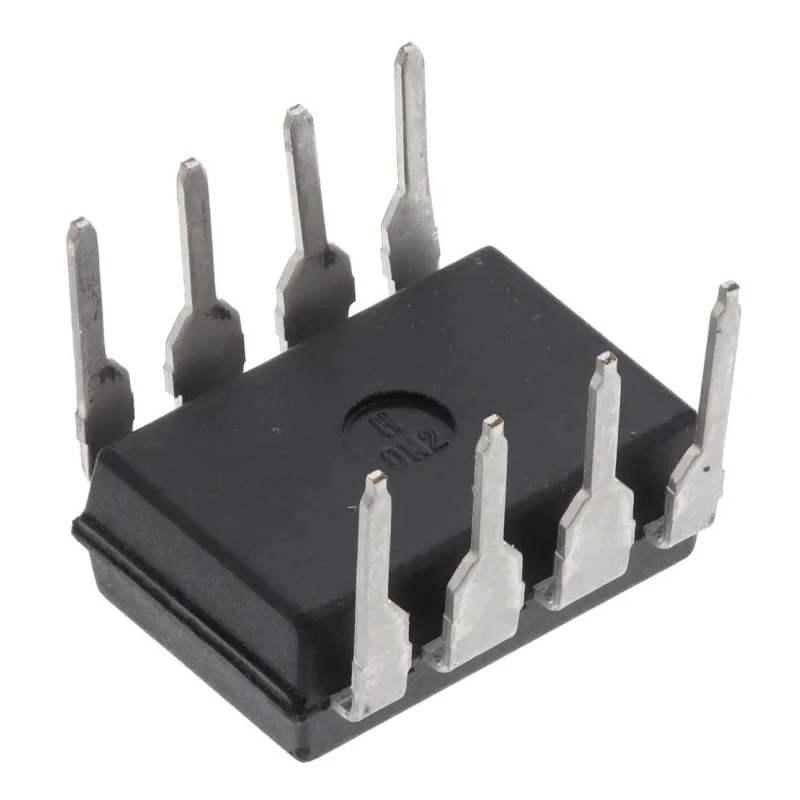

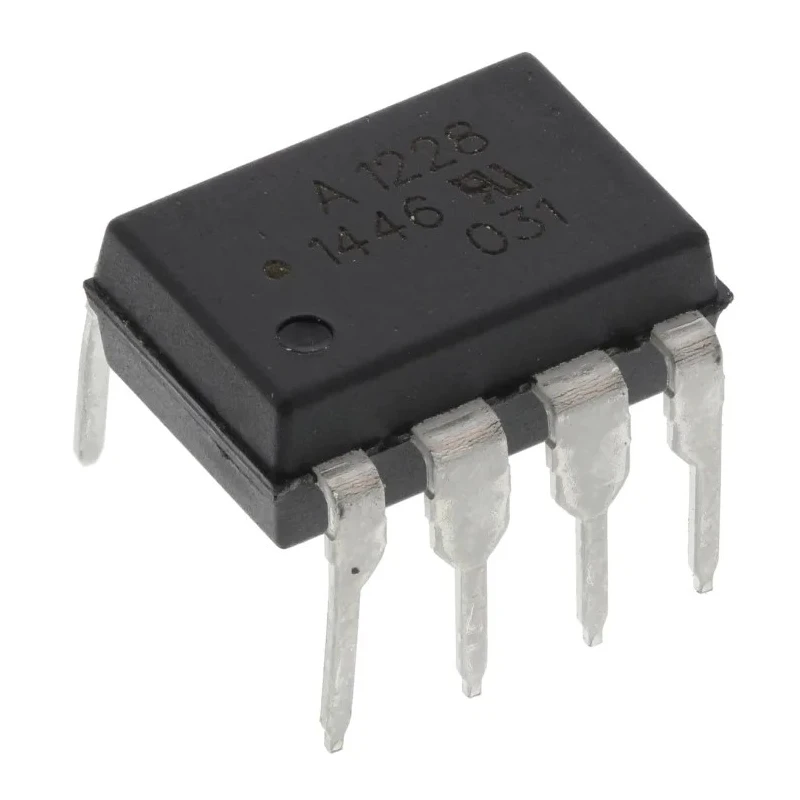

Broadcom ASSR-1228-002E Solid State Relay, 0.2 A Load Current, 60 V Load Voltage, PCB Mount, 1.6 V Control Voltage
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 3.6mm |
| Length | 9.7mm |
| Model | ASSR-1228-002E |
| Width | 6.4mm |
| Mount Type | PCB |
| Output type | MOSFET |
| Series | ASSR-1218 |
| Maximum Operating Temperature | +85°C |
| Contact Configuration | SPST |
| Package Type | DIP-8 |
| Capacitance | 0.4pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | 4-Pin |
| Switching Function | AC Switching |
| Maximum Load Current | 0.2A |
| Standards/Approvals | CSA, RoHS, IEC |
| Maximum Load Voltage | 60V |
| Minimum Load Voltage | -60V |
| Minimum Control Voltage | 1.25V |
| Maximum Control Voltage | 1.6V |
| Off State Leakage Current | 1μA |
| On State Resistance | 0.25Ω |
Key Features
- This relay operates with a low control voltage ranging from 1.25 V to 1.6 V.
- It has a single-pole single-throw (SPST) contact configuration.
- The package type is DIP-8 with a compact size of 9.7 mm length, 6.4 mm width, and 3.6 mm height.
- Designed for AC switching applications with a switching function optimized for industrial and automation use.
- The device uses a MOSFET output type with an on-state resistance of 0.25 Ω for efficient operation.
- Operational temperature range spans from -40°C to +85°C, ensuring durability in various environments.
- It meets standards and approvals including CSA, RoHS, and IEC for quality and reliability.
- Low off-state leakage current of 1 μA and a capacitance of 0.4 pF enhance performance.
Product Description
Broadcom ASSR-1228-002E is a high-quality solid state relay designed for efficient AC switching in industrial automation and signal conditioning applications. This PCB mount relay supports a maximum load current of 0.2 A and can handle load voltages up to 60 V, making it ideal for use in compact control circuits.
Featuring a DIP-8 package, the relay measures 9.7 mm in length, 6.4 mm in width, and 3.6 mm in height, allowing seamless integration on printed circuit boards. The relay operates via an infrared LED and a high-speed photovoltaic diode array driving two discrete MOSFETs, ensuring fast and reliable switching performance.
Control voltage requirements are minimal, with a range of 1.25 V to 1.6 V, reducing power consumption and improving system efficiency. The relay’s SPST contact configuration enables simple and effective circuit control with an on-state resistance of 0.25 Ω, minimizing conduction loss.
Engineered to withstand harsh environments, the ASSR-1228-002E operates within a broad temperature range of -40°C to +85°C and complies with internationally recognized standards such as CSA, RoHS, and IEC.
Compact DIP-8 package with PCB mount compatibility. MOSFET output type for reliable and fast AC switching. Low control voltage operation from 1.25 V to 1.6 V. Maximum load current 0.2 A and load voltage 60 V AC. Single-pole single-throw (SPST) contact configuration.
On-state resistance of 0.25 Ω reduces conduction losses. Operating temperature range from -40°C to +85°C. Low off-state leakage current of 1 μA and capacitance of 0.4 pF. Certified to CSA, RoHS, and IEC standards.
This Solid State Relay is suitable for a wide range of industrial, laboratory, manufacturing, and automation control applications requiring reliable, noise-free switching. Its robust approvals and low power operation make it a preferred choice for enhancing production efficiency and system longevity.
Explore more high-quality relays and automation components in the Electronics & Electricals category at EnvMart for your industrial projects and system integration needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 0.2 A.
It can handle load voltages up to 60 V.
The control voltage range for this relay is from 1.25 V to 1.6 V.
This model features a single-pole single-throw (SPST) contact configuration.
The relay has a length of 9.7 mm, a width of 6.4 mm, and a height of 3.6 mm.
The on-state resistance is 0.25 Ω, which helps minimize conduction loss.
The operational temperature range spans from -40°C to +85°C.
The off-state leakage current is 1 μA.
It uses a DIP-8 package type, suitable for PCB mounting.
This relay complies with CSA, RoHS, and IEC standards.
It utilizes a MOSFET output type for efficient operation.
It is designed for AC switching applications, particularly in industrial automation and signal conditioning.
