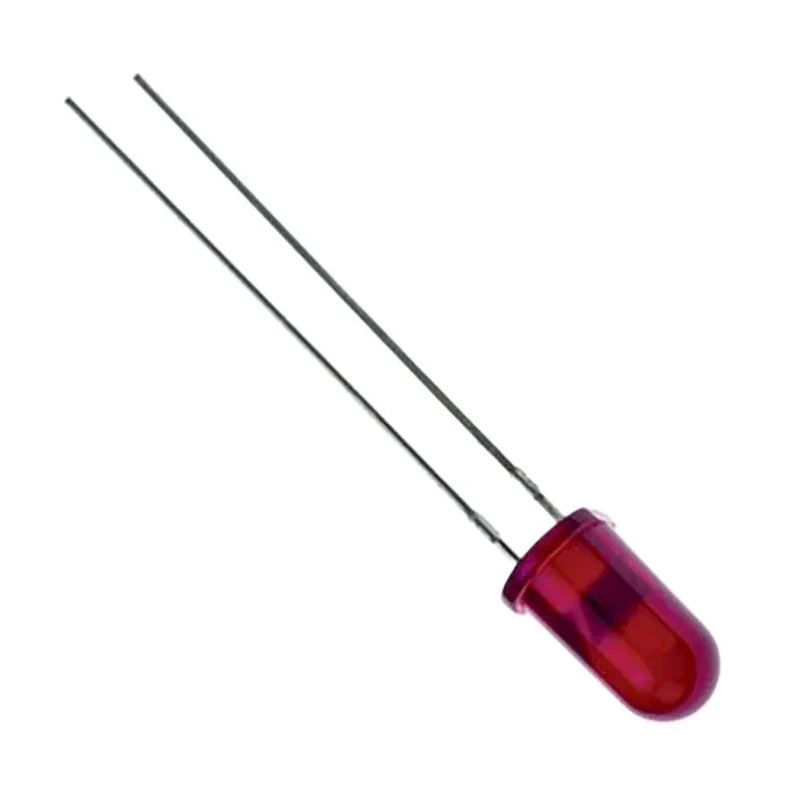

Broadcom 1.7 V Red LED 5 mm (T-1 3/4) Through Hole HLMP-4700
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HLMP-4700 |
| Packaging | Bulk |
| Mount Type | Through Hole |
| Series | HLMP |
| Maximum forward current | 7mA |
| Viewing angle | 50 ° |
| Package Type | 5 mm (T-1 3/4) |
| Lens Colour | Red |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Forward Voltage | 1.7V |
| Number of Pins | 2 |
| LED Luminosity | 2.3 mcd |
| Maximum Power Dissipation | 14mW |
| Lens Dimensions | 5 x 9.19 mm |
| Lens Shape | Round |
| Lens Finish | Tinted, Diffused |
Key Features
- Operates at a maximum forward current of 7 mA for low power consumption.
- 5 mm (T-1 3/4) round tinted and diffused red lens design ensures wide 50° viewing angle.
- Maximum power dissipation of 14 mW with 2-pin through hole mount type.
- Dominant wavelength of 626 nm delivering a luminosity of 2.3 mcd.
- RoHS compliant with consistent brightness suitable for TTL and CMOS logic circuits.
- Ideal for telecommunications, keyboard indicators, and low power DC circuits.
- Bulk packaging facilitates efficient manufacturing and assembly processes.
Product Description
Broadcom HLMP-4700 is a 5 mm (T-1 3/4) through hole LED featuring a red tinted, diffused round lens with a dominant wavelength of 626 nm. It operates at a forward voltage of 1.7 V and a maximum forward current of 7 mA, providing low power consumption and high efficiency.
This LED has a maximum power dissipation of 14 mW and features a wide 50-degree viewing angle, making it suitable for visible indicator applications. The device offers a luminous intensity of 2.3 mcd, ensuring visibility in various lighting conditions.
Engineered to be RoHS compliant, the HLMP-4700 series is compatible with CMOS and TTL logic levels, allowing consistent brightness at TTL output currents. Its two-pin through hole mount design is well suited for printed circuit boards and easy assembly in industrial, telecommunications, and portable equipment use cases.
Applications include low power DC circuits, telecommunications indicators, keyboard status indicators, and other visual signaling equipment requiring reliable, low current LEDs. Operates at maximum forward current of 7 mA for efficiency.
5 mm T-1 3/4 package with wide 50° viewing angle. Dominant wavelength 626 nm red LED. RoHS compliant for environmental safety. Through hole mount type with 2 pins. Suitable for telecommunications and keyboard indicators.
Bulk packaging optimizes production processes.
The Broadcom HLMP-4700 LED integrates seamlessly into industrial electronic components, particularly in telecommunications, manufacturing, and commercial equipment. Explore more LED solutions and optoelectronic components on EnvMart to complete your industrial and electronics projects.
Explore more products in our LED - Light Emitting Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for the HLMP-4700 is 7 mA, which allows for low power consumption.
The dominant wavelength of the HLMP-4700 is 626 nm, which corresponds to its red color.
This LED features a wide viewing angle of 50 degrees, making it suitable for various applications.
The forward voltage for this model is 1.7 V, which is typical for low power LEDs.
The HLMP-4700 uses a through hole mount type with 2 pins, making it compatible with printed circuit boards.
The maximum power dissipation of the HLMP-4700 is 14 mW, ensuring it operates efficiently.
This model has a luminosity of 2.3 mcd, providing visibility in various lighting conditions.
Yes, the HLMP-4700 is RoHS compliant, ensuring it meets environmental safety standards.
The lens dimensions of the HLMP-4700 are 5 x 9.19 mm, with a round shape and tinted, diffused finish.
The HLMP-4700 is available in bulk packaging, which facilitates efficient manufacturing and assembly processes.
This LED is part of the HLMP series, which includes various models of light-emitting diodes.
