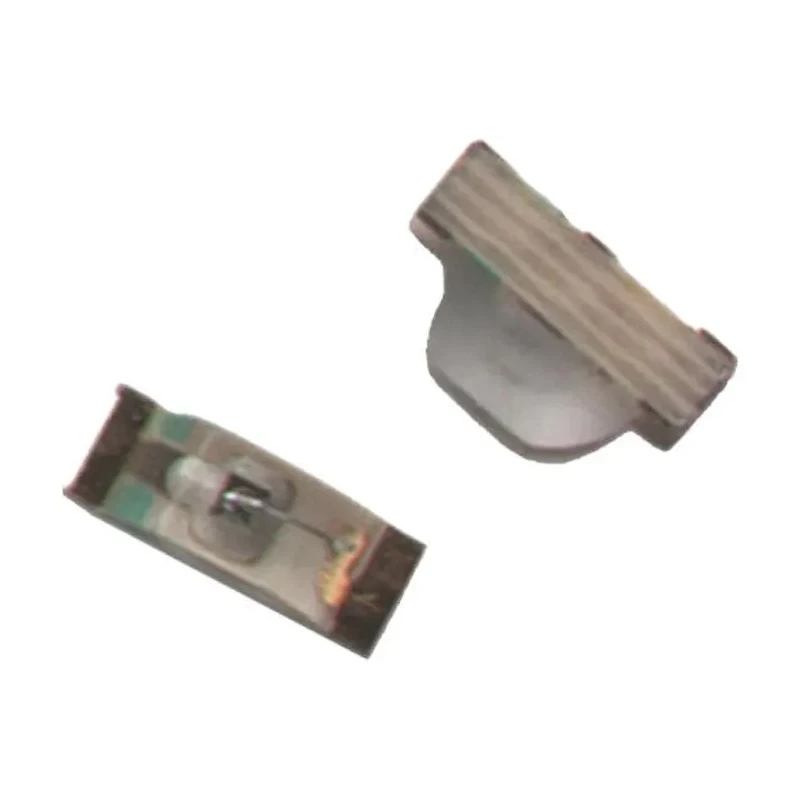

Broadcom 1.9 V Amber LED 0603 Surface Mount HSMA-C120
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HSMA-C120 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | HSMA |
| Maximum forward current | 25mA |
| Viewing angle | 155 ° |
| Package Type | 0603 |
| Standards/Approvals | RoHS |
| LED Colour | Amber |
| Dominant Wavelength | 592nm |
| Forward Voltage | 1.9V |
| Number of Pins | 2 |
| LED Luminosity | 90 mcd |
| Maximum Power Dissipation | 60mW |
| Lens Dimensions | 1.6 x 1 x 0.6 mm |
| Lens Shape | Dome |
| Lens Finish | Untinted, Non-Diffused |
Key Features
- The LED emits amber light with a dominant wavelength of 592 nm.
- It operates at a forward voltage of 1.9 V and a maximum forward current of 25 mA.
- The device features a dome-shaped clear lens with untinted, non-diffused finish for precise light output.
- Comes in an industry standard 0603 footprint with dimensions of 1.6 x 1 x 0.6 mm.
- Has a wide viewing angle of 155 degrees enhancing visibility in indicator applications.
- Maximum power dissipation is rated at 60 mW ensuring efficient performance.
- The LED offers a luminous intensity of 90 mcd suitable for keypad and front panel backlighting.
- Packaged in tape & reel format for ease of automated assembly.
Product Description
Broadcom HSMA-C120 is an amber-colored LED designed specifically for surface mount technology (SMT) applications in industrial and commercial electronic devices. It features a compact 0603 package size of 1.6 x 1 x 0.6 mm, which aligns with industry standards facilitating integration into tight PCB layouts.
This LED emits light at a dominant wavelength of 592 nm with a luminous intensity of 90 millicandela (mcd), providing clear and bright amber illumination. The device operates with a forward voltage of 1.9 V and can handle a maximum forward current of 25 mA, promoting energy efficiency.
The dome-shaped lens is untinted and non-diffused with a 155-degree viewing angle, which optimizes light distribution for applications such as keypad and push-button backlighting, LCD backlighting, symbol backlighting, and front panel indicators.
Broadcom HSMA-C120 is RoHS compliant and designed to operate reliably within a temperature range from -30°C to +85°C, making it suitable for harsh industrial and commercial environments. It is supplied in tape and reel packaging to support efficient production processes with automated insertion.
Typical applications include electronic component indicators, control panels in manufacturing equipment, instrumentation displays, and various lighting needs in electronic assemblies.
The compact, industry standard 0603 footprint allows for versatile use across circuit designs. Advanced dome lens design enhances optical performance with broad viewing angle. Suitable for use in industrial, laboratory, HVAC, and electronic manufacturing sectors.
Compliant with RoHS environmental standards for restricted hazardous substances. Competitive forward voltage and power dissipation allow for energy-conscious designs. Explore more in the Electronics & Electricals category at EnvMart to find compatible LED components and accessories.
Explore more products in our LED - Light Emitting Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HSMA-C120 LED emits light with a dominant wavelength of 592 nm, producing amber illumination.
It operates at a forward voltage of 1.9 V, suitable for various electronic applications.
The maximum forward current for this LED is 25 mA, allowing efficient operation in electronic circuits.
The HSMA-C120 has a luminous intensity of 90 millicandela (mcd), making it suitable for backlighting applications.
This model features a compact size with dimensions of 1.6 x 1 x 0.6 mm, adhering to the 0603 package standard.
It has a wide viewing angle of 155 degrees, enhancing visibility in indicator applications.
The HSMA-C120 is packaged in tape and reel format, facilitating automated assembly processes.
The maximum power dissipation is rated at 60 mW, ensuring efficient performance during operation.
It features a dome-shaped lens with an untinted, non-diffused finish for precise light output.
This LED is RoHS compliant, adhering to environmental standards for restricted hazardous substances.
It is designed to operate reliably within a temperature range from -30°C to +85°C, suitable for various environments.
Typical applications include keypad and push-button backlighting, LCD backlighting, and front panel indicators.
