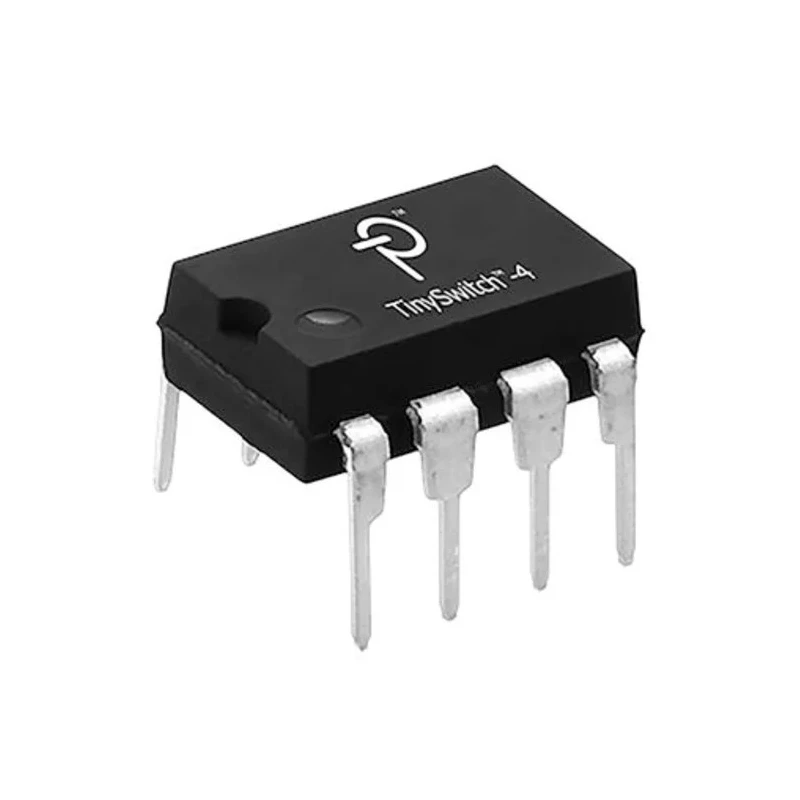

Power Integrations AC/DC Converter 2.55 A, 50 V dc 7-Pin DIP TNY290PG

Power Integrations TNY290PG AC/DC Converter is a TinySwitch-4 series energy-efficient offline converter combining a high-voltage power MOSFET and flyback power supply controller in a single compact 7-pin DIP package. Designed for industrial and electronic semiconductor power management circuits, it provides a maximum output current of 2.55 A and output voltage of 50 V dc with 14 W output power capability.

Its flyback topology enables simple ON/OFF control without the need for loop compensation, enhancing design simplicity and reducing costs. The converter supports input voltage range from 85 V ac minimum to 265 V ac maximum, suitable for diverse supply environments.

Designed to operate reliably from -40°C to 150°C, it includes accurate hysteretic thermal shutdown with automatic recovery and frequency jittering to reduce EMI filter requirements. Self-biased operation eliminates the need for bias winding or components, simplifying circuit design.

The device features a compact DIP package measuring 9.83 mm in length, 6.6 mm in width, and 3.68 mm in height with a through-hole mount, making it easy to integrate into printed circuit boards for power management applications in industrial, electronic components, and semiconductor sectors.

Maximum input voltage: 265 V ac. Output power: 14 W. Pin count: 7. Maximum output current: 2.55 A. Package type: DIP with through-hole mount. Temperature operation range: -40°C to 150°C. Flyback topology with ON/OFF control.

Self-biased, no bias winding required. Frequency jittering for EMI reduction. Accurate thermal shutdown with auto recovery.

This converter is ideal for applications such as power supplies for industrial machines, electronic systems, HVAC, and manufacturing equipment where reliable and efficient AC to DC conversion is necessary.
