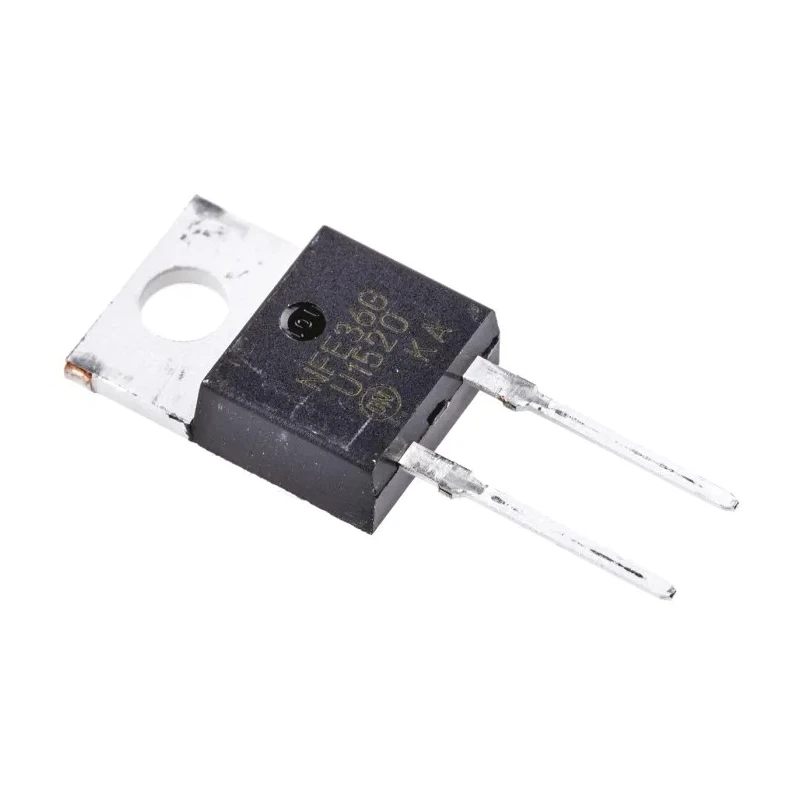

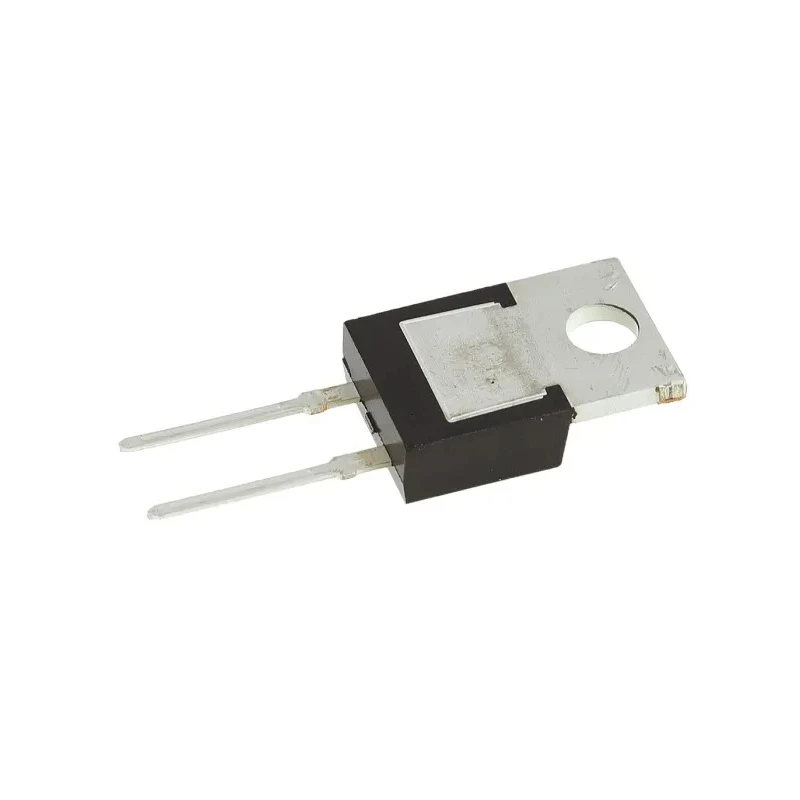

onsemi Silicon Junction Switching Diode Single 15 A 200 V TO-220 MUR1520G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Silicon Junction Switching Diode Single 15 A 200 V TO-220 MUR1520G

Name: onsemi Silicon Junction Switching Diode Single 15 A 200 V TO-220 MUR1520G
Brand: onsemi
SKU: 123512
Price: 2.68 USD
Availability: InStock



Category Switching Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	9.27mm
Length	10.29mm
Model	MUR1520G
Width	4.82mm
Mount Type	Through Hole
Maximum Operating Temperature	175°C
Package Type	TO-220
Sub Type	Silicon Junction
Minimum Operating Temperature	-65°C
Pin Count	2
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Maximum Forward Voltage Vf	1.05V
Peak Reverse Recovery Time trr	35ns
Maximum Forward Current If	15A
Maximum Peak Reverse Repetitive Voltage Vrrm	200V
Diode,Rectifier,MUR1520Brand	ON Semiconductor

Key Features

Single diode configuration designed for through hole mounting.
Maximum forward voltage of 1.05 V ensures efficient conduction.
Peak reverse recovery time of 35 ns supports fast switching applications.
Operates in temperatures ranging from -65°C to 175°C.
Provides peak non-repetitive forward surge current up to 200 A.
Compact dimensions of 10.29 mm length, 9.27 mm height, and 4.82 mm width.
Suitable for rectifier and switching diode industrial applications.
Package type TO-220 with 2-pin count for easy circuit integration.

Product Description

onsemi MUR1520G is a high-performance Silicon Junction Switching Diode designed for industrial semiconductor applications requiring a maximum forward current of 15 A and reverse voltage rating of 200 V. Packaged in a robust TO-220 body, this diode is ideal for through hole mounting in power rectification and switching circuits.

The device features a peak reverse recovery time of 35 ns, enabling fast switching operations suitable for various electronic equipment and power supply systems. With a maximum forward voltage of 1.05 V, it ensures efficient conduction and low power losses.

It supports a peak non-repetitive forward surge current of 200 A, making it reliable under transient conditions. Designed to operate across a wide temperature range from -65°C to 175°C, it is suitable for use in demanding industrial and commercial environments.

The compact physical dimensions of 10.29 mm length, 9.27 mm height, and 4.82 mm width allow for space-saving design implementations. With a 2-pin TO-220 package, this switching diode simplifies circuit assembly and is compatible with standard power electronic hardware mounts.

Single diode configuration designed for through hole mounting. Maximum forward voltage of 1.05 V for efficient conduction. Fast peak reverse recovery time of 35 ns. Wide operating temperature range from -65°C to 175°C. High peak non-repetitive forward surge current of 200 A.

Compact TO-220 package dimensions. Application in rectifier diodes and switching circuits. Reliable performance in industrial electronic assemblies.

This silicon junction diode by onsemi is commonly used in industrial electronics, power systems, manufacturing equipment, and laboratory instruments where fast, reliable switching and rectification are required. The TO-220 package ensures easy installation in through-hole PCB configurations, supporting maintenance and replacements.
