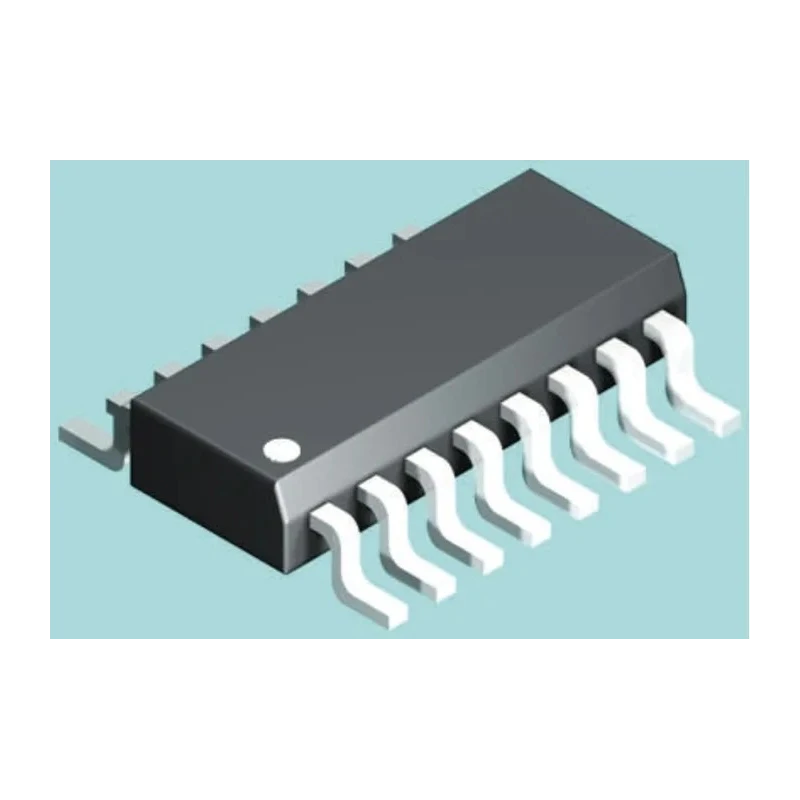

STMicroelectronics 7 Darlington NPN Transistor 500 mA 50 V 16-Pin SOIC ULN2002D1013TR

STMicroelectronics ULN2002D1013TR is a 7 Darlington pair NPN transistor array designed for high voltage and high current switching applications. It features 7 parallel open-collector Darlington pairs integrated with suppression diodes for driving inductive loads efficiently. This device supports a maximum continuous collector current of 500 mA per channel and a collector-emitter voltage rating of 50 V, making it suitable for various industrial and electronics control applications.

The transistor array is housed in a compact 16-pin SOIC surface mount package, which aids in reducing PCB footprint while maintaining robust electrical characteristics. The high current gain (minimum hFE of 1000) ensures effective current amplification, compatible with standard TTL and CMOS logic levels for seamless integration with digital control circuits.

With a collector-emitter saturation voltage (VceSAT) max of 1.6 V, the ULN2002D1013TR provides efficient switching with minimal power loss. Its operating temperature range from -20°C to 85°C increases reliability across diverse environments including industrial automation, robotics, and PWM motor control.

This transistor array conforms to JEDEC JESD97 standards ensuring manufacturing quality and consistent performance for critical applications. It is widely used in applications requiring multiple high power transistor switches like relay drivers, lamp drivers, LCD and LED displays, and other inductive load controls.

Designed with 7 Darlington pairs for high current gain and switching. Supports maximum continuous collector current of 500 mA. Maximum collector emitter voltage rating of 50 V ensures robust performance. Standard logic level input compatible with TTL and CMOS interfaces.

Surface mount SOIC package with 16 pins optimizes board space. Minimum DC current gain (hFE) of 1000 provides effective amplification. Maximum collector emitter saturation voltage (VceSAT) of 1.6 V enhances efficiency. Operating temperature range from -20°C to 85°C for wide environmental application.

Complies with JEDEC JESD97 standard for reliability and quality.

Choose STMicroelectronics ULN2002D1013TR for durable, high-performance transistor arrays suitable for industrial, electronics manufacturing, automation, and control system applications. Explore more transistor solutions in the Semiconductor category at EnvMart.
