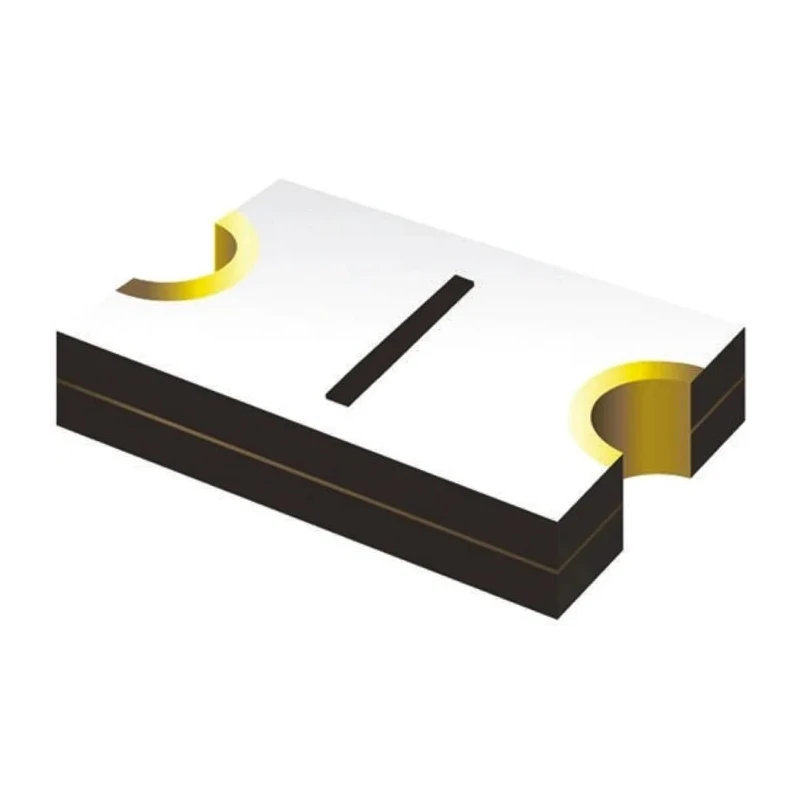

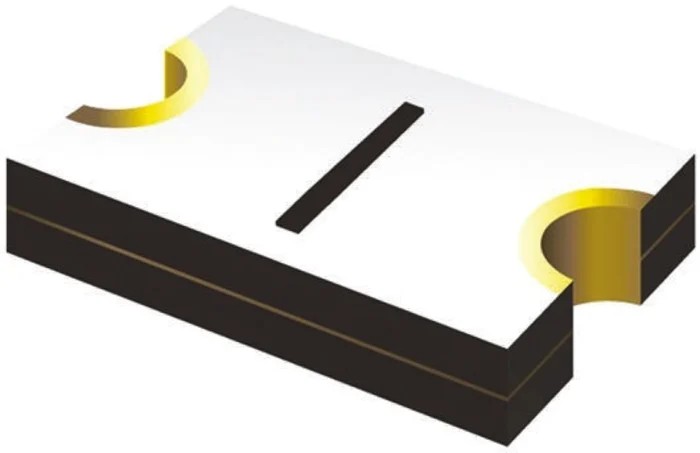

Bourns Resettable Fuse 0.2 A 9 V Surface Mount Technology 0603 Package MF-FSMF020X-2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 9V |
| Brand | Bourns |
| Height | 0.65mm |
| Length | 1.85mm |
| Model | MF-FSMF020X-2 |
| Width | 1.05mm |
| Current Rating | 40A |
| Series | MF-FSMF |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 0603 |
| Trip Current | 0.5A |
| Power Dissipation | 0.5W |
| Terminal Material | Gold Plated Nickel |
| Standards/Approvals | RoHS |
| Time to Trip | 0.6s |
| Hold Current | 0.2A |
| Minimum Resistance | 0.55Ω |
| Maximum Resistance | 3.5Ω |
Key Features
- Compact 0603 SMT package saves PCB space and allows for efficient mounting.
- Automatic resettable fuse switches from low to high resistance during fault conditions and resets when power is removed.
- Fast trip time of 0.6 seconds protects sensitive circuit components quickly.
- Gold plated nickel terminals provide reliable electrical connectivity.
- Wide operating temperature range from -40°C to 85°C enables use in diverse environments.
- Low power dissipation rating of 0.5 W ensures efficient energy use.
- Meets RoHS standards for environmental compliance.
- Typical applications include USB port protection, PC motherboards, mobile phones, PDAs, and digital cameras.
Product Description
Bourns MF-FSMF020X-2 resettable fuse is designed for protection of electrical and electronic circuits against excessive current conditions. It features a low profile 0603 surface mount technology package measuring 1.85 mm x 1.05 mm x 0.65 mm, suitable for compact PCB layouts.
With a nominal hold current of 0.2 A and trip current of 0.5 A, this fuse rapidly transitions to a high resistance state within 0.6 seconds when overload or short circuit occurs, protecting sensitive circuit components. The fuse automatically resets when the fault condition ceases and power is removed, allowing for thousands of maintenance-free cycles.
The gold plated nickel terminal material ensures robust soldering and long-term reliability. The fuse operates reliably in a temperature range from -40°C to 85°C with a power dissipation of 0.5 watts. Minimum and maximum resistance values are 0.55 ohms and 3.5 ohms respectively.
Typical applications include USB port protection, PC motherboards and other plug and play protection, mobile phone battery and port protection, PDAs, digital cameras, security systems, power supplies, automotive equipment, instrumentation, and telecommunications.
The product is supplied on a reel for ease of handling during automated PCB assembly. It complies with RoHS environmental standards, ensuring it meets current regulatory requirements.
Compact 0603 SMT package minimizes board space. Automatic resettable operation for overcurrent protection. Fast trip time protects sensitive components quickly. Gold plated nickel terminals for reliable solder joints. Wide operating temperature range suitable for varied environments.
Low power dissipation minimizes energy loss. RoHS compliant ensuring environmentally friendly design. Ideal for USB, PC motherboard, mobile and PDA applications. Reel packaging supports efficient manufacturing processes.
This resettable fuse is ideal for industrial, commercial, and consumer electronics manufacturing requiring reliable and compact circuit protection components. Browse more Bourns Resettable Fuses and related components at EnvMart for advanced electronic circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this resettable fuse is 0.2 A.
The trip current for this model is 0.5 A.
The maximum operating temperature of this fuse is 85°C.
This resettable fuse comes in a reel package type and has a size of 0603.
The time to trip for this fuse is 0.6 seconds during fault conditions.
The minimum resistance value is 0.55 ohms and the maximum resistance value is 3.5 ohms.
The power dissipation rating of this fuse is 0.5 W.
The terminals of this resettable fuse are made from gold plated nickel.
The minimum operating temperature of this model is -40°C.
Typical applications include USB port protection, PC motherboards, mobile phones, PDAs, and digital cameras.
The dimensions of this resettable fuse are 1.85 mm in length, 1.05 mm in width, and 0.65 mm in height.
Yes, this resettable fuse meets RoHS standards for environmental compliance.
