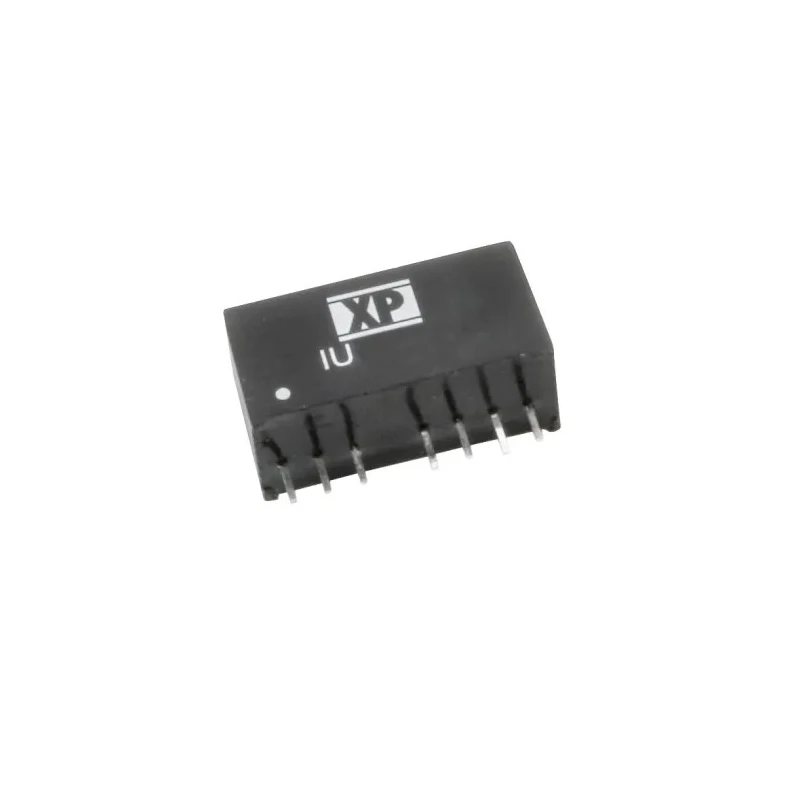

XP Power 5V DC 400mA Isolated DC-DC Converter 2W 18V-36V Input Through Hole IU2405SA

XP Power IU2405SA is a high-reliability isolated DC-DC converter designed for a broad range of commercial and industrial applications. This model provides a regulated 5V DC output at a current of 400mA, with a maximum output power of 2 watts. It features a wide input voltage range from 18V to 36V DC and supports through-hole mounting in a SIP package form factor.

With 1000 VDC isolation voltage and continuous short circuit protection, the IU2405SA ensures safety and operational stability in demanding environments. The converter's efficiency is rated at 77%, optimizing power usage and reducing thermal load.

This converter operates reliably over a wide temperature range from -40°C to 85°C, making it suitable for use in industrial controls, instrumentation, telecommunications, and other applications requiring compact and efficient DC power conversion.

The package dimensions are 21.85mm in length, 11.1mm in depth, and 9.2mm in width, enabling space-saving PCB layouts. Its high MTBF of 1,610,000 hours reflects superior manufacturing quality.

Isolated single output DC-DC converter with 1kV isolation voltage. 2:1 input range supports 18V to 36V DC input voltages. Through-hole mount SIP package ideal for reliable PCB assembly. Wide operating temperature range (-40°C to 85°C) for harsh environmental conditions.

Continuous short circuit protection increases device longevity. High reliability and long service life with MTBF of 1,610,000 hours. Efficiency rating of 77% to minimize energy loss and heat. Compact design supports space-constrained applications.

Manufactured in Taiwan, Province Of China, ensuring quality standards.

XP Power IU2405SA DC-DC converters are widely used in industrial automation, instrumentation, communication equipment, and other power-sensitive electronic designs requiring reliable isolated power conversion. Browse the Electronics & Electricals category on EnvMart for more DC/DC Converters from trusted brands.
