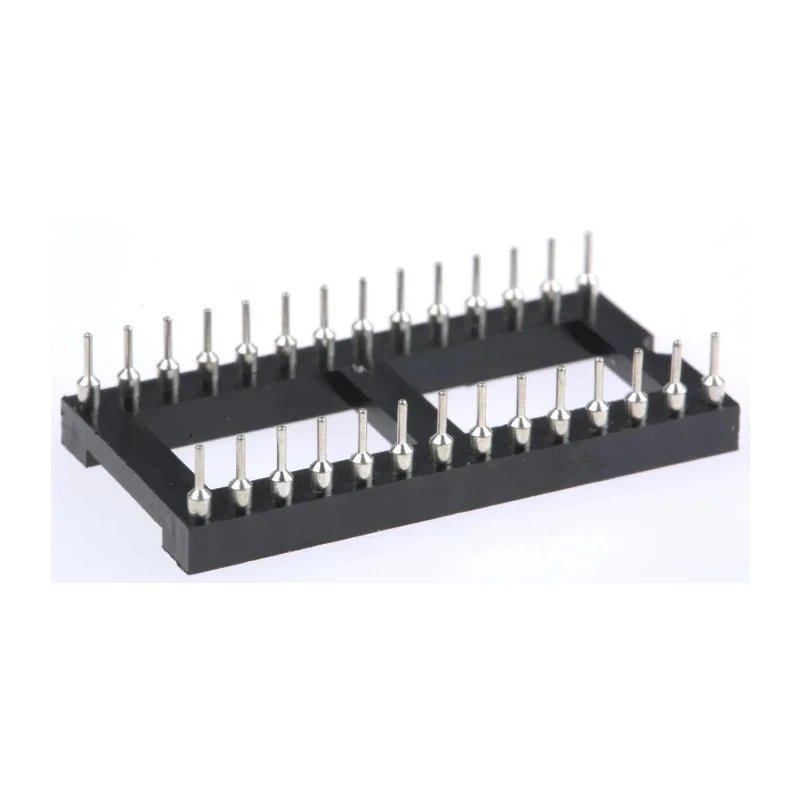

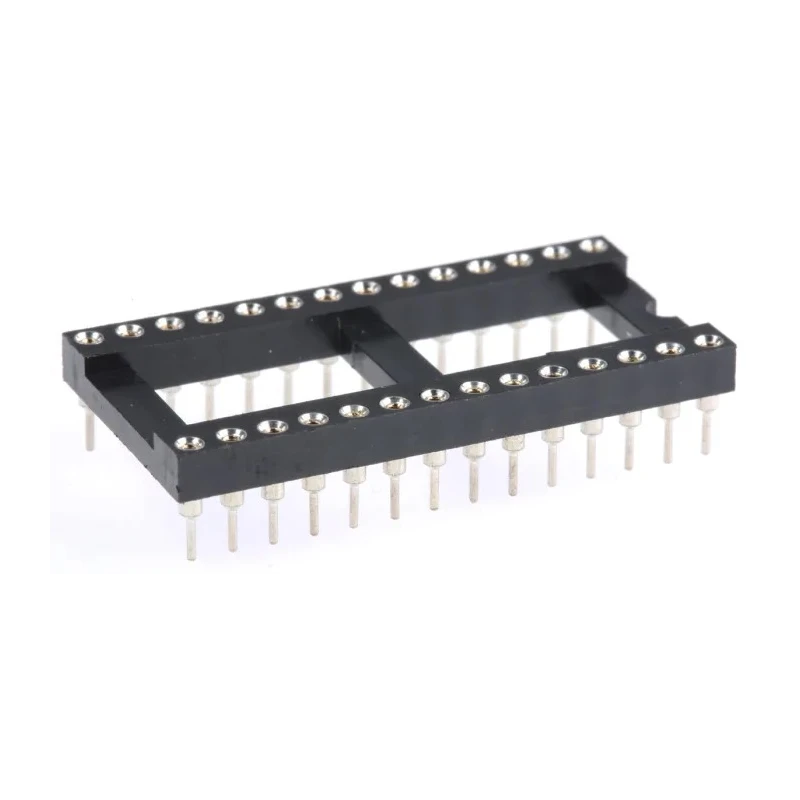

ASSMANN WSW 2.54 mm Pitch Vertical 28 Way Through Hole Turned Pin Open Frame DIL Socket 3A AR 28 HZL-TT
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V ac |
| Brand | ASSMANN WSW |
| Orientation | Vertical |
| Current | 3A |
| Frame Type | Open Frame |
| Length | 35.56mm |
| Model | AR 28 HZL-TT |
| Depth | 3mm |
| Width | 17.78mm |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass, Phosphor Bronze |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 28 |
| Pin Type | Turned |
| Row Width | 15.24mm |
Key Features
- This DIL socket features 28 contact points for robust connections.
- It uses turned pin contacts with tin plating for corrosion resistance.
- The open frame design facilitates easy mounting and cooling.
- Constructed with brass and phosphor bronze contacts ensuring durability.
- Housing material is high-quality black Polybutylene Terephthalate (PBT) with UL94V-0 rating.
- Designed for vertical mounting with a 15.24 mm row width and 17.78 mm width overall.
- Operates safely up to 105°C maximum temperature and withstands -40°C minimum.
- Termination type is solder ensuring strong and stable joints.
Product Description
ASSMANN WSW AR 28 HZL-TT is a 28 way vertical through hole DIL socket designed for electronic component connections in industrial and commercial electronic assemblies. This socket has a 2.54 mm pitch and supports a maximum current of 3 A, suitable for medium power applications.
The open frame design combined with turned pin contacts plated in tin offers improved durability and corrosion protection. Contacts are crafted from brass and phosphor bronze for excellent electrical conductivity and mechanical strength.
The socket’s housing is made from Polybutylene Terephthalate (PBT), rated UL94V-0 for flammability resistance, ensuring safety and longevity. The device is designed for vertical mounting on printed circuit boards using solder termination, simplifying installation.
Dimensions such as 35.56 mm length, 17.78 mm width, and 3 mm depth make it compact and space-efficient. Operating temperature range of -40°C to 105°C allows use in various environmental conditions.
This component is ideal for use in electronic equipment manufacturing, repair, prototyping, and industrial automation systems where reliable IC socket connections are critical. 28 contact points for reliable connectivity.
Turned pin contacts with tin plating for corrosion resistance. Open frame design for ventilation and easy installation. Durable brass and phosphor bronze contact materials. High-quality PBT housing with UL94V-0 rating. Vertical orientation for straightforward PCB assembly.
Operates within -40°C to 105°C temperature range. Solder termination for secure mounting. Compact dimensions with 2.54 mm pitch.
This ASSMANN WSW DIL Socket is a trusted solution in electronics components, meeting demanding industrial standards. For more options and similar products, explore the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This DIL socket supports a maximum current of 3 A, suitable for medium power applications.
The contacts in this model have a pitch of 2.54 mm, which is standard for DIL sockets.
The contacts are made from brass and phosphor bronze, providing excellent electrical conductivity and mechanical strength.
It operates safely within a temperature range of -40°C to 105°C, allowing for use in various environmental conditions.
This socket uses solder termination, ensuring strong and stable joints during installation.
The socket has dimensions of 35.56 mm in length, 17.78 mm in width, and 3 mm in depth, making it compact and space-efficient.
The housing is made from high-quality Polybutylene Terephthalate (PBT), which is rated UL94V-0 for flammability resistance.
This model is designed for vertical mounting on printed circuit boards.
It features 28 contact points, providing robust connections for electronic components.
The frame type is an open frame design, which facilitates easy mounting and cooling.
The country of origin for this DIL socket is China.
This socket uses turned pin contacts, which are plated in tin for corrosion resistance.
