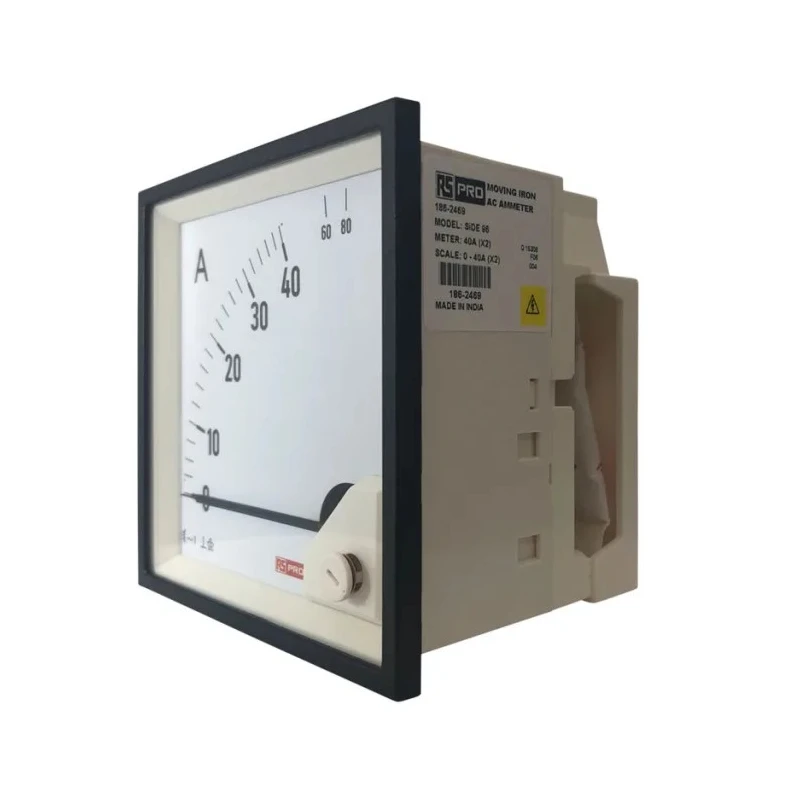

RS PRO Analogue Panel Ammeter AC 80 A, 92 mm x 92 mm, 1% Accuracy Moving Iron 186-2469

The RS PRO 186-2469 Analogue Panel Ammeter is a high-precision measurement instrument designed for AC current monitoring in industrial and control panel environments. Its moving iron mechanism ensures true RMS current readings, making it reliable in systems with varying waveforms and loads. The 1% meter accuracy and knife-edge pointer allow operators to obtain clear and accurate readings throughout the measurement range.

Engineered with a moulded polycarbonate square case measuring 92 mm x 92 mm cutout, this ammeter can be seamlessly integrated into machinery consoles, control panels, and switchgear. The device supports continuous overload up to twice the nominal current rating, providing durability during motor inrush or transient conditions without damage.

Operational from -10°C to 65°C, it is suitable for use in diverse industrial environments. The ammeter is shock resistant up to 15g pulse durations, enhancing its durability in applications with vibration and mechanical impact. A relative humidity rating of less than 75% annual average (non-condensing) further ensures stable operation.

This instrument complies with internationally recognized standards such as IEC 61010, IEC 529, VDE 0100-410, UL 94 V-0, and EMC and low voltage directives, demonstrating its quality and safety for industrial use.

Typical applications include monitoring AC current in process control systems, automation equipment, electrical panels, and machinery consoles. Its overload scale options (X2, X3, X5, or X6) allow measurement of motor start-up currents, making it valuable in motor control and maintenance tasks.

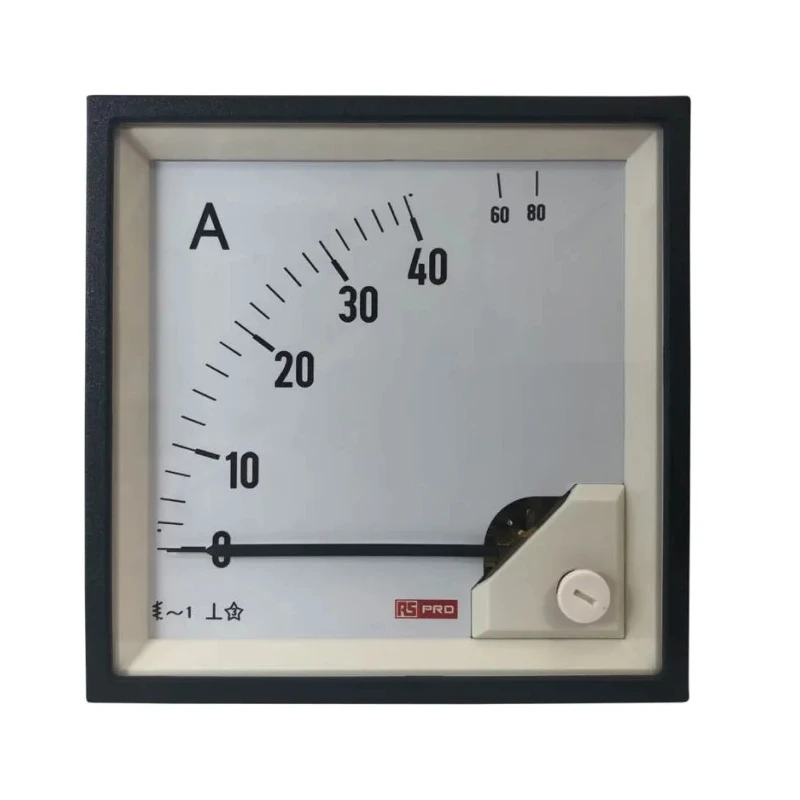

Measures AC current from 0 to 80 A with a calibrated scale down to 10%. Features a 92 mm x 92 mm cutout size suitable for panel mounting. Knife-edge type pointer provides sharp and accurate readings. Operating temperature range from -10°C to 65°C ensures reliable performance.

Constructed with a moulded polycarbonate case for durability and safety. Supports overload measurements up to 2 times nominal current continuously. Shock resistant to 15g pulse duration of 11 milliseconds for industrial robustness.

Certified to multiple standards including IEC 61010, VDE 0100-410:2018-10, and UL 94 V-0. Suitable for frequency ranges of 15Hz to 400Hz in various industrial and control applications. Explore more Analogue Panel Ammeters and industrial automation instruments at EnvMart.
