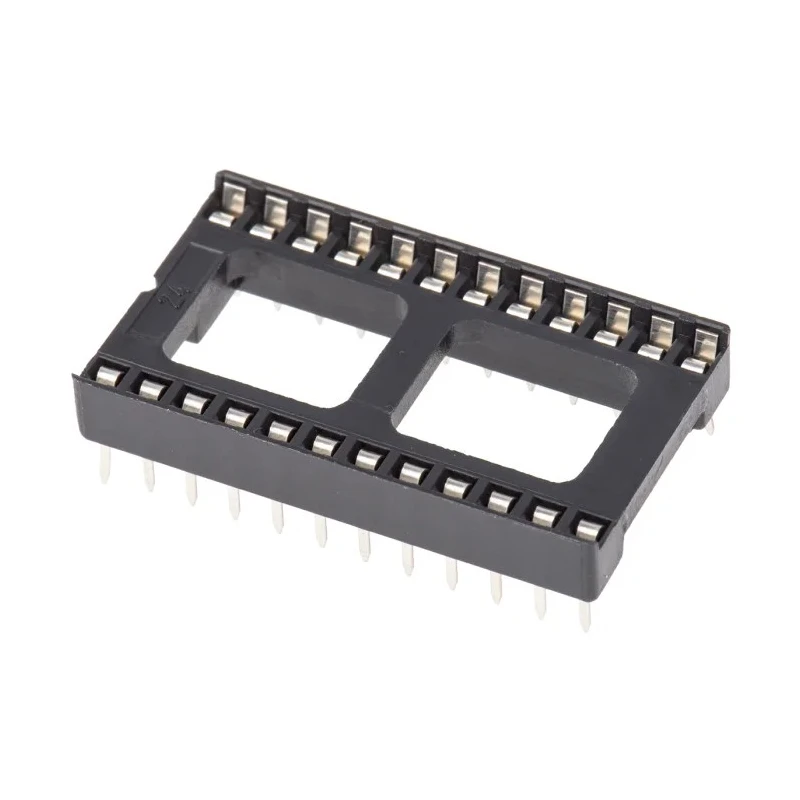

ASSMANN WSW 2.54 mm Pitch Vertical 24 Way Through Hole Stamped Pin Open Frame DIL Socket 1A A 24-LC-TT

ASSMANN WSW A 24-LC-TT vertical 24 way through hole DIL socket offers a reliable and durable solution for mounting integrated circuits on printed circuit boards. It features a standard 2.54 mm pitch suitable for many electronic component layouts. The socket is designed with stamped phosphor bronze contacts plated with tin, ensuring excellent conductivity and corrosion resistance.

The open frame design allows for easy visual inspection and soldering process monitoring. A black UL94V-0 Polybutylene Terephthalate housing provides high insulation and flame resistance. It is built for through-hole mounting, making it well-suited for robust industrial, construction, and manufacturing electronics assembly.

Operating parameters include a voltage rating of 60V AC and a current rating of 1 amp. The socket sustains a wide temperature range from -55 to 85 degrees Celsius, ensuring performance stability in challenging environmental conditions. Its compact form factor measures 30.48 mm in length, 17.78 mm in width, and 5.1 mm in depth, compatible with standard 24 pin IC devices.

This product is manufactured in Taiwan, Province Of China, reflecting high production standards and quality assurance. Typical industrial uses include electronic device manufacturing, PCB assembly, repair, and prototyping applications where secure, reliable IC connection is critical.

Features 24 contacts arranged in a single row for vertical mounting. Constructed with a black UL94V-0 rated Polybutylene Terephthalate housing for insulation. Phosphor bronze contacts with tin plating for reliable electrical connectivity.

Designed for through-hole solder termination with a contact pitch of 2.54 mm. Suitable for PCB mounting with open frame construction enhancing easy visual inspection. Operates at voltage up to 60V AC with 1 amp current rating.

Temperature range from -55°C to 85°C ensures durability under varied conditions. Compact dimensions of 30.48 mm length, 17.78 mm width, and 5.1 mm depth. Ideal for use in electronic and industrial applications requiring robust IC socket solutions.

Made in Taiwan, Province Of China. Explore the full range of DIL Sockets and electronic components at EnvMart for your industrial and laboratory requirements.
