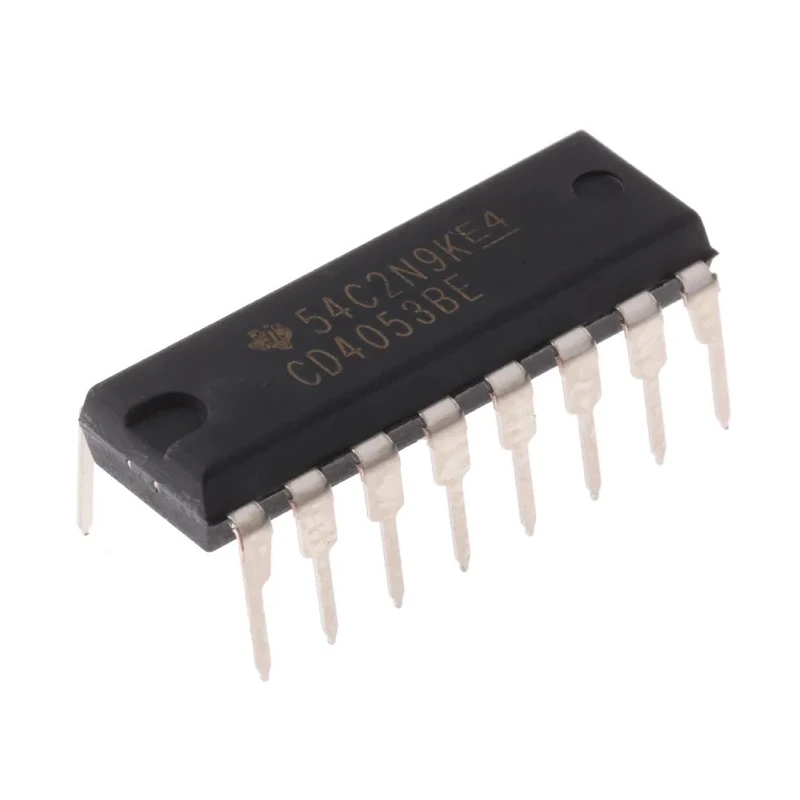

Texas Instruments Multiplexer/Demultiplexer 3 CMOS Triple, 16-Pin PDIP CD4053BE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | CD4053BE |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Output type | CMOS |
| Series | CD4053B |
| Configuration | Triple |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 16 |
| Number of Elements per Chip | 3 |
| Maximum Supply Voltage | 20V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -0.5V |
| Wide operating voltage range | 3 to 18V |
| Multiplexer/Demultiplexer | Multiplexer, Demultiplexer |
| Maximum On State Resistance | 550Ω |
Key Features
- Features a triple 3-channel CMOS multiplexer/demultiplexer configuration.
- Operates with a supply voltage range from 3V to 18V.
- Comes in a 16-pin PDIP package suitable for through-hole mounting.
- Maximum on-state resistance of 550 ohms for efficient switching.
- Operating temperature range from -55°C to 125°C for reliable use in diverse environments.
- Compatible with the 4000 series CMOS logic family for broad application.
- Has a pin count of 16 with 3 elements per chip for multiple signal routing.
- Output type is CMOS ensuring low power consumption and noise.
Product Description
Texas Instruments CD4053BE is a 3-channel CMOS triple multiplexer/demultiplexer designed in a 16-pin PDIP package, making it suitable for through-hole mounting and various electronic circuit applications. This component belongs to the 4000 series CMOS logic family known for versatile digital logic solutions.
It features a wide operating voltage range from 3V to 18V and supports minimum supply voltages as low as -0.5V, along with a maximum supply voltage of 20V, ensuring stable performance in numerous operating conditions.
The device exhibits a maximum on-state resistance of 550 ohms, which aids efficient signal transmission and switching. With a pin count of 16 and three functional elements integrated per chip, it supports complex multiplexing and demultiplexing needs in logic circuits.
The CD4053BE is rated for operation over a wide temperature range from -55°C to 125°C, making it suitable for industrial, laboratory, and general electronic manufacturing environments. While it does not hold automotive standard certification, it is widely used in digital signal routing applications where multiplexers or demultiplexers are required.
The robust construction and standard PDIP package height of 4.57mm, length of 19.3mm, and width of 6.35mm provide compatibility with many prototyping boards and production assemblies. This allows for efficient insertion and reliability in electronic product manufacturing and repair.
Features a triple 3-channel CMOS multiplexer/demultiplexer configuration. Operates with a wide voltage range for flexible applications. Standard 16-pin PDIP package for straightforward through-hole mounting. Low on-state resistance enhances signal integrity.
Wide operating temperature range expands usability. Compatible with 4000 series CMOS logic family components. Ideal for industrial and laboratory electronics applications. Supports complex signal routing with three elements on one chip.
Delivers consistent performance across diverse power supply voltages.
This Texas Instruments CD4053BE Multiplexer/Demultiplexer is a key component in electrical engineering projects requiring reliable and efficient digital signal handling. It serves important functions in multiplexing or demultiplexing data pathways in embedded systems, instrumentation, and communication devices.
Find more components in the Semiconductor category or explore other Texas Instruments products on EnvMart for advanced electronic and industrial solutions.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range from 3V to 18V, with a maximum supply voltage of 20V and a minimum supply voltage of -0.5V.
The maximum on-state resistance is 550 ohms, which supports efficient signal transmission and switching.
It operates over a wide temperature range from -55°C to 125°C, suitable for various environmental conditions.
The CD4053BE comes in a 16-pin PDIP package, which is suitable for through-hole mounting.
This model features three functional elements per chip, allowing for complex multiplexing and demultiplexing.
It is compatible with the 4000 series CMOS logic family, making it versatile for various digital applications.
The dimensions are 4.57mm in height, 19.3mm in length, and 6.35mm in width.
This model provides a CMOS output type, which ensures low power consumption and reduced noise.
It supports through-hole mounting, making it suitable for various prototyping and production applications.
It is widely used in digital signal routing applications where multiplexers or demultiplexers are required.
The triple configuration allows for multiple signal routing capabilities, enhancing its functionality in complex circuits.
The country of origin for this component is India.
