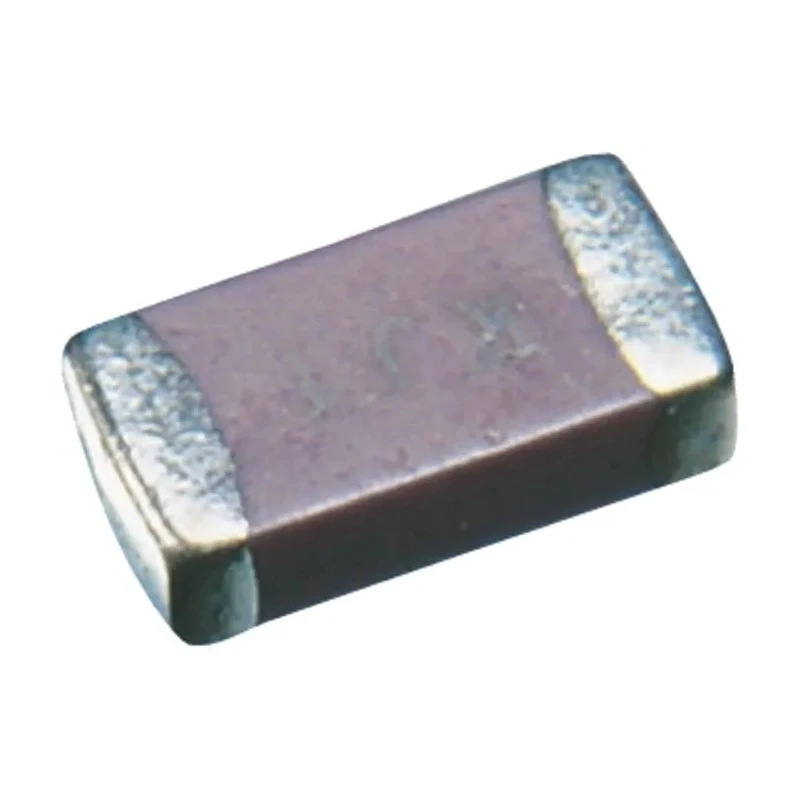

Vishay 2.2 nF Multilayer Ceramic Capacitor 500V DC ±10% X7R Surface Mount 1206 VJ1206Y222KXEAC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V dc |
| Brand | Vishay |
| Height | 1.7mm |
| Length | 3.2mm |
| Model | VJ1206Y222KXEAC |
| Packaging | 7 in Reel/Paper Tape |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | VJ |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 150°C |
| Tolerance | ±10 % |
| Capacitance | 2.2nF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, IEC 61249-2-21, JEDEC JS709A |
| Package/Case | 1206 |
| Dielectric | X7R |
| Suppression Class | X7R |
Key Features
- Capacitance of 2.2 nF provides reliable performance for filtering and decoupling.
- X7R dielectric ensures temperature stability and durability.
- 1206 package size is ideal for automated pick and place assembly.
- Tolerance of ±10% allows consistent capacitance values for precision circuits.
- Surface mount termination supports compact PCB layouts.
- Temperature operating range from -55°C to 150°C for industrial use.
- Complies with RoHS and IEC 61249-2-21 standards ensuring quality and safety.
- VJ series designed for high voltage handling in snubber and surge suppression applications.
Product Description
Vishay VJ1206Y222KXEAC is a 2.2 nF multilayer ceramic capacitor rated for 500V DC operation with a tolerance of ±10% and X7R dielectric material, designed for surface mount technology applications. This 1206 case size capacitor offers robust electrical characteristics making it suitable for industrial, automotive, and commercial electronic circuits where high voltage and temperature stability are required.
The VJ series capacitors provide high voltage handling capabilities and are ideal for snubber and surge suppression circuits. The X7R dielectric classifies this capacitor as temperature stable, ensuring reliable performance over a wide temperature range from -55°C to 150°C. Its surface mount termination type supports efficient manufacturing in automated assembly lines.
Compliant with RoHS directives and IEC 61249-2-21 and JEDEC JS709A standards, the product meets strict quality and environmental requirements. The compact 1206 package size with physical dimensions of 3.2 mm length, 1.6 mm width, and 1.7 mm height makes this capacitor suitable for high density PCB layouts.
Applications span industrial automation systems, electronic equipment, power supply filters, and surge protection circuits. This capacitor ensures electrical stability, noise reduction, and increased circuit longevity across various demanding environments.
Capacitance of 2.2 nF provides reliable noise filtering and energy storage. Voltage rating of 500V DC suitable for medium to high voltage applications. Temperature stable X7R dielectric allows consistent performance. 1206 package fits automated surface mount assembly processes.
Wide operating temperature range from -55°C to 150°C supports harsh conditions. RoHS and IEC 61249-2-21 compliant for regulatory requirements. Ideal for surge suppression and snubber circuits in industrial systems. Compact dimensions enable use in space-constrained PCB designs.
Explore more Vishay electronic components and Multilayer Ceramic Capacitors on EnvMart for reliable industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 2.2 nF, providing reliable performance for filtering and decoupling applications.
It is rated for a maximum voltage of 500V DC, making it suitable for medium to high voltage applications.
The physical dimensions of this capacitor are 3.2 mm in length, 1.6 mm in width, and 1.7 mm in height.
This model uses X7R dielectric material, which ensures temperature stability and durability.
The tolerance for this model is ±10%, allowing for consistent capacitance values in precision circuits.
It supports surface mount termination, which is ideal for compact PCB layouts and automated assembly processes.
It complies with RoHS directives, IEC 61249-2-21, and JEDEC JS709A standards, ensuring quality and safety.
This capacitor is packaged in a reel/paper tape format, facilitating easy handling and assembly.
The X7R dielectric classifies this capacitor as temperature stable, ensuring reliable performance over a wide temperature range.
The country of origin for this capacitor is India.
