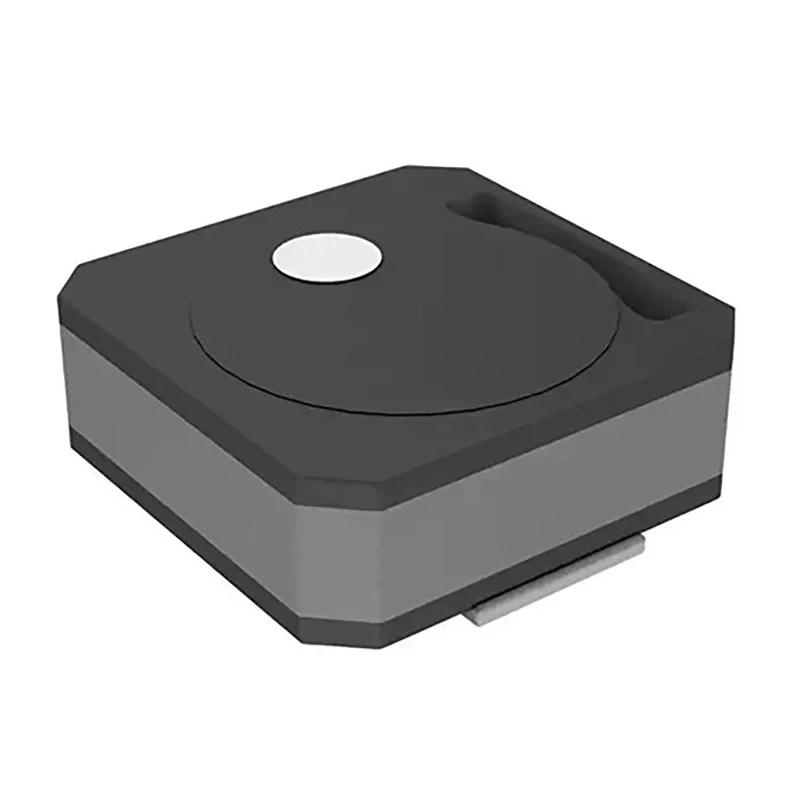

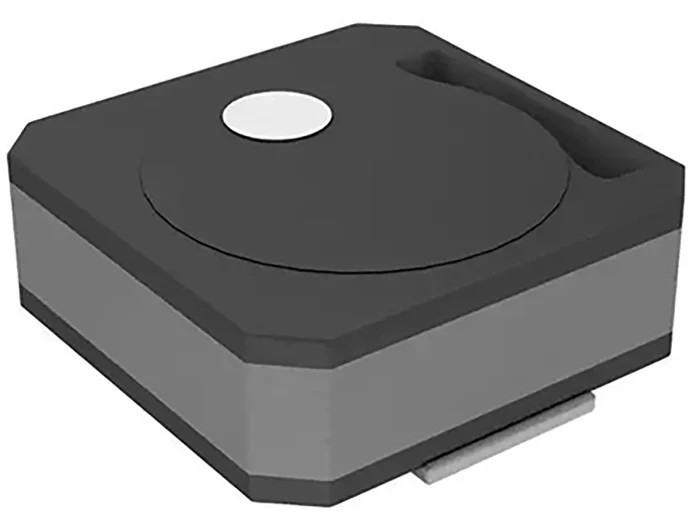

TDK Shielded Wirewound Surface Mount Inductor 100 μH ±20/±30% 520 mA DC Current 5020 Case VLCF5020T-101MR27
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 5.3mm |
| Model | VLCF5020T-101MR27 |
| Depth | 5mm |
| Packaging | Taping |
| Series | VLCF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | RoHS |
| Package/Case | 5020 |
| Maximum DC Current | 520mA |
| Maximum DC Resistance | 1.581Ω |
| Inductance Tolerance | ±20/±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- This surface mount inductor features a compact 5020 case size for space-saving PCB designs.
- It includes magnetic shielding to reduce electromagnetic interference for reliable operation.
- The ferrite core and wirewound construction provide high performance in power circuits.
- Inductor is suitable for portable DC to DC converters and power source circuits in devices like HDDs, DVCs, and DSCs.
- Operating temperature ranges from -40°C to a maximum of 105°C ensuring durability in various environments.
- Packaging uses taping for efficient automated assembly processes.
- This component meets RoHS standards, assuring compliance with environmental regulations.
Product Description
TDK VLCF5020T-101MR27 shielded wirewound surface mount inductor with a ferrite core features 100 μH inductance with a tolerance of ±20 to ±30% and a maximum DC current capacity of 520 mA. Designed in a compact 5020 package case measuring 5.3 mm in length, 5 mm depth, and 2 mm height, it is an ideal choice for space-constrained power circuits requiring reliable inductance with minimized electromagnetic interference.
The inductor's magnetic shield construction enhances performance by reducing electromagnetic emissions and susceptibility. The wirewound construction with a ferrite core offers stable inductance characteristics beneficial for portable and embedded power supply applications such as DC to DC converters for mobile devices including hard disk drives (HDDs), digital video cameras (DVCs), and digital still cameras (DSCs). It is also suited for LCD displays and other compact electronics requiring power source inductors.
Capable of operating within a wide temperature range from -40°C to 105°C, this component ensures durability in industrial, commercial, and consumer electronics environments. The maximum DC resistance of 1.581 Ω supports efficient power management with minimal losses. Packaging in taping format allows for seamless pick-and-place assembly in automated manufacturing lines.
This inductor is RoHS-compliant, confirming adherence to environmental and safety standards. The product is categorized under Surface Mount Inductors typically used in electronics and electrical component assemblies. The VLCF series from TDK is recognized for magnetically shielded wire wound chokes designed for professional power circuit applications.
Common industrial uses include electronic devices in telecommunications, computing, automotive electronics, and power supply circuits requiring EMI noise reduction. Explore additional components and tools at EnvMart to optimize your electronics manufacturing and design projects with trusted quality and specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 100 μH with a tolerance of ±20/±30%.
The maximum DC current capacity of this inductor is 520 mA.
The 5020 case measures 5.3 mm in length, 5 mm in depth, and 2 mm in height.
It can operate within a temperature range from -40°C to a maximum of 105°C.
This inductor features a wirewound construction with a ferrite core, providing stable inductance characteristics.
The inductor is packaged using taping, which facilitates efficient automated assembly processes.
It is RoHS-compliant, confirming adherence to environmental and safety standards.
This model is suitable for portable DC to DC converters and power source circuits in devices like HDDs, DVCs, and DSCs.
The maximum DC resistance is 1.581 Ω, which supports efficient power management.
The core material of this inductor is ferrite, which contributes to its performance in power circuits.
This inductor belongs to the VLCF series, known for magnetically shielded wire wound chokes.
Common uses include electronic devices in telecommunications, computing, automotive electronics, and power supply circuits.
