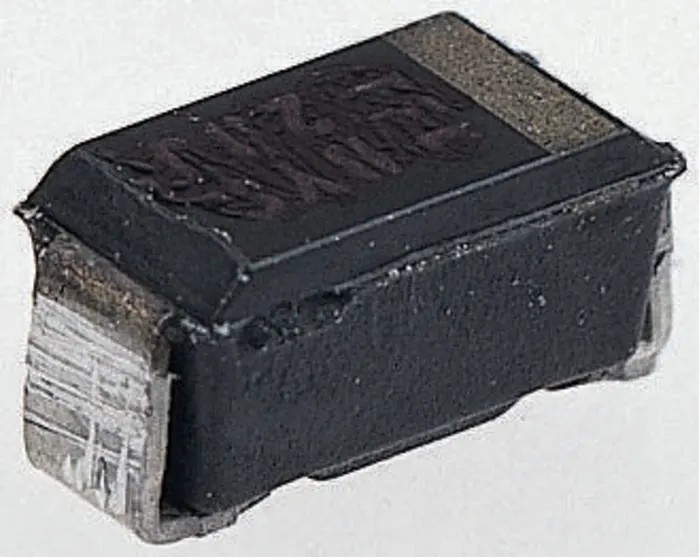

Vishay Schottky Diode 30 V 1 A Surface Mount DO-214AA VS-10BQ030-M3/5BT

Free Delivery in India | Lowest Global Shipping Charges

Vishay Schottky Diode 30 V 1 A Surface Mount DO-214AA VS-10BQ030-M3/5BT

Name: Vishay Schottky Diode 30 V 1 A Surface Mount DO-214AA VS-10BQ030-M3/5BT
Brand: Vishay
SKU: 123454
Price: 0.22 USD
Availability: InStock



Category Schottky Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	4.57mm
Brand	Vishay
Height	3.94mm
Length	4.7mm
Model	VS-10BQ030-M3/5BT
Width	3.8mm
Mount Type	Surface
Series	VSX
Maximum Operating Temperature	150°C
Package Type	DO-214AA
Minimum Operating Temperature	-55°C
Pin Count	2
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	500μA
Peak Non-Repetitive Forward Surge Current Ifsm	430A
Maximum Forward Voltage Vf	440mV

Key Features

This Schottky diode features a maximum continuous forward current of 1 ampere.
It has a peak reverse repetitive voltage of 30 volts ensuring robust voltage handling.
Designed with a low forward voltage drop of 440 millivolts to improve power efficiency.
The package type is DO-214AA which supports surface mounting for compact circuits.
Operating temperature ranges from -55°C to a maximum of 150°C for reliable performance under extreme conditions.
The diode exhibits a peak non-repetitive forward surge current of 430 amperes for transient handling.
It has a 2 pin count configuration suitable for single diode applications.
Pin diameter and compact dimensions facilitate easy mounting on PCBs.

Product Description

Vishay VS-10BQ030-M3/5BT is a high performance Schottky diode designed for electronic and power semiconductor applications. This diode features a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage rating of 30 volts, packaged in a compact DO-214AA surface mount type. It delivers excellent performance with a low forward voltage drop of 440 millivolts, which helps reduce power dissipation and increase efficiency in circuits.

Designed for surface mounting, this Schottky diode is ideal for fast switching applications requiring minimal power loss. It operates reliably over a wide temperature range from -55°C up to 150°C, making it suitable for use in industrial, electronic, communication, and power supply systems. The diode’s peak non-repetitive forward surge current of 430 amperes ensures it can handle transient surges effectively.

With a 2-pin configuration and compact physical dimensions - length of 4.7 mm, width of 3.8 mm, and height of 3.94 mm - it is optimized for modern PCB layouts. Although it does not carry specific automotive standards or certifications, its robust specifications ensure reliable use in various electronics and semiconductor applications.

This diode supports high-speed switching with very low forward voltage drop. It reduces power loss and improves circuit efficiency. Suitable for industrial and commercial electronic devices requiring Schottky rectifiers.

Compact DO-214AA package facilitates surface mounting on PCBs. Wide operating temperature range suits harsh environmental conditions. The product is new and made to Vishay’s high quality standards.

For engineers and designers seeking reliable and efficient Schottky diodes, the Vishay VS-10BQ030-M3/5BT offers an ideal solution with proven performance and quality. Browse the Electronics & Electricals > Semiconductor > Schottky Diodes & Rectifiers category at EnvMart for more options and technical products.
