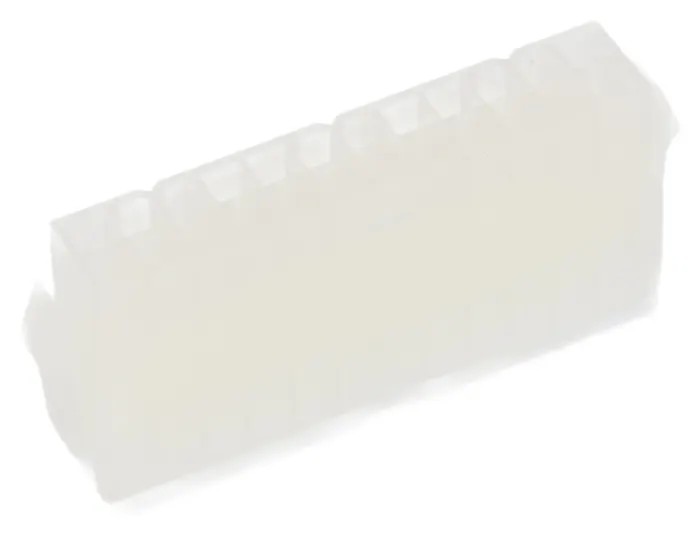

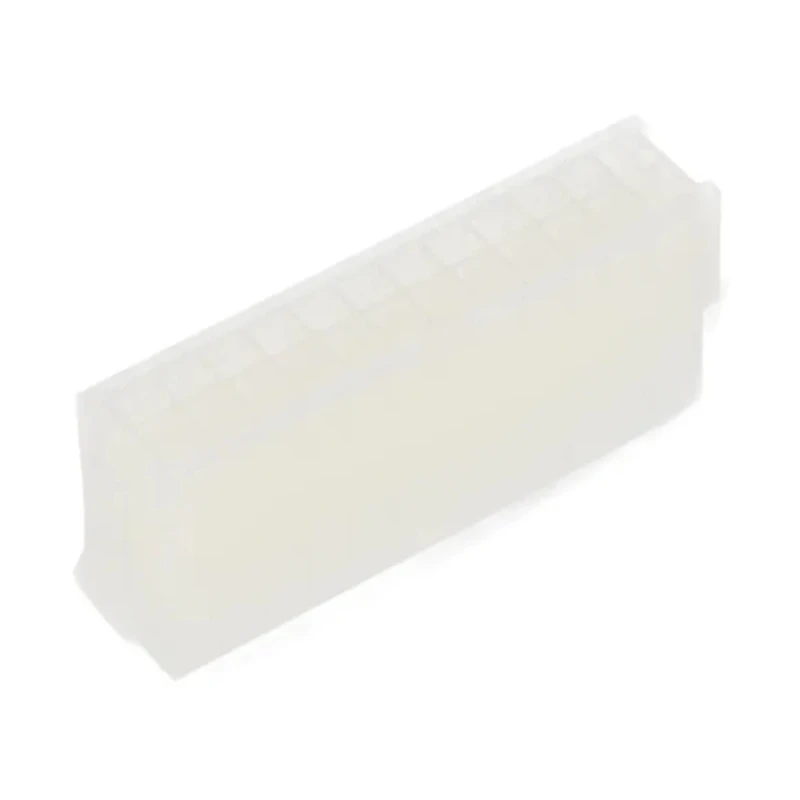

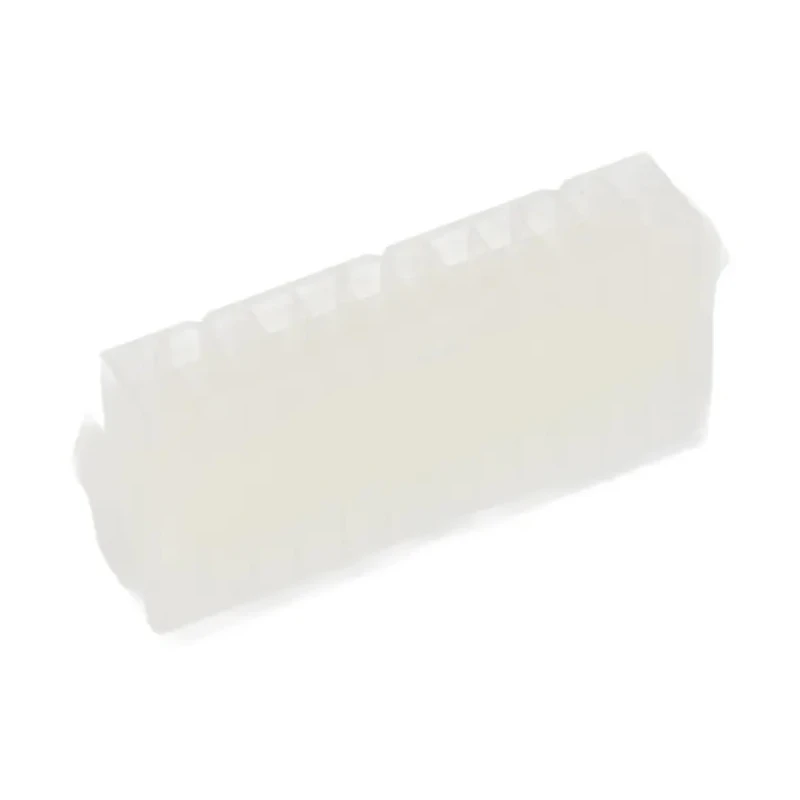

Molex Mini-Fit Female Connector Housing 4.2 mm Pitch 24 Way 2 Row Straight 39-01-2241
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 57mm |
| Width | 23.9mm |
| Mount Type | Panel |
| Housing Material | Nylon |
| Series | Mini-Fit |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| For Use With | 5558, 30490 Male Terminal |
| Number of Contacts | 24 |
| Connector Gender | Female |
Key Features
- Constructed from tough nylon resin for non-conductive and abrasion-resistant performance.
- Supports up to 13A current per contact, suitable for high power applications.
- Operates reliably in temperatures from -40°C to +105°C without degradation.
- Features flame-retardant material preventing ignition during fire incidents.
- Designed with an audible click to confirm secure mating and prevent accidental disconnection.
- Polarization and keying mechanisms prevent mismating and misalignment.
- Compatible with 5558 and 30490 male terminals for versatile connectivity.
- Compact dimensions of 57 mm length and 23.9 mm width for space-constrained assemblies.
Product Description
Molex 39-01-2241 Mini-Fit Female Connector Housing is a high-quality female connector housing designed for panel mount applications offering dependable electrical performance. It features a 4.2 mm pitch and accommodates 24 contacts arranged in two rows, providing organized and secure connections.
Manufactured from abrasion-resistant nylon resin, the housing is non-conductive and engineered to operate reliably in harsh conditions ranging from -40°C to +105°C. Its flame-retardant properties comply with safety requirements, minimizing fire risks.
This connector housing supports a maximum current of 13A per circuit, making it suitable for demanding electronic assemblies including automotive manufacturing, electronic control systems, and gaming equipment. The design incorporates polarization and keying features that prevent mismating and ensure precise alignment.
The positive locking mechanism emits an audible click upon mating, assuring a secure lock that resists disconnection during vibration or shock. Compatibility with 5558 and 30490 male terminals provides flexibility in wire-to-wire and wire-to-board configurations.
Compact dimensions of 57 mm length and 23.9 mm width facilitate installation in limited spaces while maintaining robust connections. Molex Mini-Fit connector housings offer design flexibility, durability, and optimal electrical performance in industrial, automotive, and commercial electronic applications.
Constructed from tough nylon resin for abrasion resistance and electrical insulation. Supports up to 13 amps current per contact for high power circuits. Operating temperature range from -40°C to +105°C for reliability in diverse environments.
Flame-retardant UL94V-0 or UL94V-2 housing material enhances fire safety. Polarization and keying to prevent incorrect mating and misalignment. Positive locking mechanism with audible click ensures secure connection. Compatible with standard Mini-Fit and Mini-Fit Plus crimp terminals.
Suitable for automotive, electronic control modules, gaming, and other demanding applications. Explore more high performance Connector Housings from our extensive Molex product range at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector housing supports a maximum current of 13A per contact, making it suitable for high power applications.
It operates reliably in temperatures ranging from -40°C to +105°C without degradation.
The housing is constructed from tough nylon resin, which is non-conductive and abrasion-resistant.
It features a positive locking mechanism that emits an audible click upon mating, confirming a secure connection and preventing accidental disconnection.
The dimensions are 57 mm in length and 23.9 mm in width, making it compact for space-constrained assemblies.
It is compatible with 5558 and 30490 male terminals, allowing for versatile connectivity options.
The housing is made from flame-retardant material, complying with safety requirements to minimize fire risks during incidents.
This model accommodates 24 contacts arranged in two rows, providing organized and secure connections.
Yes, it is designed specifically for panel mount applications, ensuring dependable electrical performance.
The pitch size is 4.2 mm, which is standard for Mini-Fit series connectors.
It is suitable for demanding electronic assemblies, including automotive manufacturing, electronic control systems, and gaming equipment.
It includes polarization and keying mechanisms that prevent mismating and misalignment during installation.
