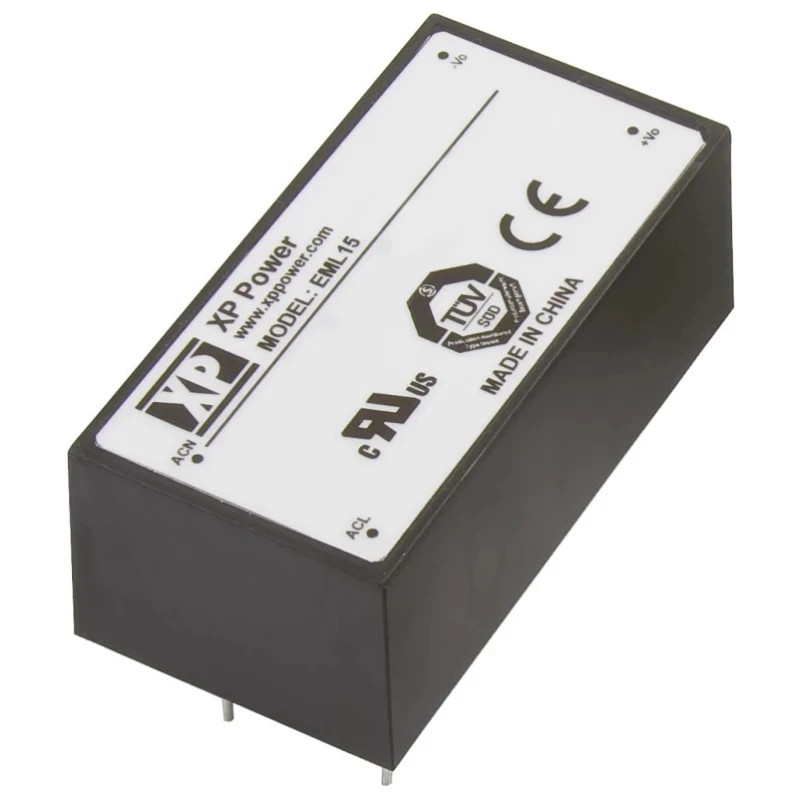

XP Power EML15US15-E Switching Power Supply 15V DC 15W PCB Mount Medical Grade EML15 Series

XP Power EML15US15-E switching power supply offers a reliable and compact AC-DC conversion solution designed primarily for medical and industrial equipment. It delivers a stable 15V DC output voltage at a power rating of 15 watts through a single output line, suitable for PCB mounting applications.

This product belongs to the EML15 series known for medical-grade safety compliance, including ANSI/AAMI ES 60601-1, EN 60601-1/A12, and IEC 60601-1 standards. Its Class II design ensures proper insulation and safety without requiring earth grounding, making it optimal for sensitive medical environments.

The power supply supports a wide input voltage range from 85V AC to 264V AC and provides a single output current of 1 ampere. It operates efficiently at 80% efficiency, minimizing heat loss and energy consumption. Suitable for applications requiring a stable power source in challenging ambient temperatures, it functions reliably between -20°C and 70°C.

Physically, the EML15US15-E has a compact footprint with dimensions measuring 65mm in length, 33.3mm in width, and 24.4mm in depth, weighing approximately 90 grams. This makes it ideal for installations where space constraints are critical.

Additional features include a 130% peak load capability for 30 seconds, enhancing its durability during transient power demands, and a robust encapsulated design to protect against environmental factors.

This switching power supply is widely applicable in the medical, laboratory, industrial, and electronic equipment sectors, providing efficient power conversion with established safety and performance certifications.

Single output with 15V DC voltage and 1A current capacity. Compliance with medical safety standards including ANSI/AAMI ES 60601-1 and IEC 60601-1. Wide operating temperature range from -20°C to 70°C. High efficiency of 80% reduces power wastage.

Compact size and light weight for easy PCB mounting. Wide input voltage compatibility from 85V AC to 264V AC. Class II insulation design suitable for medical applications. EML15 series provides a robust and reliable power supply solution.

Peak load capacity of 130% for 30 seconds enhances safety and performance. Manufactured in China with quality control adherence. Explore more Switching Power Supplies and power-related components on EnvMart for industrial and commercial applications.
