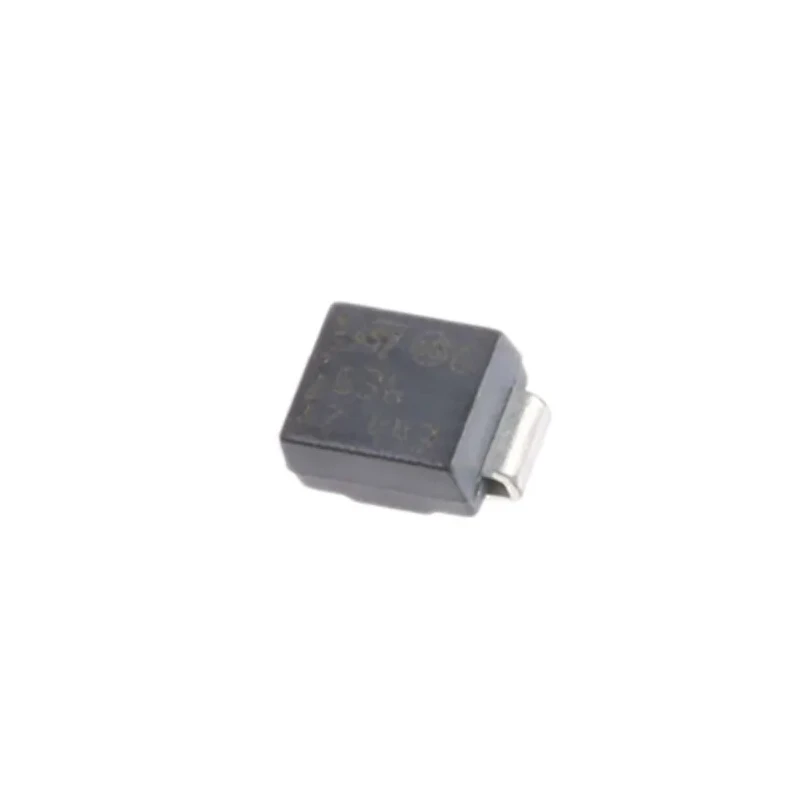

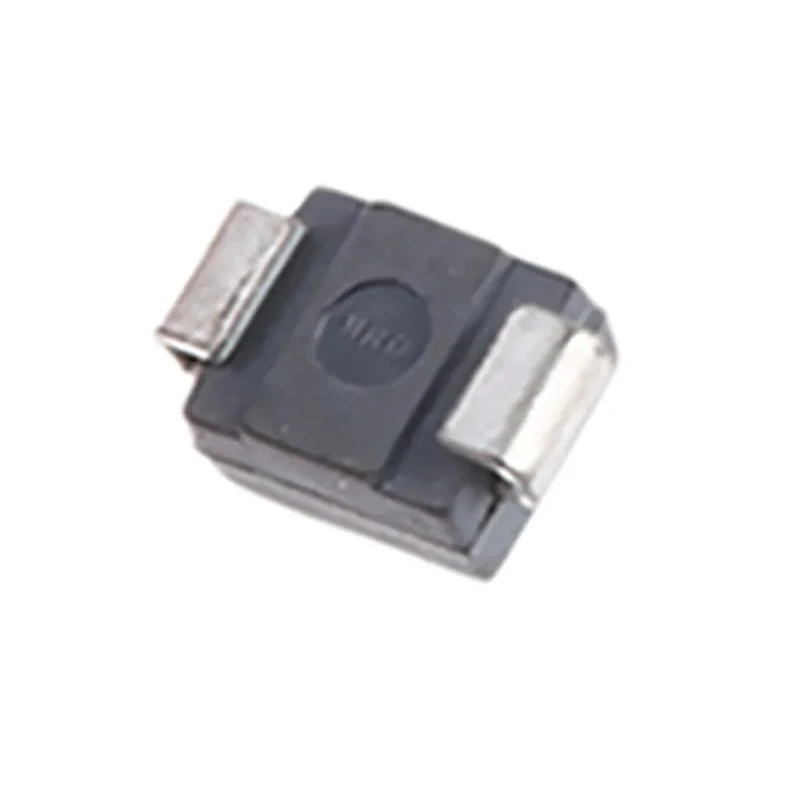

STMicroelectronics 60 V 3 A Schottky Barrier Diode Surface Mount DO-214AA Package STPS3L60U
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | STPS3L60U |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | STPS3L60 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 150μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 0.53V |
Key Features
- Schottky Barrier Diode type optimized for low forward voltage drop.
- Surface mount package type DO-214AA for easy PCB assembly.
- Maximum continuous forward current is 3 Amperes.
- Peak reverse repetitive voltage rated at 60 Volts.
- Peak non-repetitive forward surge current capacity up to 100 Amperes.
- Operating temperature range from -65°C to 150°C.
- Compact dimensions with length 4.6 mm, width 3.95 mm, and height 2.45 mm.
- Pin count of 2 for efficient circuit integration.
Product Description
STMicroelectronics STPS3L60U is a high-performance Schottky Barrier Diode designed for power management and protection applications. Featuring a surface mount DO-214AA package, it supports a maximum continuous forward current of 3A and a peak reverse repetitive voltage of 60V, making it suitable for reliable rectification in switching power supplies, free wheeling diode circuits, and polarity protection.
This diode offers a low forward voltage drop of just 0.53V, which helps in minimizing conduction losses and improving overall circuit efficiency. Its robust design supports peak non-repetitive forward surge currents of up to 100A, ensuring durability under transient conditions.
With an operating temperature range from -65°C up to 150°C, this device is capable of stable operation in demanding industrial environments. The compact dimensions (4.6 mm length, 3.95 mm width, 2.45 mm height) and two-pin configuration facilitate easy integration into modern PCBs.
This component is ideal for use in industrial power electronics, telecommunications equipment, automotive electronics (non-automotive standard compliant), and consumer electronics for efficient rectification and voltage clamping.
Low forward voltage drop for high efficiency. Compact surface mount package DO-214AA. Wide operating temperature range for diverse environments. High surge current capacity improves robustness. Reliable Schottky diode configuration for fast switching.
Suitable for industrial, telecommunications, and consumer electronics applications. Explore similar Schottky diodes and rectifiers for enhanced power management solutions at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 3 Amperes.
The peak reverse repetitive voltage rating is 60 Volts.
This model has dimensions of 4.6 mm in length, 3.95 mm in width, and 2.45 mm in height.
The operating temperature range is from -65°C to 150°C.
The peak non-repetitive forward surge current capacity is up to 100 Amperes.
It uses a surface mount package type DO-214AA.
The diode has a pin count of 2 for efficient circuit integration.
The maximum forward voltage drop is 0.53 Volts.
This diode is suitable for industrial power electronics, telecommunications equipment, automotive electronics, and consumer electronics.
It features a single diode configuration.
The peak reverse current is 150μA.
The low forward voltage drop of 0.53V helps minimize conduction losses and improve overall circuit efficiency.
