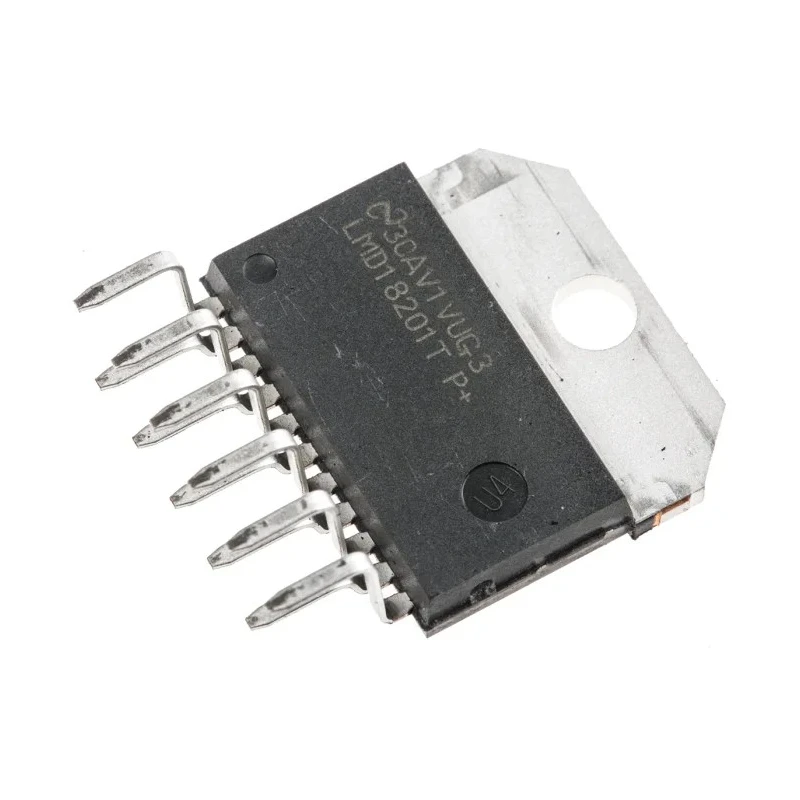

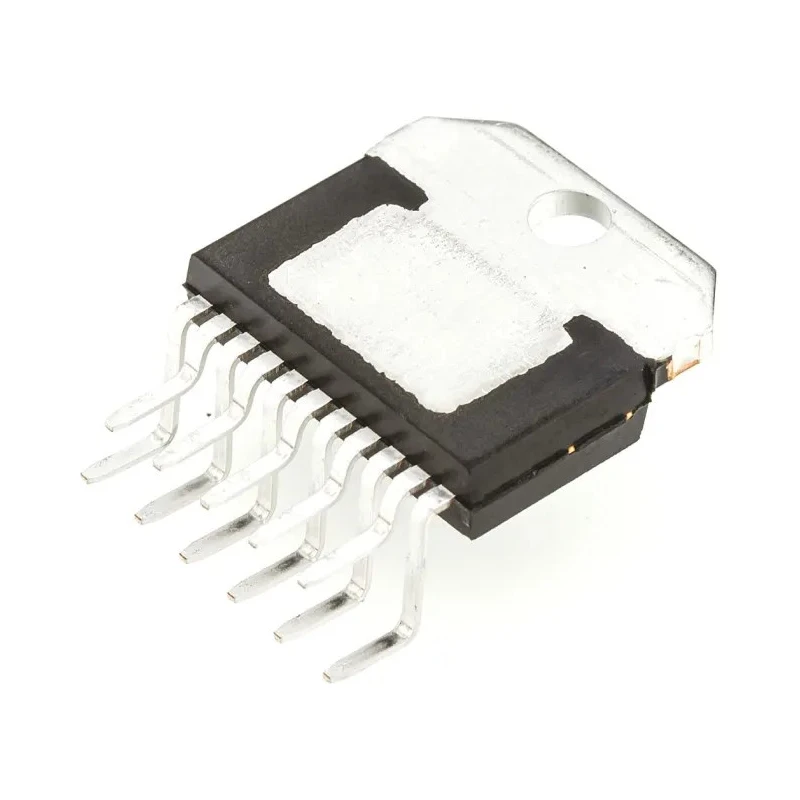

Texas Instruments Brushed DC Motor Driver IC 55 V 3 A 11-Pin TO-220 LMD18201T/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 10.69mm |
| Length | 20.02mm |
| Model | LMD18201T/NOPB |
| Width | 4.5mm |
| Motor Type | Brushed DC Motor |
| Mount Type | Through Hole |
| Series | LMD18201 |
| Configuration | Half Bridge |
| Output Current | 6A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 11 |
| Maximum Collector Emitter Voltage Vceo | 55V |
| Maximum Supply Voltage | 55V |
| Minimum Supply Voltage | 12V |
| Supply Current | 25mA |
| Maximum IGBT Collector Current | 3A |
| Typical Switching Frequency | 500kHz |
Key Features
- The device supports a typical switching frequency of 500 kHz for efficient motor control.
- It features an 11-pin TO-220 through-hole package suited for PCB insertion.
- The operating temperature ranges from -40°C to 125°C ensuring robust performance.
- The supply voltage range spans from 12 V minimum to 55 V maximum.
- The IC has a low supply current of 25 mA for energy efficient operation.
- This motor driver IC is not automotive standard certified and has no special approvals.
- Compact dimensions of 20.02 mm length, 10.69 mm height, and 4.5 mm width enable versatile usage.
Product Description
Texas Instruments LMD18201T/NOPB is a high-performance brushed DC motor driver IC designed to provide efficient control with a half-bridge configuration. It supports maximum collector emitter voltages up to 55 V and can handle output currents up to 6 A, ideal for industrial, laboratory, and manufacturing motor control applications requiring robust power management.
Packaged in an 11-pin TO-220 through-hole format, this device offers reliable mounting and integration into various circuit boards. Its broad operating temperature from -40°C to 125°C ensures stable operation in harsh environmental conditions common in industrial and commercial settings.
The device operates at a typical switching frequency of 500 kHz, facilitating smooth motor speed control and high efficiency. It requires a minimum supply voltage of 12 V and supports up to 55 V maximum supply voltage, covering a wide range of motor power requirements.
With a low 25 mA supply current, this IC contributes to lower overall energy consumption. Although not certified to automotive standards, it is well-suited for general motor controller applications especially in motion and power management IC roles.
The device offers a half-bridge motor configuration optimized for brushed DC motors. It features an output current capacity of 6 A for controlling moderate power motors. The robust package type TO-220 supports easy PCB mounting and heat dissipation.
Operating temperature range ensures reliable performance across various operating environments. The compact size allows integration into constrained electronic designs.
Texas Instruments LMD18201T/NOPB is a reliable choice for engineers and designers seeking an efficient motor driver IC with solid power handling and thermal performance. This product aids in improving production efficiency in machinery where motor speed and torque control are critical.
Explore more Motor Driver ICs and semiconductor solutions on EnvMart to find the best fits for your industrial automation and electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this motor driver IC is 55 V.
The device supports a typical switching frequency of 500 kHz, facilitating efficient motor control.
This model has compact dimensions of 20.02 mm in length, 10.69 mm in height, and 4.5 mm in width.
The operating temperature ranges from -40°C to 125°C, ensuring reliable performance in various environments.
The supply current for this motor driver IC is 25 mA, contributing to energy-efficient operation.
It is packaged in an 11-pin TO-220 through-hole format, suitable for PCB insertion.
No, this motor driver IC is not automotive standard certified and has no special approvals.
The maximum collector emitter voltage (Vceo) is 55 V, allowing for robust power management.
This unit requires a through-hole mounting type, which supports reliable integration into circuit boards.
It belongs to the LMD18201 series, which includes various motor driver ICs from Texas Instruments.
