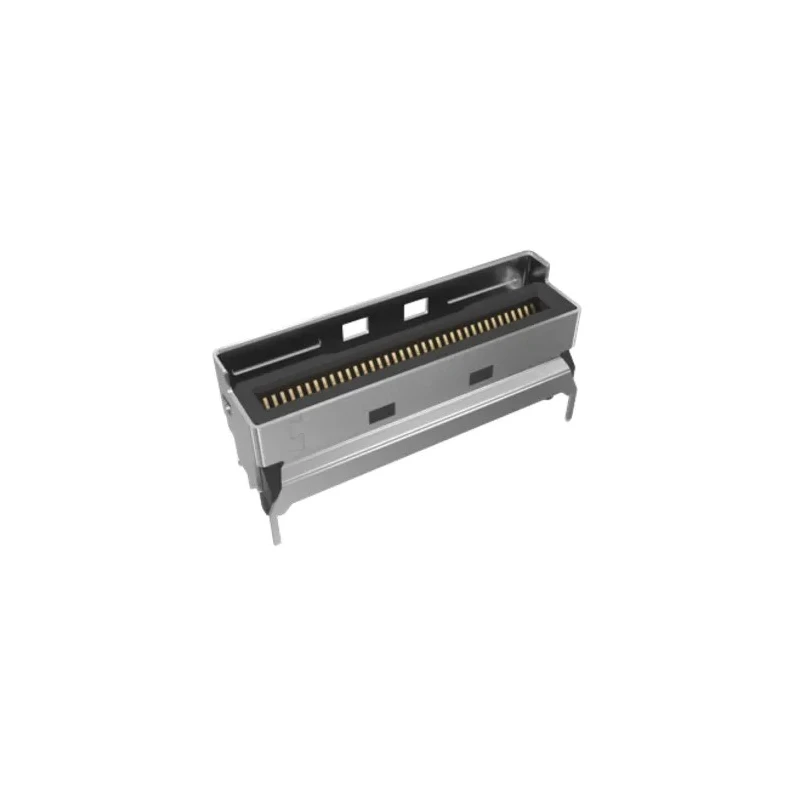

Amphenol Communications Solutions Mini Cool Edge IO Series Vertical Edge Connector Panel 74 Contacts 0.6 mm Pitch G97V22332HR
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Communications Solutions |
| Orientation | Vertical |
| Model | G97V22332HR |
| Mount Type | Panel |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Mini Cool Edge IO |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 0.6mm |
| Standards/Approvals | UL, RoHS |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 74 |
| Card Type | PCIe |
Key Features
- The connector features a vertical orientation for panel mounting.
- It has 74 copper alloy contacts with gold over nickel plating for reliable conductivity.
- Supports signal transmission up to 56Gb/s PAM4, PCIe Gen 4 and Gen 5.
- Operating temperature range from -55°C to 85°C.
- Housing material is durable thermoplastic for compact and scalable system designs.
- Designed for both cable and card edge connection applications.
- Supports highly modular, scalable, and easy-to-maintain system architectures.
Product Description
Amphenol Communications Solutions G97V22332HR Mini Cool Edge IO Series vertical edge connector panel features 74 contacts with a 0.6 mm pitch and is optimized for PCIe card types. It utilizes copper alloy for contact material with gold over nickel plating to ensure high-quality electrical connectivity and long-lasting durability. The connector is designed for vertical panel mount applications, operating reliably within a -55°C to 85°C temperature range and rated for 300V.
This Mini Cool Edge IO connector provides advanced signal integrity performance, supporting data transmission rates up to 56Gb/s PAM4 and compatibility with PCIe Gen 4 and Gen 5 standards over distances exceeding 1.0 meter. Its slim form factor facilitates compact designs ideal for modern data centers and electronic systems.
The connector supports both cable and card edge mounting, offering system designers flexibility in creating highly modular, scalable, and easily repairable architectures. Its thermoplastic housing contributes to lightweight yet robust construction suitable for demanding industrial and commercial electronics environments.
Amphenol Communications Solutions' Mini Cool Edge IO Series connectors are widely used in industrial automation, telecommunications, computing hardware, and high-performance electronic equipment, supporting reliable connections in critical applications.
The connector features a vertical orientation for panel mounting. It has 74 copper alloy contacts with gold over nickel plating for reliable conductivity. Supports signal transmission up to 56Gb/s PAM4, PCIe Gen 4 and Gen 5.
Operating temperature range from -55°C to 85°C. Housing material is durable thermoplastic for compact and scalable system designs. Voltage rating of 300V ensures robust electrical performance. Designed for both cable and card edge connection applications.
Supports highly modular, scalable, and easy-to-maintain system architectures.
Explore more industrial-grade Edge Connectors and components from Amphenol Communications Solutions at EnvMart to enhance your electronic designs with proven reliability and advanced technology.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports data transmission rates up to 56Gb/s PAM4.
It operates reliably within a temperature range of -55°C to 85°C.
The connector features 74 contacts with a 0.6 mm pitch.
This unit is designed for vertical panel mounting applications.
The housing is made of thermoplastic, and the contacts are copper alloy with gold over nickel plating.
Yes, it is optimized for PCIe card types and supports PCIe Gen 4 and Gen 5 standards.
The voltage rating for this model is 300V.
It is designed for both cable and card edge connection applications, widely used in industrial automation, telecommunications, and computing hardware.
The connector complies with UL and RoHS standards.
The 0.6 mm pitch allows for compact designs, making it suitable for modern data centers and electronic systems.
Yes, its thermoplastic housing and robust construction make it suitable for demanding industrial and commercial electronics environments.
The connector is manufactured in China.
