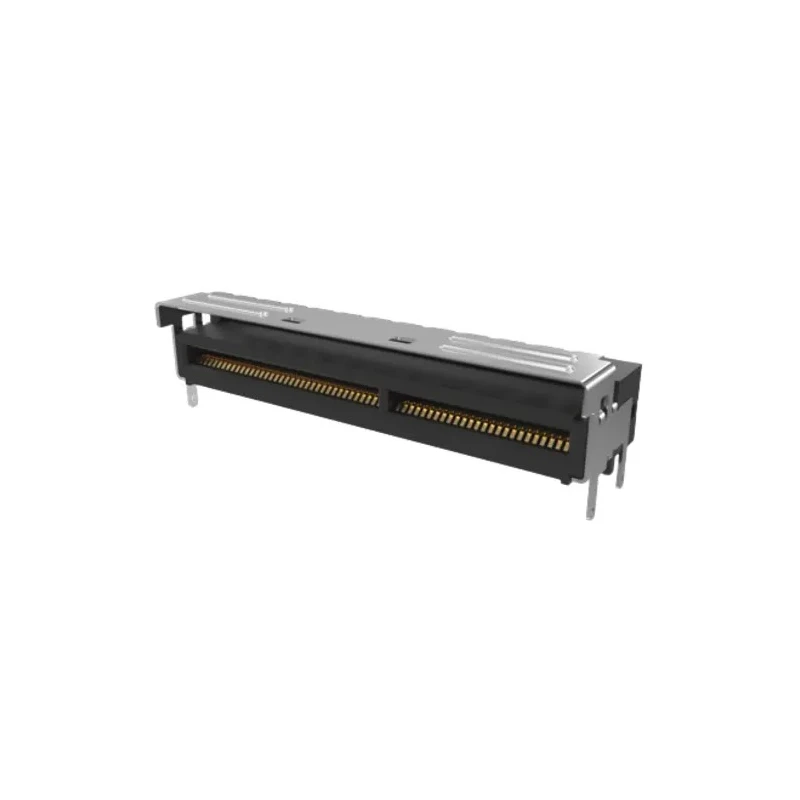

Amphenol Communications Solutions Mini Cool Edge IO Series Right Angle Edge Connector, Panel Mount, 74-Contacts G97R24332HR

Amphenol Communications Solutions G97R24332HR Mini Cool Edge IO Series Right Angle Edge Connector is designed for use in electronics and electrical applications, particularly for PCIe systems requiring high-speed and reliable connections. It provides a right angle panel mount Edge Connector solution with 74 contacts and a fine 0.6 mm pitch.

The connector features copper alloy contacts plated with gold over nickel, ensuring excellent conductivity and corrosion resistance. Its thermoplastic housing contributes to robust mechanical support and electrical insulation.

Operating temperature range from -55°C to 85°C allows this connector to perform reliably under harsh environmental conditions. Rated for 300V, it meets industry standards including UL and RoHS for safety and environmental compliance.

It supports advanced signaling technologies such as up to 56Gb/s PAM4, PCIe Gen 4, and PCIe Gen 5, facilitating data transmission over one meter with minimal signal loss. The slim form factor suits compact data center designs that require modular, scalable, and easily serviceable connections.

This connector supports both cable and card edge configurations using an identical connector type, enhancing design flexibility and simplifying system architecture. The connector offers a right angle orientation suitable for compact system layouts.

It features gold over nickel plating on copper alloy contacts for reliable signal transmission. Supports operating temperatures from -55°C to 85°C, ensuring durability in diverse environments. Voltage rating is 300V, compliant with UL and RoHS standards.

The housing is made of thermoplastic for robust insulation and durability. Designed for PCIe card types, enabling high-speed data connections. Supports up to 56Gb/s PAM4 signaling, including PCIe Gen 4 and Gen 5 standards over distances greater than 1 meter.

The connector supports both cable and card edge connections with a slim form factor, ideal for modular and scalable data center systems.

This product is suited for use in industrial automation, computing hardware, telecommunications infrastructure, data center equipment, and other commercial electronic systems requiring robust, high-performance connectors. Browse EnvMart categories for more specialized connectors and communications solutions.
