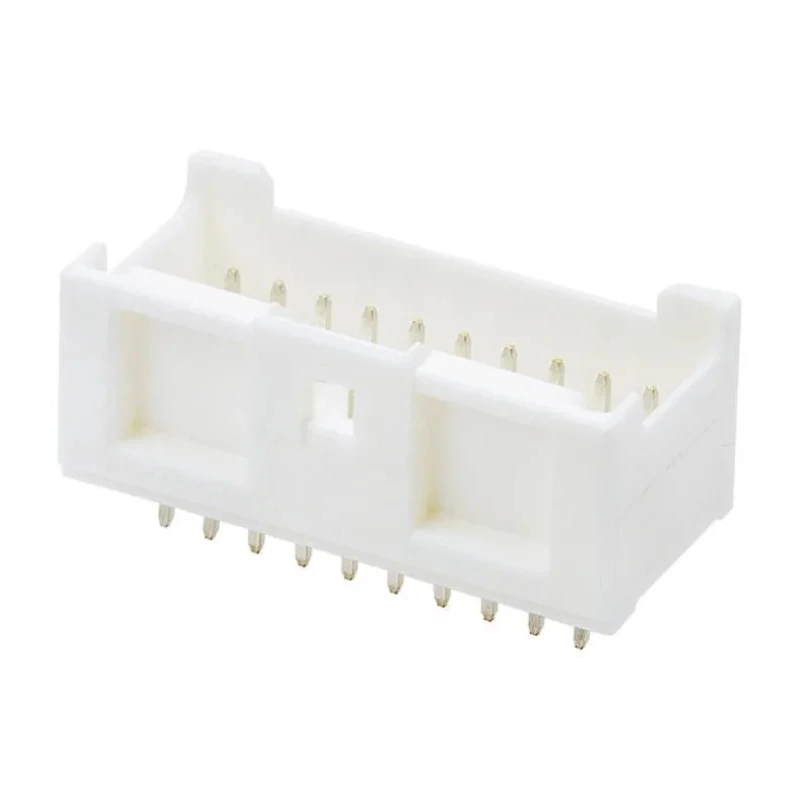

Molex MicroClasp Series Straight Surface PCB Header, 16 Contact, 2 mm Pitch, 2 Row, Shrouded 55917-1610
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | MicroClasp |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance system |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 2mm |
Key Features
- The connector uses a straight orientation in a double row configuration for efficient PCB space usage.
- It features brass contact material plated with tin for reliable electrical connection.
- Designed for 3 A current capacity and up to 250 V voltage rating suitable for power applications.
- Terminal design ensures low insertion force and latch protection with an audible click.
- Operates reliably between -40°C to 105°C for industrial environmental conditions.
- Contact tail pins measure 3.2 mm in length with a mating pin length of 2 mm for secure connections.
- Housing is made of durable polyester ensuring insulation and mechanical strength.
- Mount type is surface mount with wire-to-board connector system.
Product Description
The Molex 55917-1610 MicroClasp Series Straight Surface PCB Header is a high-quality PCB connector featuring 16 contacts arranged in a 2-row straight layout with a 2 mm pitch, providing compact and reliable wire-to-board connections. It is manufactured with brass contacts plated with tin to ensure strong and corrosion-resistant electrical conductivity.
This shrouded header incorporates a unique inner positive lock system delivering secure retention during mating and unmating cycles, including an audible click to confirm proper connection. The low insertion force design reduces wear and facilitates easy assembly while maintaining secure latch protection.
Rated for 3 A current and 250 V voltage, this PCB header is suitable for industrial, electronic manufacturing, and power distribution applications requiring compact connectors with robust electrical performance. The housing is made from polyester material providing excellent mechanical strength and stability across a wide temperature range from -40°C to 105°C, making it adaptable for demanding operating environments.
Key technical details include a contact tail pin length of 3.2 mm and mating pin length of 2 mm. The surface mount design supports efficient PCB assembly processes, while the two-point contact design enhances signal integrity and current carrying capability.
The connector system supports wire-to-board applications with space-saving pitch and double row layout. Inner positive lock and housing lance system ensure secure mating, retention, and terminal protection. Designed for industrial, electronic, manufacturing, and power connector use cases.
Set contains 1 PCB header with 16 male contacts, shrouded design, and surface mount termination ready for soldering. Explore more Molex PCB connectors and related products at EnvMart to meet your electronic assembly needs.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a current capacity of 3 A and a voltage rating of 250 V, making it suitable for power applications.
The contact tail pins measure 3.2 mm in length, while the mating pin length is 2 mm for secure connections.
The connector features brass contact material plated with tin for reliable electrical connection and a housing made of durable polyester for insulation and mechanical strength.
It operates reliably between -40°C to 105°C, making it suitable for industrial environmental conditions.
This model is designed for surface mount installation, supporting efficient PCB assembly processes.
It employs a wire-to-board connector system, which is ideal for compact and reliable connections.
The header features 16 contacts arranged in a 2-row configuration with a 2 mm pitch.
This model utilizes solder termination, which is common in PCB assembly.
Yes, it incorporates a unique inner positive lock system that ensures secure retention during mating and unmating cycles.
The PCB header is manufactured in India.
