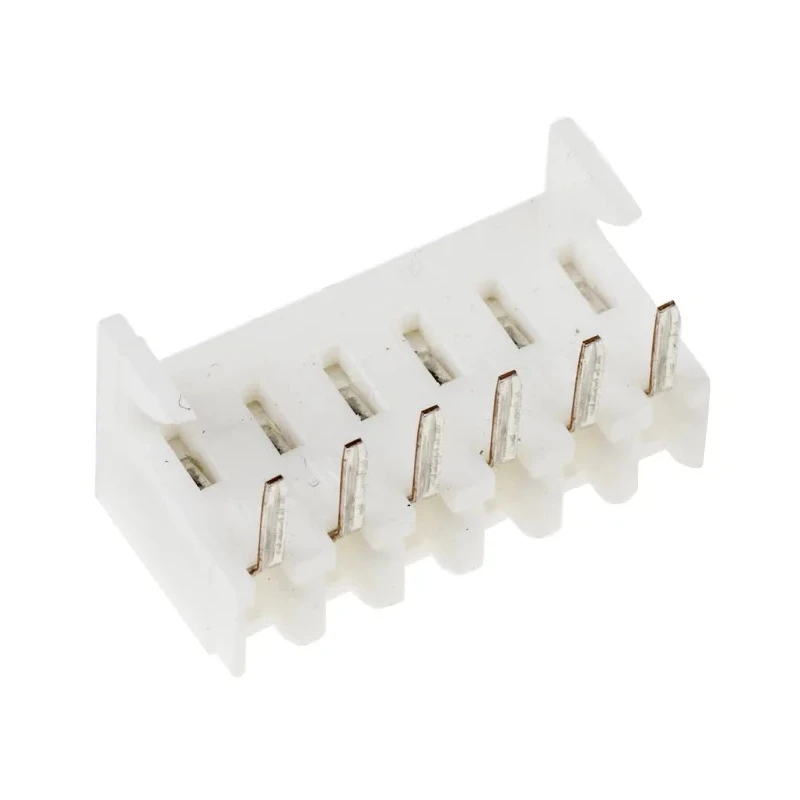

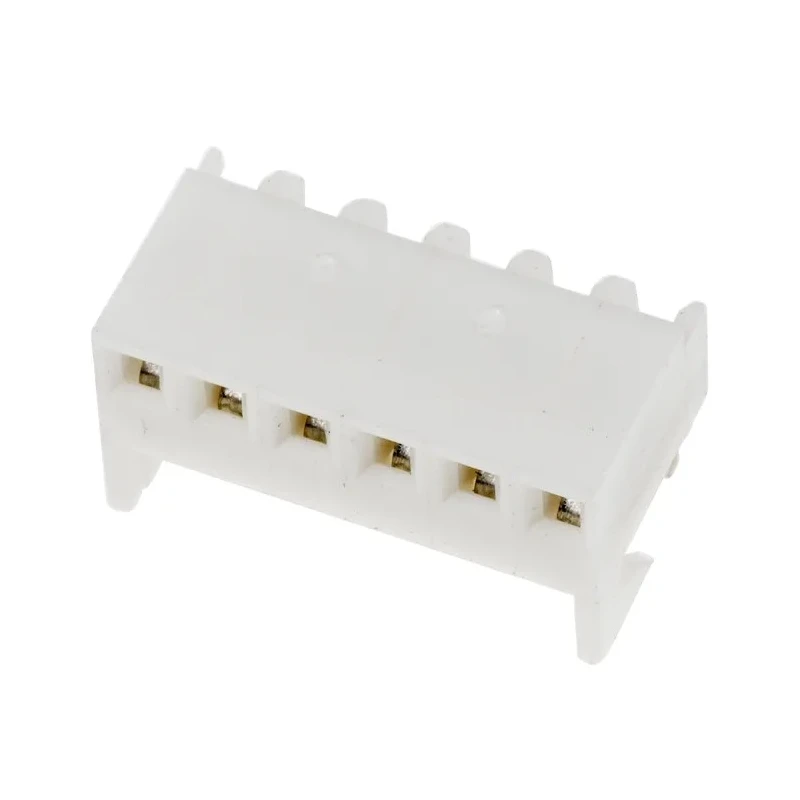

Molex KK 254 Series Right Angle Through Hole PCB Socket 6-Contact 1 Row 2.54 mm Pitch 250V 2.5A 38-00-1336
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 2.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Signal |
Key Features
- Constructed with a UL94 V-0 Nylon housing for enhanced durability.
- Features phosphor bronze contact material with tin plating for reliable conductivity.
- Rated for 250V voltage and 2.5A current capacity.
- Designed for right angle orientation with through hole mounting.
- Operates within temperature range of -40°C to 105°C.
- Connector system supports board-to-board signal connection.
- Contact gender is female with solder termination type.
Product Description
Molex 38-00-1336 KK 254 Series Right Angle Through Hole PCB Socket is engineered to provide dependable connectivity in electronic assemblies, featuring 6 contacts arranged in a single row with a 2.54 mm pitch.
This PCB socket is constructed from UL94 V-0 rated Nylon housing which ensures flame retardant properties and mechanical robustness. The contacts are made of phosphor bronze and are tin-plated to guarantee excellent conductivity and corrosion resistance.
The right angle design facilitates optimal PCB layout and minimizes board space, ideal for board-to-board signal transmission applications rated up to 250V and 2.5A current.
Capable of operating within a temperature range of -40°C to 105°C, this socket is suitable for a wide range of industrial and commercial electronic equipment, including telecommunications, computing, and control systems.
The solder termination ensures a robust mechanical and electrical connection via through-hole mounting technology. UL94 V-0 Nylon housing for flame resistance and durability. Phosphor bronze contacts with tin plating for reliable performance.
Right angle orientation enables efficient PCB design. Rated for 250V and 2.5A suitable for board-to-board signal applications. Wide operating temperature range from -40°C to 105°C. Female contact gender with solder termination type.
Suitable for industrial, telecommunications, and electronics manufacturing sectors.
This Molex KK 254 series connector adheres to industry standards ensuring quality and reliability. It is the ideal choice for secure and stable PCB connections in demanding electronic environments.
Explore more electronics components and connectors in the PCB Sockets category on EnvMart to find complementary products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket is rated for 250V voltage and 2.5A current capacity, making it suitable for various electronic applications.
The socket features a 2.54 mm pitch and has 6 contacts arranged in a single row.
It is constructed with a UL94 V-0 rated Nylon housing and features phosphor bronze contacts with tin plating for reliable conductivity.
The operating temperature range for this PCB socket is from -40°C to 105°C, allowing it to function in various environmental conditions.
This model is designed for through hole mounting, ensuring a secure connection to the printed circuit board.
The socket utilizes a solder termination type, providing a robust mechanical and electrical connection.
This socket is designed with a right angle orientation, which facilitates optimal PCB layout and space efficiency.
It is suitable for board-to-board signal transmission applications in industrial, telecommunications, and electronics manufacturing sectors.
The connector system supports board-to-board signal connection, making it versatile for various electronic assemblies.
The contact gender of this PCB socket is female, designed for compatibility with male connectors.
The country of origin for this PCB socket is India.
The contacts of this socket are tin-plated, which helps ensure reliable performance and corrosion resistance.
