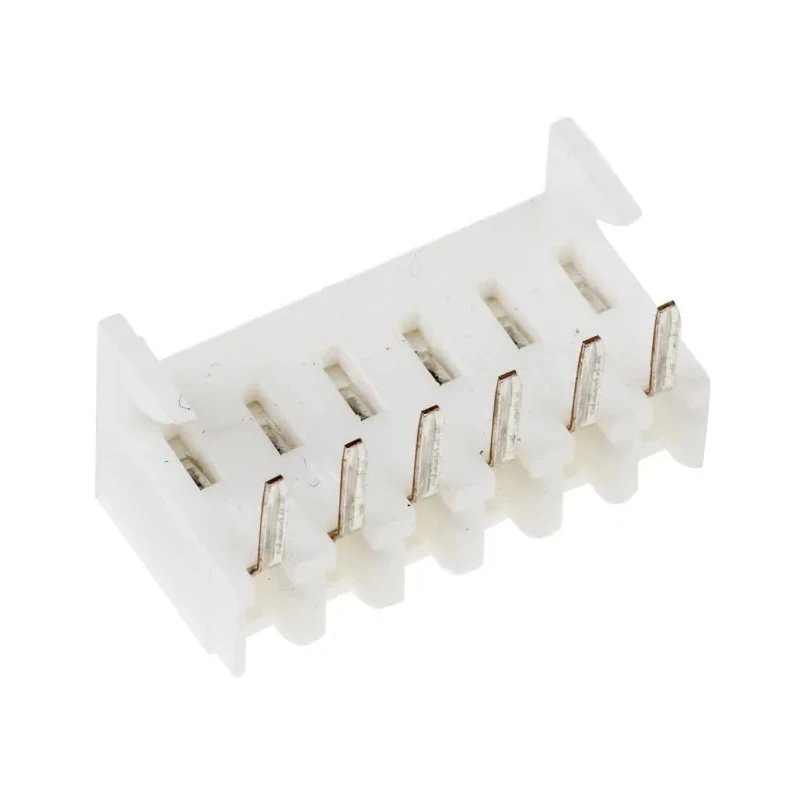

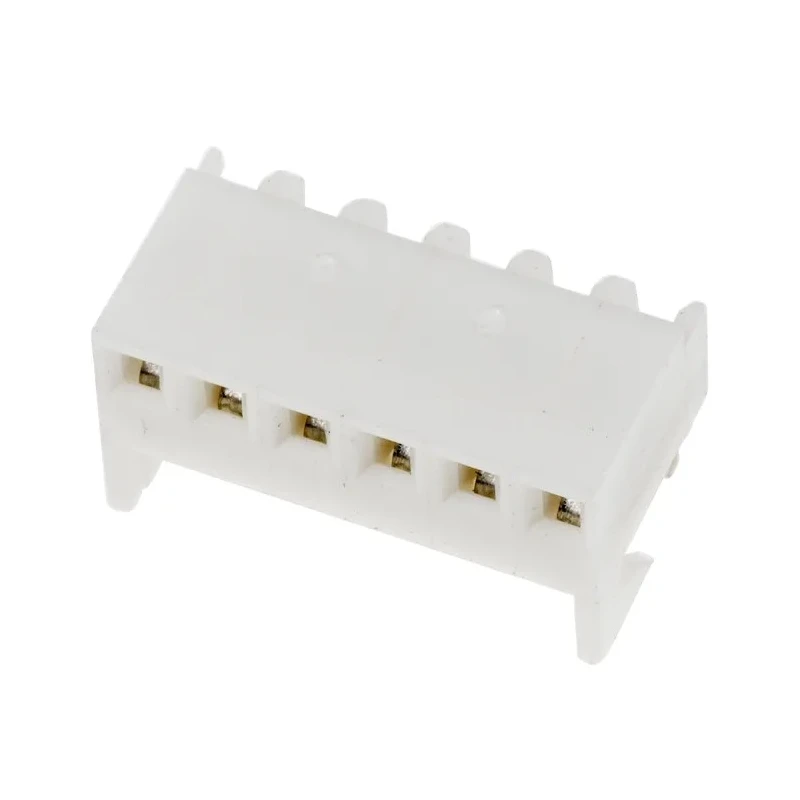

Molex KK 254 Series Right Angle Through Hole PCB Socket 6-Contact 1 Row 2.54 mm Pitch Solder 38-00-1336
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 2.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | KK 254 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Signal |
Key Features
- This PCB socket features a single row of 6 female contacts providing reliable electrical connections.
- The right angle orientation facilitates compact PCB layouts and efficient space usage.
- The housing is constructed from UL94 V-0 rated nylon for high durability and safety.
- Contacts are made of bronze with tin plating ensuring solid conductivity and corrosion resistance.
- Supports voltage rating up to 250V and current rating of 2.5A for typical electronic applications.
- Suitable for operating temperature ranges from -40°C to 105°C accommodating harsh industrial environments.
- Mount type is through hole for secure PCB integration using solder termination.
- Series KK 254 offers standardized connector system ensuring compatibility with related components.
Product Description
Molex 38-00-1336 KK 254 Series Right Angle Through Hole PCB Socket is a specialized connector designed for board-to-board signal interfacing in electronics manufacturing, supporting 6 contacts arranged in a single row with 2.54 mm pitch.
This connector utilizes a robust UL94 V-0 nylon housing material that provides enhanced flame retardance and durability suitable for commercial, industrial, and laboratory PCB applications.
The bronze contact pins are tin plated to assure optimal electrical conductivity and corrosion resilience. The contact gender is female, configured in a right angle orientation to optimize PCB layout and allow efficient right angle connections.
Operating voltage is rated at 250 volts, with a current carrying capacity of 2.5 amperes, viable for diverse signal and low-power circuit requirements. The device functions reliably across an ambient temperature range from -40°C up to 105°C, ensuring stability in varying environmental conditions.
The solder termination and through-hole mounting type allow firm mechanical and electrical attachment to printed circuit boards, increasing assembly reliability. KK 254 Series connectors are widely used in electronics assembly lines, industrial devices, communication equipment, and electronic instrumentation.
This socket features 6 contacts in a single row configuration. Housing made of high-grade UL94 V-0 nylon for safety and stability. Contact material is bronze and plated with tin for conductivity and corrosion resistance.
Rated for 250 V voltage and 2.5 A current capacity. Designed for through-hole solder mounting on PCBs. Supports operating temperatures ranging from -40°C to 105°C. Right angle orientation for space-saving PCB design.
This product is manufactured in Mexico and complies with quality manufacturing standards but does not carry specific international approvals or certifications. Ideal for industrial, commercial electronics, and laboratory use.
Explore more PCB Sockets and electronic connectors in the Electronics & Electricals category at EnvMart.
