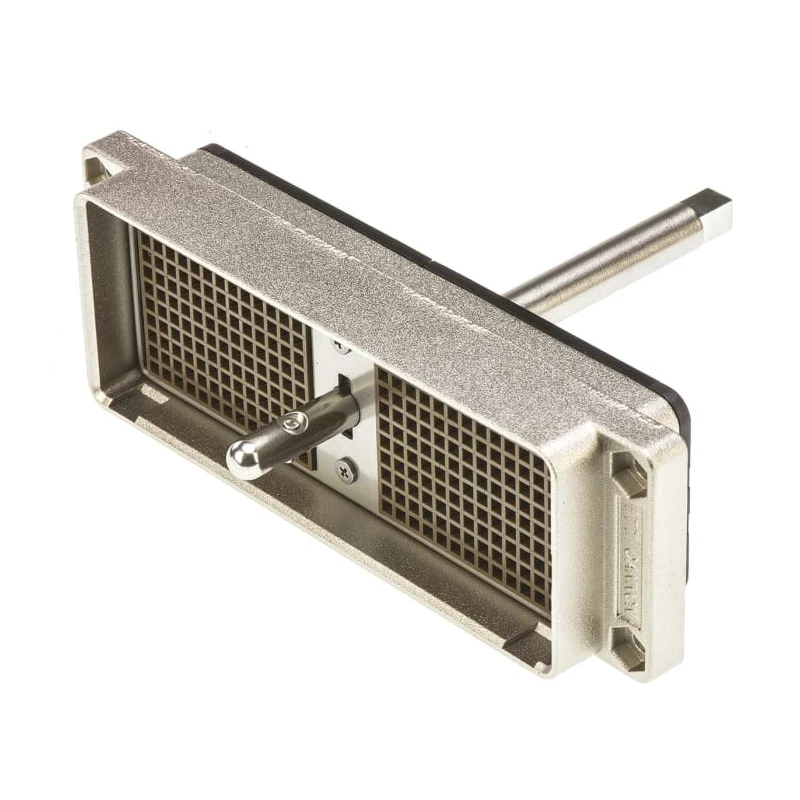

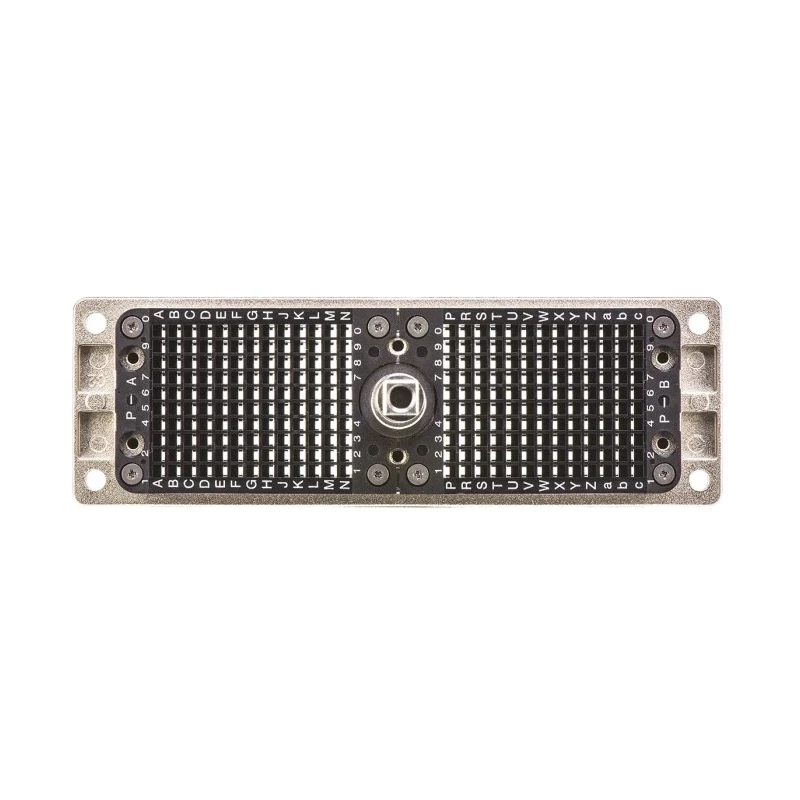

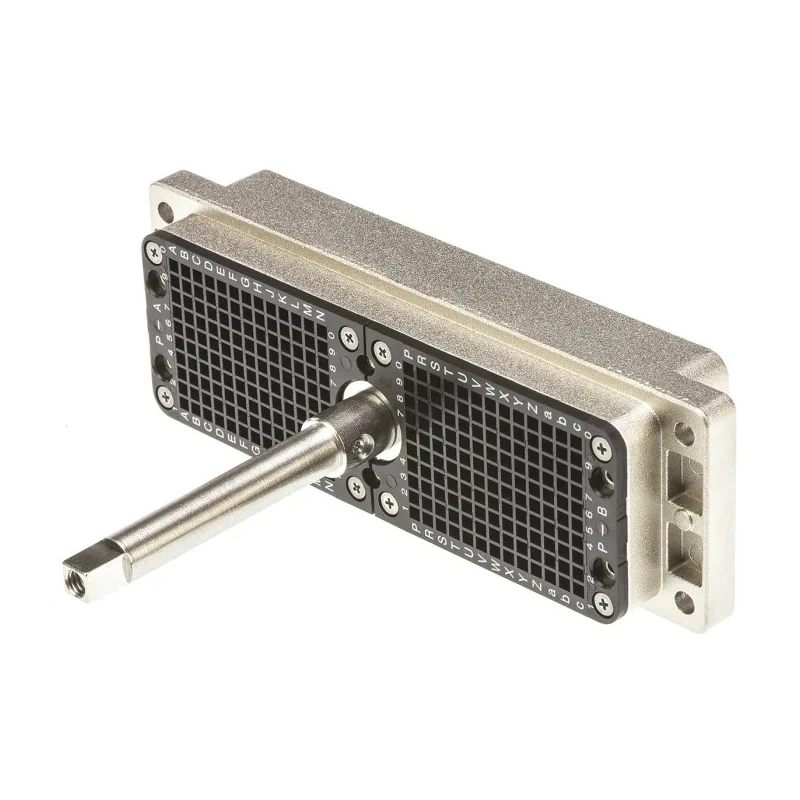

ITT Cannon DLM 2.54 mm Pitch ZIF Plug Body Straight Male 260 Way 127050-0109
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1.2kV ac |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Panel |
| Housing Material | Aluminium Alloy |
| Contact Material | Beryllium Copper Alloy |
| Series | DLM |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 260 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Contact Gender | Male |
| Connector Gender | Male |
| Backplane Connector Type | ZIF |
| ITT Cannon DL 260 Way Straight D-Sub Connector, with Panel MaleBrand | ITT Cannon |
Key Features
- Constructed with rugged nickel-plated aluminium housing providing EMI/RFI shielding.
- Features gold-plated beryllium copper alloy contacts ensuring reliable electrical performance.
- Supports a current rating of 5 A and voltage rating of 1.2 kV AC.
- Operates reliably between -55°C and 105°C temperatures.
- Panel mounting with crimp termination provides secure connector installation.
- Cam actuated zero insertion force (ZIF) coupling reduces mating stress and eases assembly.
- Applications include broadcast, avionics, computers, and medical instrumentation.
Product Description
ITT Cannon 127050-0109 DLM series ZIF plug body features a 2.54 mm pitch with 260 male contacts arranged for panel mounting. This backplane connector's aluminium alloy housing is nickel-plated to provide a durable EMI/RFI shield under demanding industrial conditions.
The contacts are made from beryllium copper alloy with gold plating to ensure optimal conductivity and resistance to corrosion. Designed with a cam-actuated zero insertion force coupling, this connector significantly reduces mating wear and guarantees uniform pressure around the connection perimeter.
Rated for 5 A current and 1.2 kV AC voltage, it functions over a wide temperature range from -55°C to 105°C, making it suitable for harsh environments prevalent in broadcast, avionics, computing, and medical instrumentation industries. The crimp termination ensures reliable wire connections while the panel mounting type facilitates secure and stable installation.
Manufactured in China, this connector complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, ensuring quality and compatibility with electrostatic discharge protection protocols.
Rugged nickel-plated aluminium housing ensures high durability and EMI/RFI shielding. Beryllium copper alloy contacts with gold plating provide excellent conductivity. Rated for 5 A current and 1.2 kV AC voltage applications.
Wide operating temperature range from -55°C to 105°C for demanding environments. Panel mounting design with cam actuated ZIF coupling reduces mating force. Crimp termination supports secure wire connections. Suitable for broadcast, avionics, computing, and medical industrial applications.
Complies with relevant ANSI and BS EN electrostatic discharge standards.
This ITT Cannon backplane connector is an industrial-grade solution tailored for high-reliability electronic systems and rack connectors. Explore more in our Backplane Connectors category at EnvMart for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 5 A and a voltage rating of 1.2 kV AC.
It operates reliably between -55°C and 105°C, making it suitable for harsh environments.
This connector features a panel mounting design, ensuring secure and stable installation.
The housing is made from nickel-plated aluminium alloy, while the contacts are beryllium copper alloy with gold plating for optimal conductivity.
This model has 260 male contacts arranged for panel mounting.
The pitch size of this connector is 2.54 mm.
It features a crimp termination type, which supports secure wire connections.
It complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for electrostatic discharge protection.
This connector is a male connector, designed for use with male contacts.
It is suitable for applications in broadcast, avionics, computing, and medical instrumentation.
The cam actuated zero insertion force (ZIF) coupling reduces mating stress and eases assembly.
This connector is manufactured in China.
