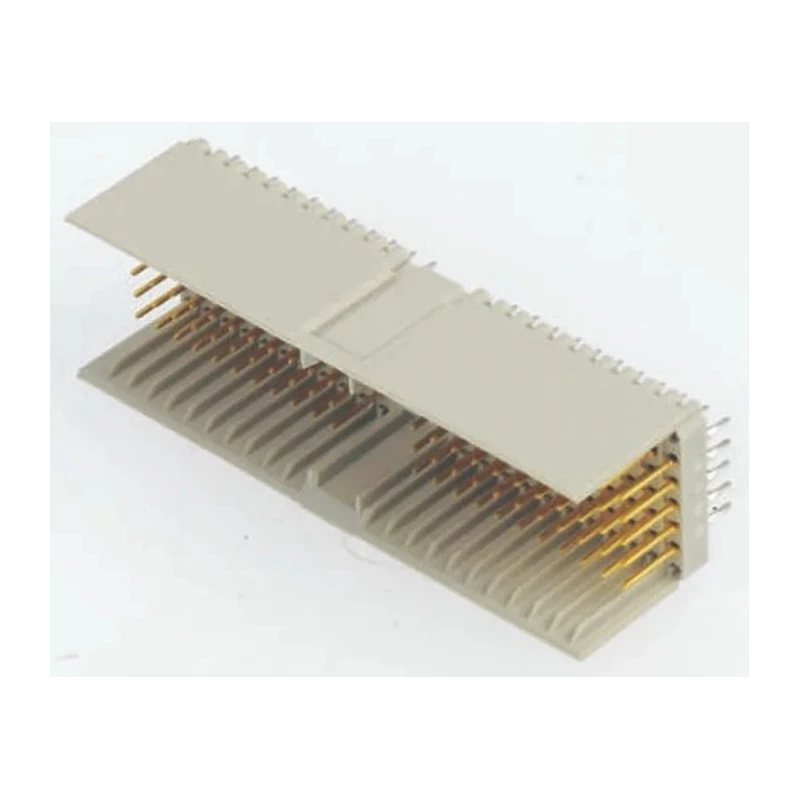

TE Connectivity Z-PACK HM 2 mm Pitch Hard Metric Type A Backplane Connector, Right Angle Male, 22 Column, 5 Row 5106015-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Z-PACK HM 2 mm Pitch Hard Metric Type A Backplane Connector, Right Angle Male, 22 Column, 5 Row 5106015-1

Name: TE Connectivity Z-PACK HM 2 mm Pitch Hard Metric Type A Backplane Connector, Right Angle Male, 22 Column, 5 Row 5106015-1
Brand: TE Connectivity
SKU: 218468
Price: 36.98 USD
Availability: InStock



Category Backplane Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Brand	TE Connectivity
Orientation	Right Angle
Current	7A
Mount Type	Through Hole
Housing Material	Polyethylene Terephthalate
Contact Material	Phosphor Bronze
Series	Z-PACK HM
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	5
Number of columns	22
Pitch	2mm
Contact Plating	Gold over Nickel
Number of Contacts	110
Contact Gender	Male
Connector Gender	Male
Backplane Connector Type	Hard Metric Type A

Key Features

This connector supports a maximum current of 7A for reliable power transmission.
The housing is made from UL 94V-0 rated polyethylene terephthalate ensuring high flame resistance.
Featuring a 2 mm pitch hard metric interface optimized for backplane applications.
Contacts are constructed from phosphor bronze and plated with gold over nickel for enhanced conductivity and corrosion resistance.
The connector uses through-hole mount type with solder termination for secure PCB attachment.
Operational temperature ranges from -65°C to 105°C, suitable for diverse industrial conditions.
Right angle orientation facilitates PCB layout flexibility in complex assemblies.
Compliant with the Z-PACK HM series, providing compatibility within modular backplane systems.

Product Description

TE Connectivity 5106015-1 Z-PACK HM 2 mm Pitch Hard Metric Type A Backplane Connector is a premium-grade right angle male connector designed for high-density electronic applications requiring 110 contacts arranged in 22 columns and 5 rows.

The connector belongs to the Z-PACK HM series with a 2 mm pitch hard metric interface, specialized for backplane interconnections and rack-mounted electronics. Its UL 94V-0 flame-retardant polyethylene terephthalate housing delivers excellent safety and durability for industrial environments.

The contact system comprises phosphor bronze material plated with gold over nickel, ensuring reliable conductivity and resistance to corrosion. The connector features a through-hole mount type for durable connection to circuit boards with solder termination, reinforcing mechanical and electrical stability.

TE Connectivity's Z-PACK HM connectors are widely used in industrial, electronics manufacturing, and data communication sectors, servicing applications where high-density, low-crosstalk backplane connections are critical. The right angle orientation enables optimal PCB space management and cabling route efficiency.

This connector supports up to 7 amperes of current. Operating temperature range spans from -65°C to 105°C. Connector gender is male matching complementary female receptacles. It is manufactured in China and supplied in new condition.

The connector series is Z-PACK HM, ensuring standardized compatibility. Pitch of 2 mm ensures precise contact spacing appropriate for hard metric assemblies.

Set in environments including industrial electronics, telecommunications, aerospace, and computing, this backplane connector ensures reliable, high-density electrical connections with operational longevity.
