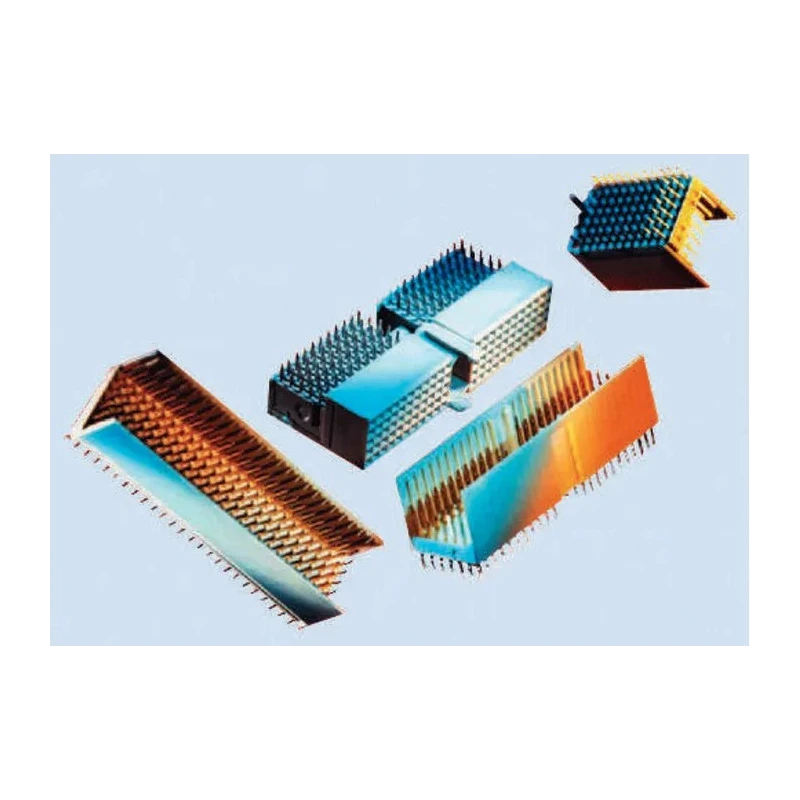

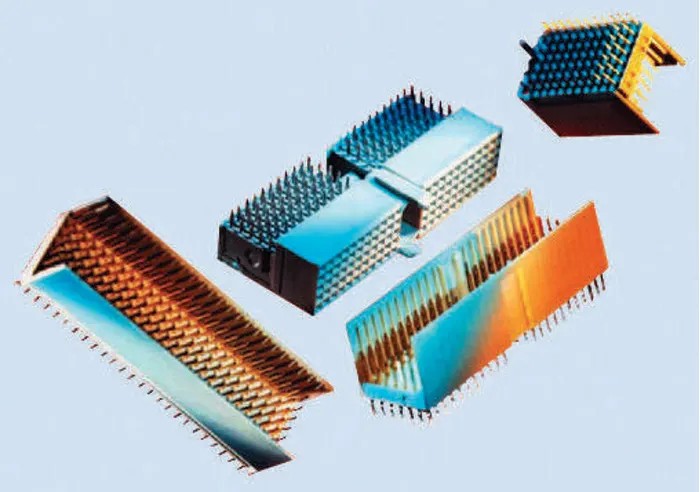

HARTING har-bus HM 2 mm Pitch Hard Metric Type B Backplane Connector, Right Angle Female, 19 Column, 5 Row, 95 17250952102

HARTING 17250952102 Backplane Connector is a hard metric type B connector designed for high-speed electronic and electrical applications requiring reliable signal transmission. This right angle female connector features a 2 mm pitch with 19 columns and 5 rows, totaling 95 contacts, suitable for compact PCI/VME bus systems and proprietary designs.

The connector supports operation at 1 ampere current and 750 volts, making it ideal for industrial, manufacturing, and electronic equipment environments. Its fibreglass and thermoplastic resin housing provide excellent mechanical strength and durability, while the contact material, copper alloy plated with gold over nickel, ensures long-lasting corrosion resistance and superior electrical conductivity.

The mounting type is through hole with press-in termination, facilitating secure PCB connections. It can operate reliably across a wide temperature range from -55°C to 125°C, allowing reliable performance even in extreme conditions.

Part of the har-bus HM series, the connector is manufactured in Germany to high-quality standards and does not carry specific certifications but meets industry expectations for performance and safety.

Modular 2 mm pitch design supporting up to 308 contacts in the series. Right angle female orientation for space-saving and efficient layouts. 95 total contact points arranged in 19 columns and 5 rows. Gold over nickel plating for enhanced contact reliability and durability.

Fibreglass and thermoplastic resin housing ensures robust mechanical protection. Press-in termination mount type tailored for through hole PCB installation. Operating temperature range from -55°C to 125°C for harsh applications.

Supports 1A current and 750V voltage specifications.

This backplane connector is essential for industrial, laboratory, manufacturing, HVAC, and electronic engineering applications requiring secure and high-performance connections. It enables fast data transfer rates up to 32/64 bit and is preferred for compact PCI and VME systems.
