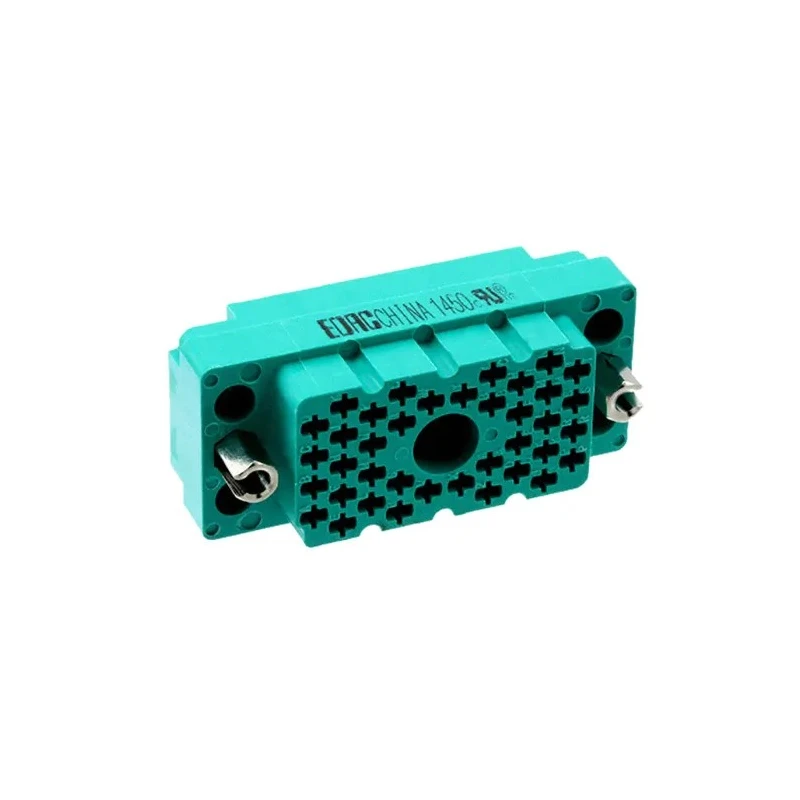

EDAC 3.81 mm Pitch Rectangular Connector, Straight Female, 38 Way 516-038-000-202

EDAC 516-038-000-202 is a 3.81 mm pitch rectangular connector featuring a straight female orientation and 38 contacts, engineered to deliver reliable and secure multi-pin connections in demanding environments.

This connector supports a current rating of 8.5A and withstands an operating voltage of 2kV AC, making it suitable for high performance industrial, automotive, and railway signalling applications that require safety and ultra-reliability.

The housing is made from durable DAP material and designed for panel mounting, ensuring a robust installation. Contacts are made of phosphor bronze with gold plating over nickel, providing excellent electrical conductivity and corrosion resistance.

Terminated with crimp type contacts, this connector supports quick and secure wire connections. It reliably performs in extreme temperature ranges from -65°C to 125°C, suitable for harsh environmental conditions often encountered in control systems for oil and gas industries or broadcast equipment.

The EDAC 516 series connectors are part of a broad range designed for rack and panel receptacle applications, incorporating features such as a hermaphroditic metal-to-metal contact design and polarized mouldings for secure mating. Though no formal standards approvals are listed, the connector's design ensures dependable functionality in industrial and commercial electronics.

Ideal for use in industrial, manufacturing, communication, and transportation sectors, this connector provides designers with the flexibility and reliability needed for critical multi-pin cable to panel or cable-to-cable connections.

Supports 8.5A current rating for robust electrical performance. Features 38 contacts with gold over nickel plated phosphor bronze material for enhanced conductivity. Designed with DAP housing and panel mount type for easy installation.

Operates reliably in temperature ranges from -65°C to 125°C. Provides 2kV AC voltage rating for high voltage applications. Contact termination suitable for crimp type connections. Offers straight female connector orientation optimized for rack or panel mounting.

Constructed with no standards approvals but suited for industrial and automotive control test systems. Explore the extensive range of EDAC connectors on EnvMart for comprehensive solutions in electronic component assembly and wiring harness design.
