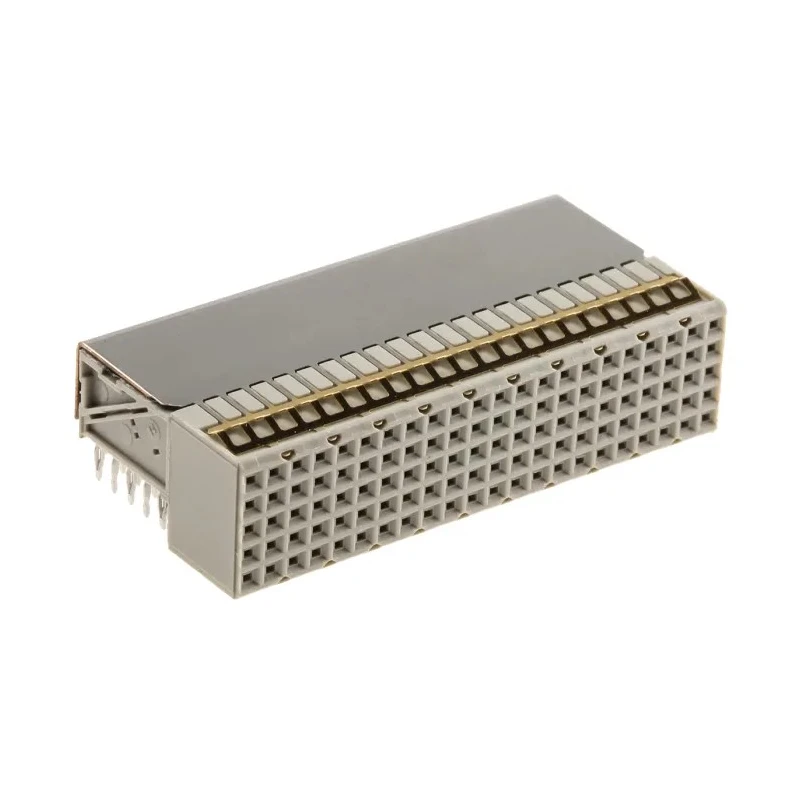

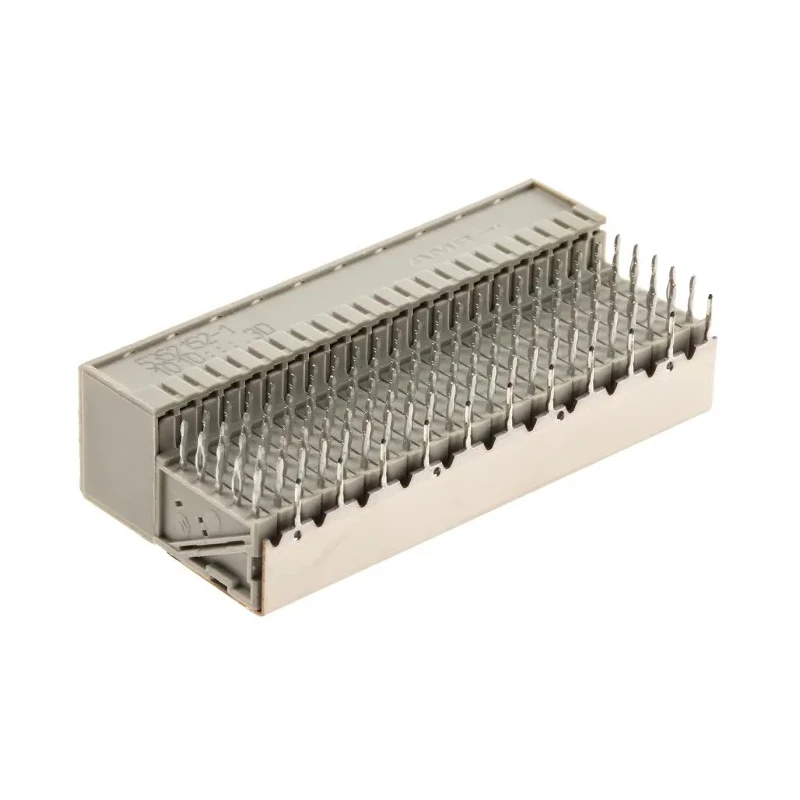

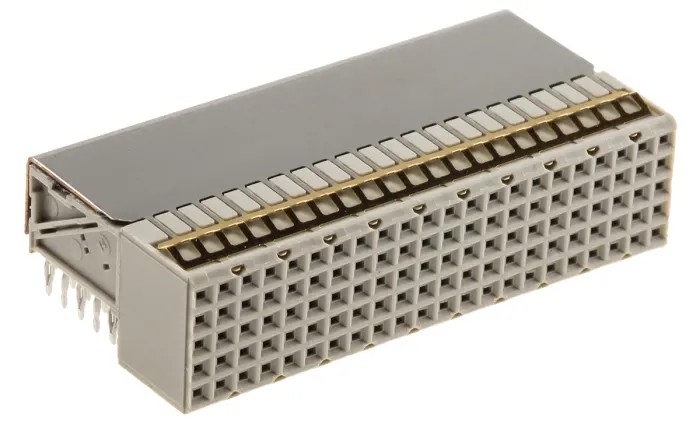

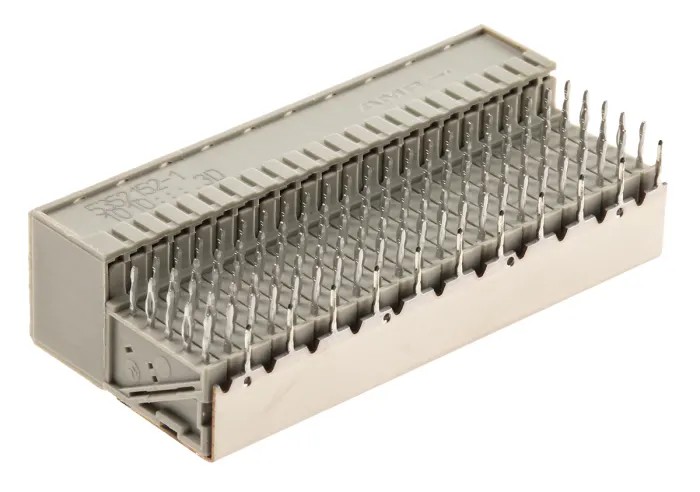

TE Connectivity Hard Metric Backplane Connector 2 mm Pitch, Right Angle Female, 22 Column, 5 Row, 110 Way 5352152-1

TE Connectivity model 5352152-1 is a Hard Metric Backplane Connector with a 2 mm pitch, designed as a right angle female connector with 22 columns and 5 rows totaling 110 ways. It is engineered for applications requiring high-density reliable connections, such as compact PCI systems and backplane interconnections.

The connector supports a 1.5A current rating and is constructed with a robust polyethylene terephthalate housing which provides excellent mechanical strength and high temperature resistance. Its phosphor bronze contacts plated with gold over nickel ensure superior electrical conductivity and corrosion protection, essential for maintaining signal integrity in critical industrial, electronic, and manufacturing environments.

Rated for 500V AC, the connector is capable of operating across a broad temperature range of -55°C up to 125°C, making it suitable for demanding thermal conditions. It employs press-fit technology for secure and efficient mating, complemented by solder termination to ensure reliable PCB attachment.

This Z-PACK HM series connector supports hot-swap capabilities, beneficial for real-time applications requiring easy board replacement without system power down. Its Euro-style packaging facilitates high volume manufacturing and system integration.

Typical applications include industrial automation, telecommunications, computing hardware, and any environment requiring compact, high-performance Backplane Connectors. This product combines high density, reliability, and ease of integration to meet modern electronic component needs.

This connector has a current rating of 1.5A suitable for moderate power applications. Features 22 columns and 5 rows, totaling 110 connection ways. Constructed with a polyethylene terephthalate housing for durability and thermal resistance.

Contact material is phosphor bronze plated with gold over nickel for enhanced conductivity and corrosion resistance. Operates reliably between -55°C and 125°C for varied environmental conditions. Designed for through-hole mounting ensuring robust mechanical connection.

Termination type is solder, supporting secure PCB attachment. Voltage rating is 500V AC suitable for industrial and electronic applications. Explore the broad range of connectors available from TE Connectivity and enhance your industrial and electronic component designs through EnvMart.
