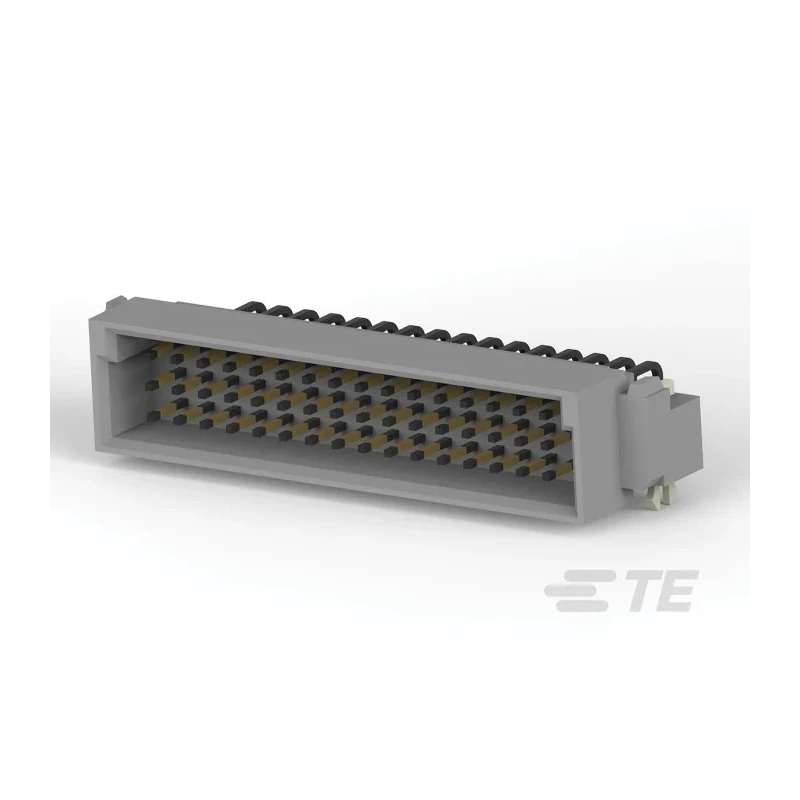

TE Connectivity 2.54 mm Pitch Backplane Connector Right Angle Male 3 Row 48 Way 5650916-5

TE Connectivity model 5650916-5 is a high-quality backplane connector designed for demanding electronic applications requiring reliable board-to-board mating. It features a fine 2.54 mm pitch and a right angle male configuration spanning 3 rows with a total of 48 contact points, ideal for signal processing and power transmission in compact PCBs.

The connector housing is made from glass filled polymer, providing mechanical strength and thermal stability suitable for operation in harsh environments, withstanding temperatures from -55°C up to 105°C. Contact materials consist of copper alloy copper with gold plating that ensures excellent electrical performance and resistance to oxidation.

This assembly supports a maximum current of 1.5 A and a voltage rating of 250 V, making it appropriate for various industrial, manufacturing, and electronic systems applications. The through-hole solder termination secures the connector firmly to printed circuit boards with an optimal thickness of 1.57 mm, enhanced by boardlock PCB retention for stable mounting.

Meeting international standards including IEC 60603-2, DIN 41612, UL 94 V-0, and RoHS, the 5650916-5 series guarantees compliance with safety, material, and environmental norms. Its right angle design and 3-row, 48-way configuration enable efficient use of PCB space and flexibility in circuit design for communication, computing, and control applications.

Designed for robust board-to-board mounting with 2.54 mm centerline pitch. Offers a maximum current rating of 1.5 amperes for efficient power delivery. Constructed with glass filled polymer housing for enhanced durability and stability.

Gold plating on copper alloy contacts ensures excellent conductivity and corrosion resistance. Supports operating temperatures from -55°C to 105°C for broad environmental suitability. Utilizes through-hole solder termination type for secure PCB mounting.

Complies with IEC 60603-2, DIN 41612, UL 94 V-0 flammability, and RoHS standards. Right angle orientation facilitates space-saving PCB designs. Designed as a 3-row connector system with 48 contact positions for high-density applications.

Recommended PCB thickness is 1.57 mm for optimal mount integrity.

This backplane connector is well suited for industrial electronic equipment, telecommunications, control systems, laboratory instruments, and computing devices that require reliable, high-density connector solutions. Its compliance with multiple international standards ensures it meets demanding safety and performance requirements across these sectors.
