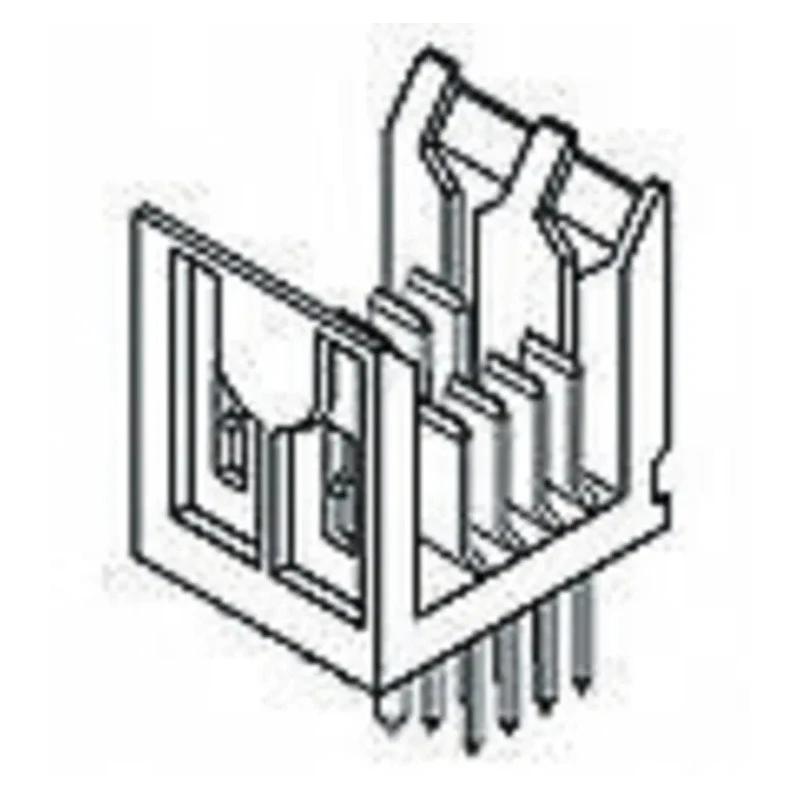

TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector, Straight Male, 4 Row, 8 Way 5536600-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector, Straight Male, 4 Row, 8 Way 5536600-1

Name: TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector, Straight Male, 4 Row, 8 Way 5536600-1
Brand: TE Connectivity
SKU: 126406
Price: 15.96 USD
Availability: InStock



Category Backplane Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	30V ac
Brand	TE Connectivity
Orientation	Straight
Current	5A
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	Z-PACK
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	4
Pitch	2mm
Contact Plating	Gold over Nickel
Number of Contacts	8
Contact Gender	Male
Connector Gender	Male
Backplane Connector Type	Futurebus+

Key Features

Designed for reliable board-to-board interconnections in electronic systems.
Features a straight male orientation for through hole mounting.
Constructed with liquid crystal polymer housing and phosphor bronze contacts.
Contacts plated with gold over nickel for enhanced conductivity and corrosion resistance.
Rated for 5 A current and 30 V AC voltage operation.
Operates in temperatures from -55°C up to 125°C.
Termination is by solder connection for secure PCB attachment.
Complies with Futurebus+ and IEC 1076-4-0X-(48B) standards.

Product Description

TE Connectivity 5536600-1 Z-PACK 2 mm Pitch Futurebus+ Backplane Connector is a high density, high speed signal and power connector designed for precise and reliable interconnections between daughterboards and backplanes in electronic applications.

This straight male connector features 8 contacts arranged in 4 rows with a 2 mm pitch, fabricated with a durable liquid crystal polymer housing that ensures mechanical strength and thermal stability up to 125°C. The phosphor bronze contacts are plated with gold over nickel, providing excellent electrical conductivity and resistance to corrosion.

Rated for 5 A current and 30 V AC voltage, it supports demanding power and signal transmission requirements. The connector is suitable for through hole mounting with solder termination, offering secure and reliable PCB attachment.

The Z-PACK series complies with Futurebus+ specifications and IEC 1076-4-0X-(48B) standards, making it an industry-trusted solution for backplane interconnects. Its modular, stackable design facilitates scalable and compact assembly in complex electronic systems.

This connector is widely used in industrial automation, telecommunications, computing hardware, instrumentation, and other applications requiring reliable, high-speed board-to-board connection solutions.

Designed for reliable board-to-board interconnections in electronic systems. Features a straight male orientation for through hole mounting. Constructed with liquid crystal polymer housing and phosphor bronze contacts. Contacts plated with gold over nickel for enhanced conductivity and corrosion resistance.

Rated for 5 A current and 30 V AC voltage operation. Operates in temperatures from -55°C up to 125°C. Termination is by solder connection for secure PCB attachment. Complies with Futurebus+ and IEC 1076-4-0X-(48B) standards.

Stackable modular design suitable for industrial and electronic equipment. Ideal for applications in industrial, computing, instrumentation, and telecommunications. Explore the comprehensive range of Backplane Connectors and related components available on EnvMart to find compatible parts for your next project or equipment upgrade.
