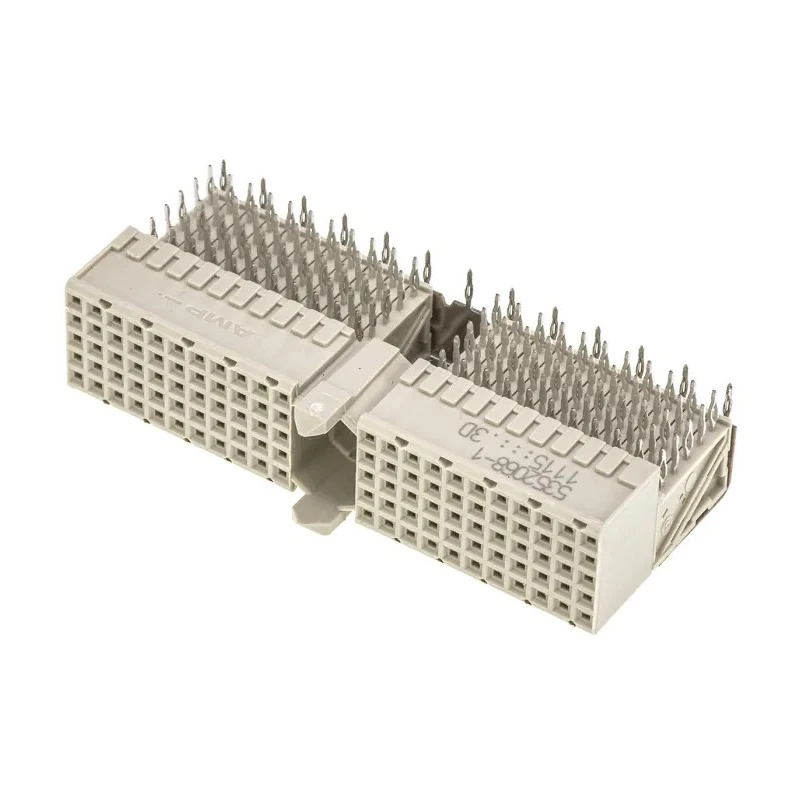

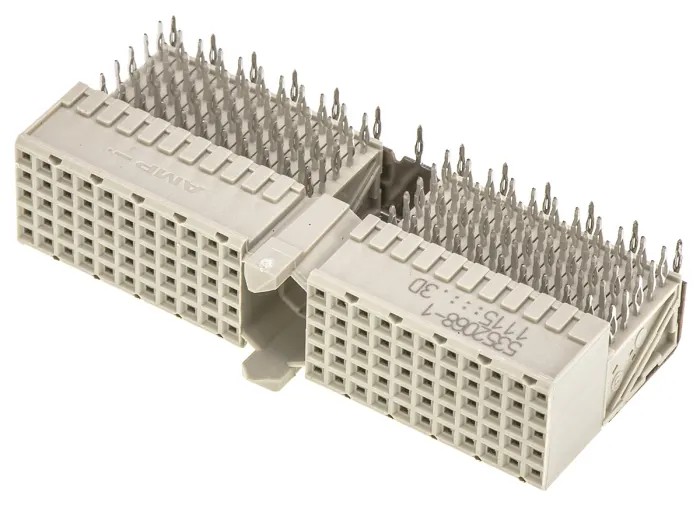

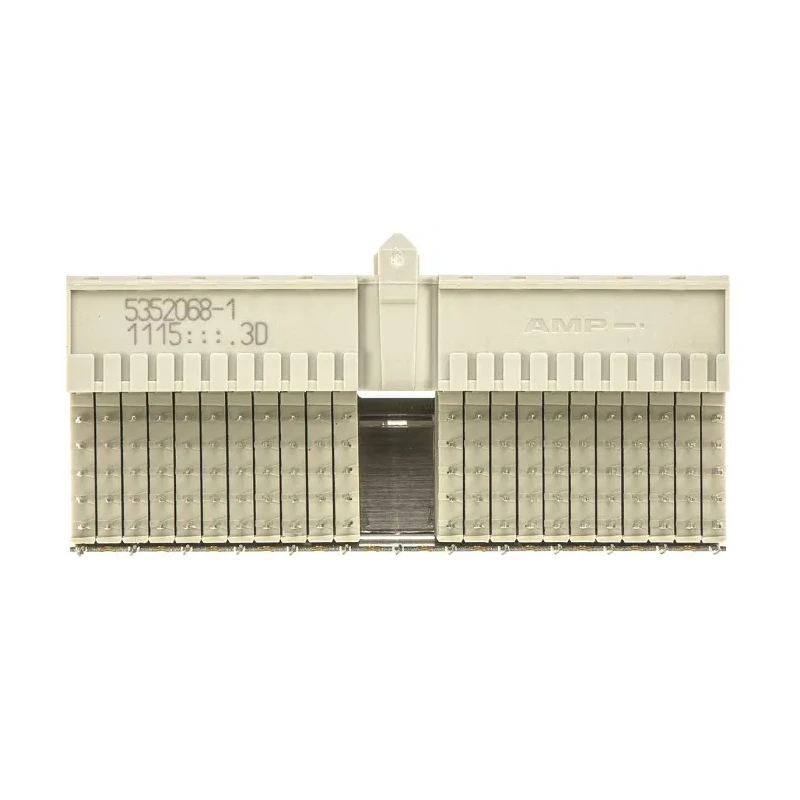

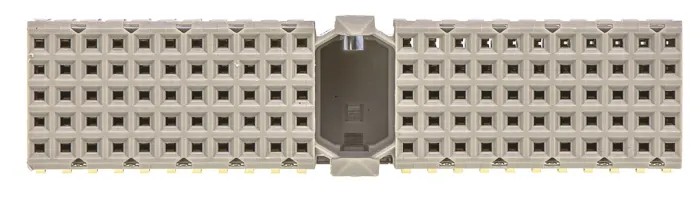

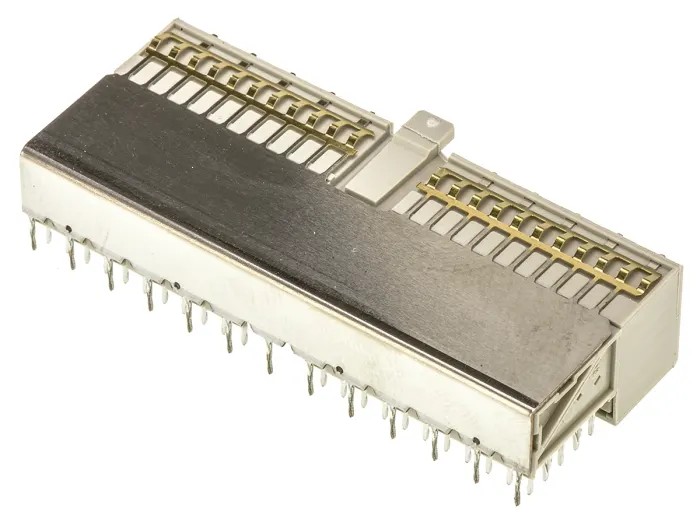

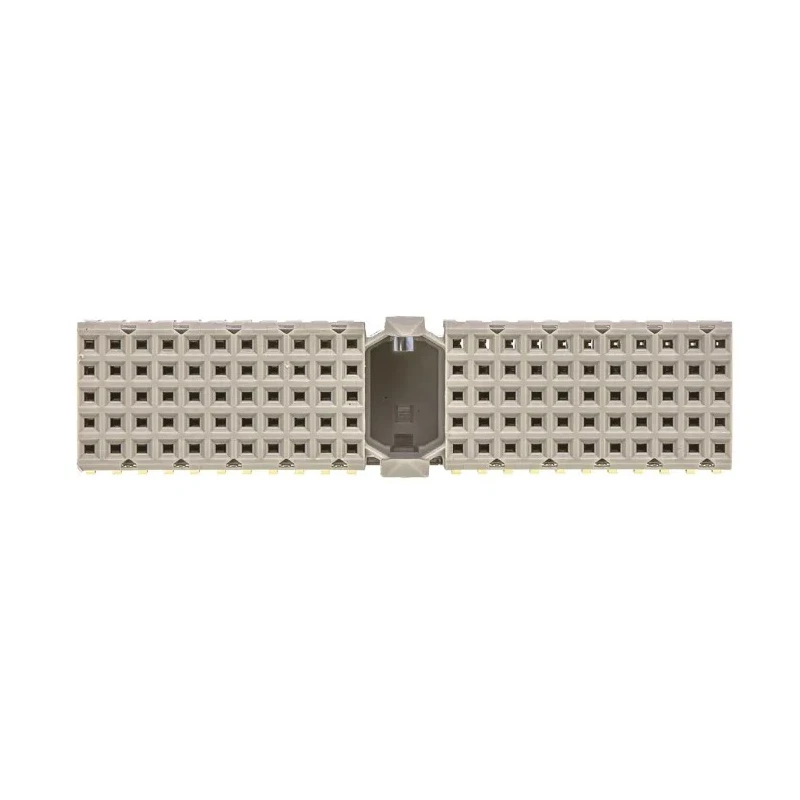

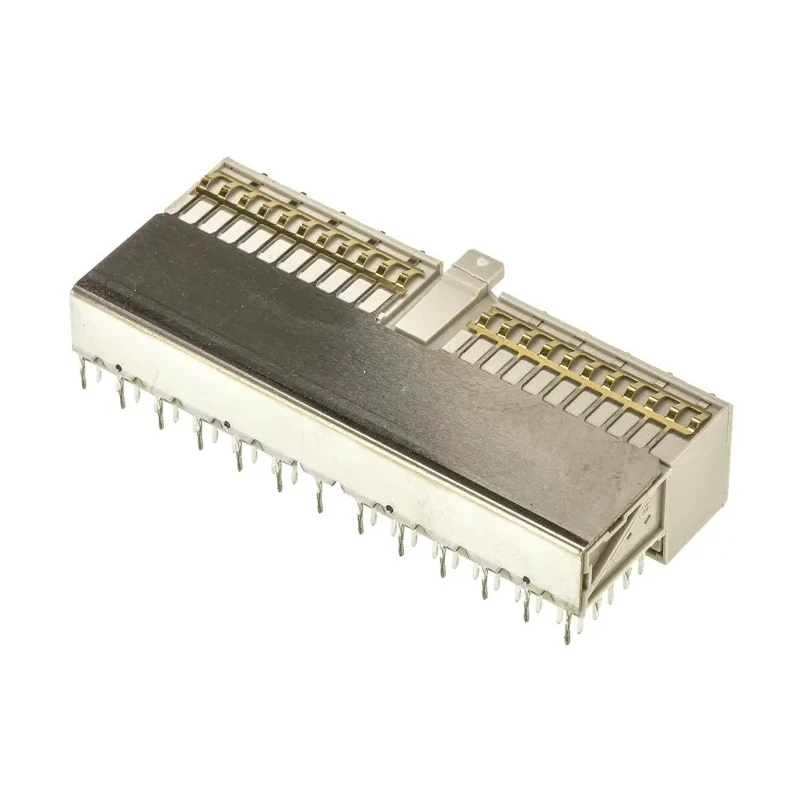

TE Connectivity Z-PACK HM 2 mm Pitch Hard Metric Type A Backplane Connector Right Angle Female 25 Column 5 Row 110 5352068-1

TE Connectivity 5352068-1 Backplane Connector is a high-density, reliable connector designed for compact PCI systems, enabling efficient and secure connections between daughterboards and motherboards or backplanes. Featuring a 2 mm pitch Hard Metric Type A configuration, this connector supports 110 contacts organized in 25 columns and 5 rows, ideal for complex PCB interconnections.

This backplane connector has a right angle orientation with a female configuration, optimized for through-hole mounting with solder termination. The housing is made from polyethylene terephthalate providing excellent durability and performance in rugged environments. Contacts are constructed from phosphor bronze with a gold over nickel plating to ensure strong electrical conductivity and resistance to corrosion.

Designed to function reliably in a wide temperature range from -55°C to 125°C and to handle currents of 1.5A and voltages up to 500V AC, the 5352068-1 is suited for demanding industrial, electronic assembly, and automated manufacturing applications.

The Z-PACK HM series connectors employ press fit technology and Euro-style packaging, facilitating easy insertion and hot-swap capability that benefits real-time applications. The modular design allows use with 32-bit or 64-bit configurations on 3U and 6U PCI cards, making it a versatile solution for various systems.

The connector features a 2 mm pitch with Hard Metric Type A configuration. It has 110 contacts arranged in 25 columns and 5 rows. Designed with right angle orientation and female connector gender. Rated for 1.5A current and a voltage of 500V AC.

Housing is constructed from durable polyethylene terephthalate material. Contacts are made of phosphor bronze with gold over nickel plating for optimal conductivity. Suited for through-hole mount and solder termination type.

Operates reliably between -55°C and 125°C temperature range. Part of the Z-PACK HM series designed for press fit and Euro-style packaging.

This connector is suitable for electronic manufacturing, industrial automation, telecommunications, and other applications requiring high-density, reliable backplane connections. Browse EnvMart’s extensive catalog for compatible connectors and accessories to build or maintain your electronic assemblies efficiently.
