ITT Cannon DLM 2.54 mm Pitch ZIF Plug Body Straight Male 156 Way 127050-0204

Free Delivery in India | Lowest Global Shipping Charges

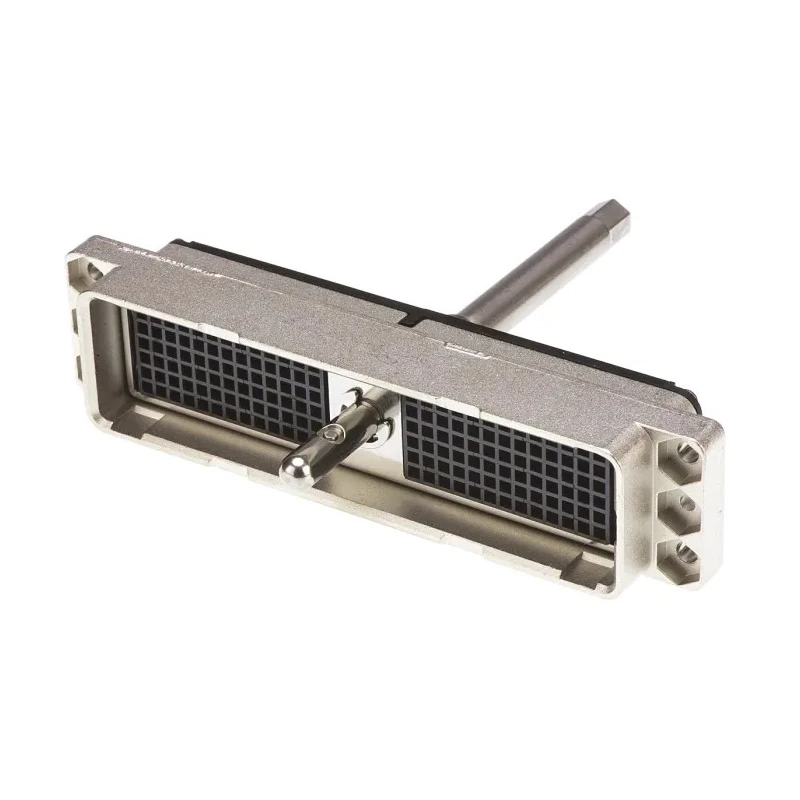

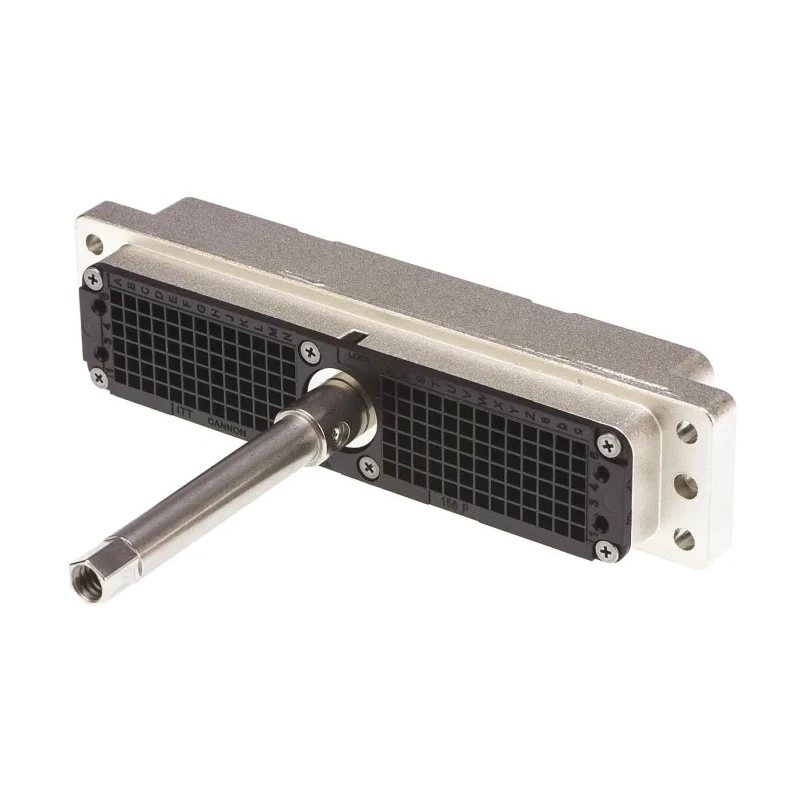

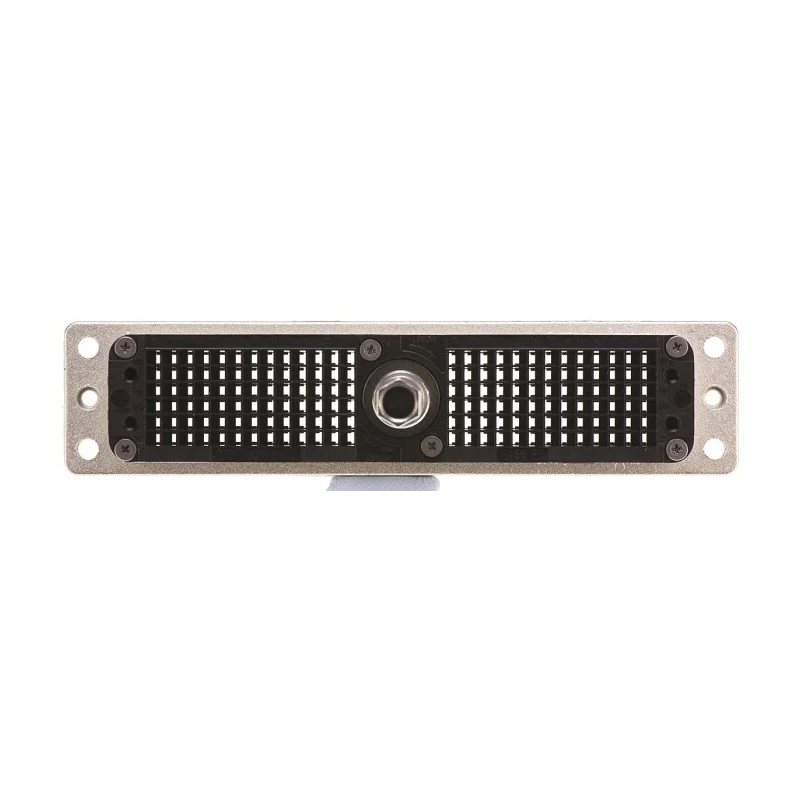

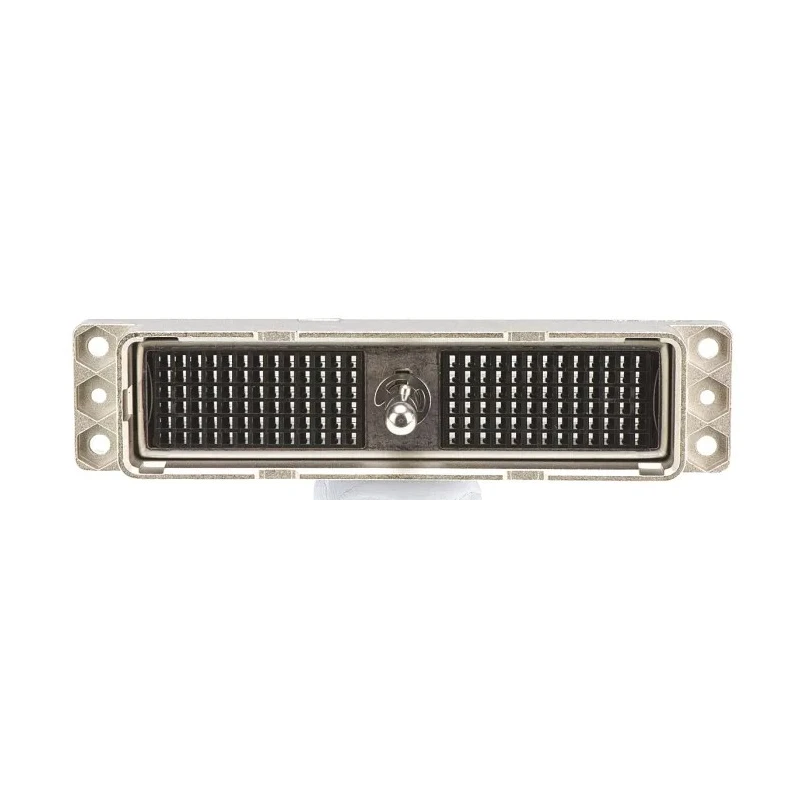

ITT Cannon DLM 2.54 mm Pitch ZIF Plug Body Straight Male 156 Way 127050-0204

Name: ITT Cannon DLM 2.54 mm Pitch ZIF Plug Body Straight Male 156 Way 127050-0204
Brand: ITT CANNON
SKU: 154400
Price: 359.39 USD
Availability: InStock



Category Backplane Connectors Brand ITT CANNON Condition New

Specifications

Country of Origin	China
Voltage	1.2kV ac
Brand	ITT Cannon
Orientation	Straight
Current	5A
Mount Type	Panel
Housing Material	Aluminium Alloy
Contact Material	Beryllium Copper Alloy
Series	DLM
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	156
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Contact Gender	Male
Connector Gender	Male
Backplane Connector Type	ZIF
ITT Cannon DL 156 Way Straight Panel D-Sub Connector MaleBrand	ITT Cannon

Key Features

The connector features a nickel-plated aluminium alloy housing for ruggedness.
It has 156 gold-plated contacts made from beryllium copper alloy for excellent electrical conductivity.
The pitch between contacts is 2.54 mm, ensuring precise alignment and connection.
Rated for a current of 5A and voltage of 1.2 kV AC.
Panel mount type with crimp termination for secure installation.
Operating temperature range from -55°C to 105°C, suitable for harsh environments.
The connector includes a cam actuated zero insertion force coupling for ease of mating.
Applications include broadcast, avionics, computers, and medical instrumentation.

Product Description

ITT Cannon 127050-0204 DLM 2.54 mm Pitch ZIF Plug Body is a high-quality, straight male backplane connector designed for demanding industrial and electronic applications. The rugged aluminum alloy housing is nickel-plated to provide durability and EMI/RFI shielding, while the 156 gold-plated contacts made from beryllium copper alloy ensure reliable electrical performance. This panel mount plug body features a zero insertion force (ZIF) cam-actuated mechanism to minimize contact wear and maintain uniform mating pressure through a shield locking system.

With a pitch of 2.54 mm and current rating of 5A at 1.2 kV AC, this connector delivers stable electrical contact ideal for harsh and sensitive environments. It operates efficiently within a wide temperature range from -55°C to 105°C, making it suitable for broadcast, avionics, computer systems, and precision medical instrumentation. Termination is by crimp, allowing robust and maintainable connections.

The ITT Cannon DLM series emphasizes reliability and high performance, with applications spanning from industrial, laboratory, to manufacturing settings that require secure and EMI-shielded backplane connections. The connector series complies with relevant standards ensuring durability and quality.

The product includes back shell strain relief and polarization options for enhanced connectivity. The shield locking mechanism ensures EMI/RFI protection across all contacts. Compact design fits panel mount installations precisely.

Gold-plated contacts maintain corrosion resistance and conductivity. Suitable for electronic equipment in aerospace, broadcast, and medical fields.

Choose ITT Cannon connectors for secure, durable, and high-performance backplane connection solutions. Browse further ITT Cannon DLM products on EnvMart for compatible accessories and related connectors.
