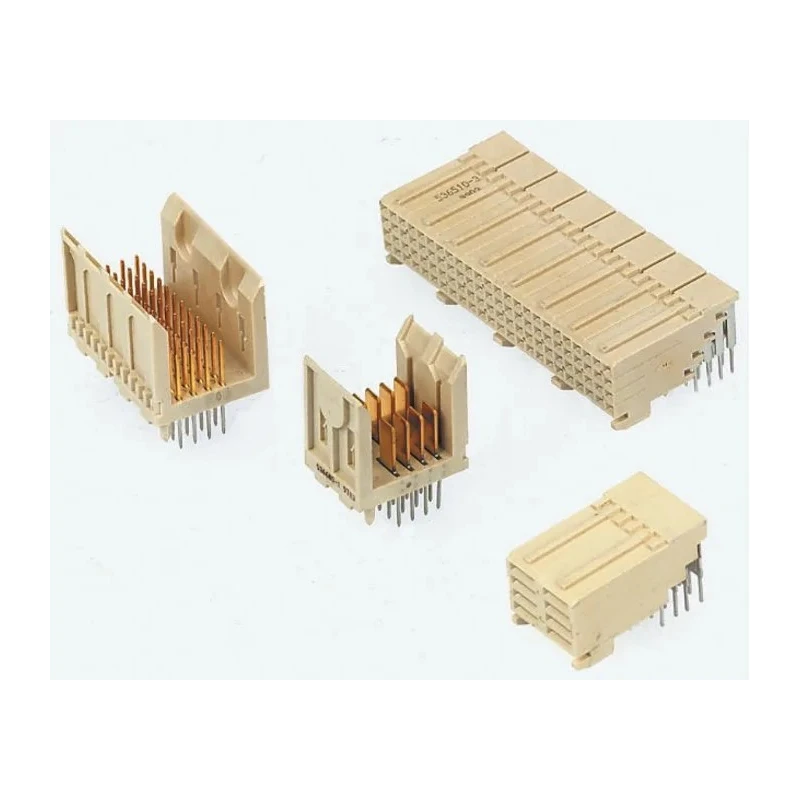

TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector Straight Male 4 Row 48 Way 5536501-2

TE Connectivity 5536501-2 Z-PACK 2 mm Pitch Futurebus+ Backplane Connector is a high performance backplane connector designed for industrial, electronic, and manufacturing applications requiring robust and reliable interconnections. Featuring a straight male orientation with 4 rows and 48 contact ways, this connector provides a high density interface for daughterboards and motherboards connection.

The connector is built with a liquid crystal polymer housing that provides excellent mechanical strength and thermal resistance, operating efficiently across a wide temperature range from -55°C to 125°C. The phosphor bronze contacts feature gold over nickel plating, ensuring high conductivity and corrosion resistance, which is vital for maintaining signal integrity in demanding environments.

With a pitch of 2 mm, the connector complies with Futurebus+ and IEC 1076-4-0X-(48B) standards, facilitating seamless integration in systems requiring high-speed data transmission and power delivery. It supports a voltage rating of 30V AC, aligning with backplane design requirements.

The modular design of Z-PACK connectors allows end-to-end stackability and easy assembly with through-hole mounting technology, offering flexibility in system configurations. Termination is achieved through soldering, ensuring a durable and secure connection that is resistant to vibrations and mechanical stresses common in industrial settings.

This connector is well suited for use in telecommunications, computing, industrial automation, and other electronic equipment requiring reliable multi-row backplane connections. Designed for through-hole mounting in freeboard to fixed board interconnections.

Phosphor bronze contacts plated with gold over nickel ensure excellent conductivity and corrosion resistance. Constructed from liquid crystal polymer housing for enhanced thermal and mechanical durability. Operating temperature range from -55°C to 125°C for harsh environments.

Compliant with Futurebus+ and IEC 1076-4-0X-(48B) standards. Voltage rating of 30V AC suitable for typical backplane voltages. Z-PACK modular system supports high density and high speed signal connections. Solder termination offers strong and reliable electrical connections.

Male connector gender optimized for system interconnections requiring high contact counts.
