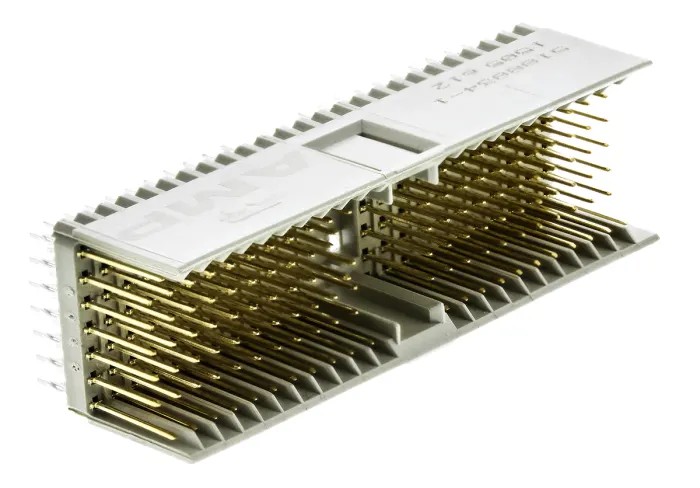

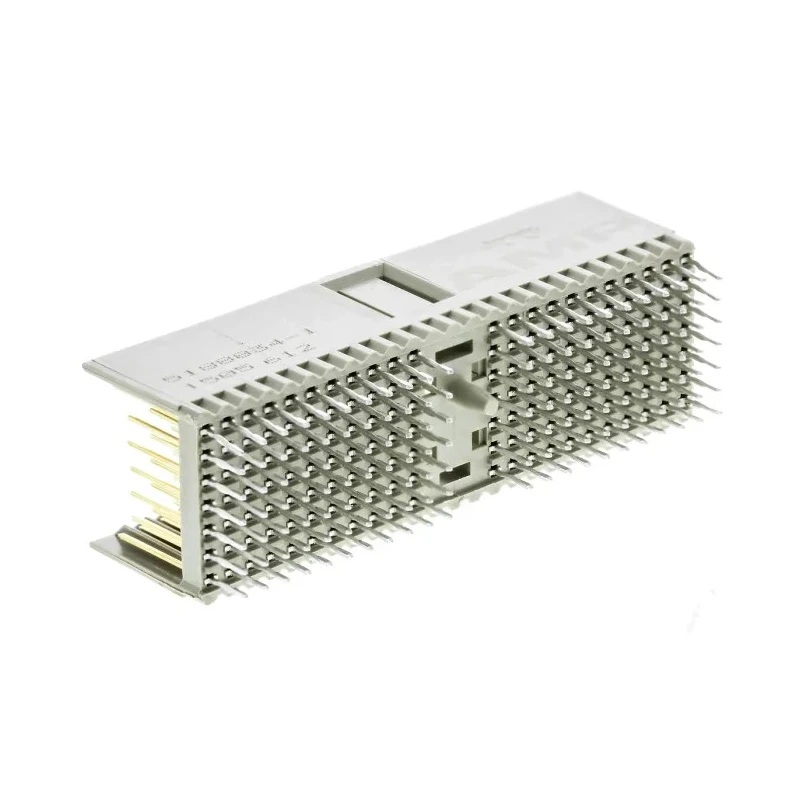

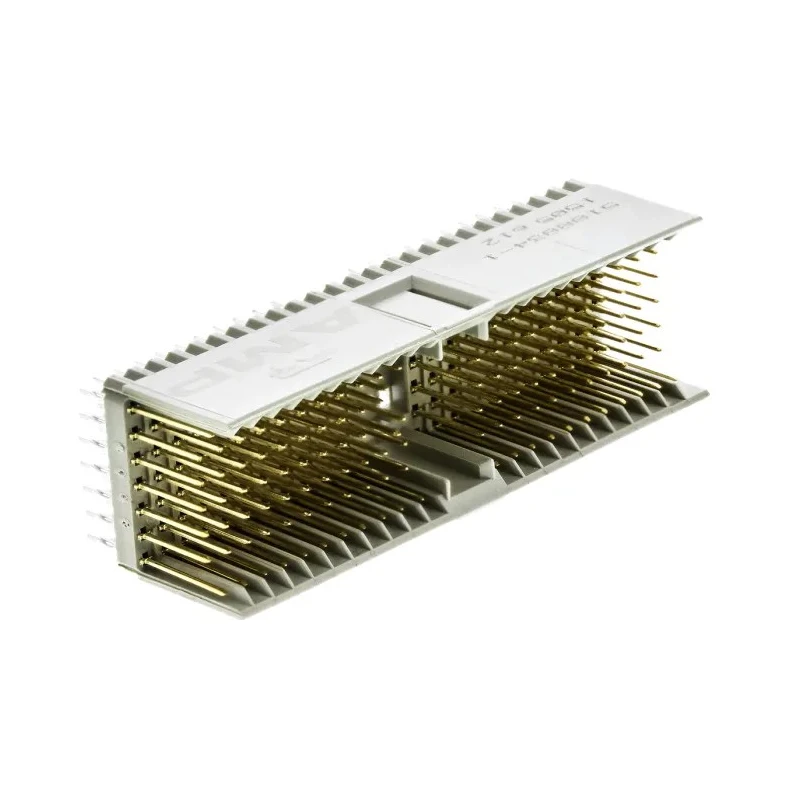

TE Connectivity Z-PACK HM 2 mm Pitch Hard Metric Type A Backplane Connector Straight Male 154 Contacts 5188834-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Z-PACK HM 2 mm Pitch Hard Metric Type A Backplane Connector Straight Male 154 Contacts 5188834-1

Name: TE Connectivity Z-PACK HM 2 mm Pitch Hard Metric Type A Backplane Connector Straight Male 154 Contacts 5188834-1
Brand: TE Connectivity
SKU: 152139
Price: 19.77 USD
Availability: InStock



Category Backplane Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Orientation	Straight
Mount Type	Through Hole
Housing Material	Polyethylene Terephthalate
Contact Material	Phosphor Bronze
Series	Z-PACK HM
Termination Type	Press-in
Number of Rows	7
Number of columns	22
Pitch	2mm
Contact Plating	Gold over Nickel
Number of Contacts	154
Connector Gender	Male
Backplane Connector Type	Hard Metric Type A

Key Features

Designed for compact PCI systems with high performance and reliability.
Features a straight male connector orientation for ease of installation.
Utilizes press-in termination with gold-over-nickel phosphor bronze contacts.
Connector housing made from durable polyethylene terephthalate material.
Supports hot-swap capability for real-time application use.
Mount type is through hole ensuring stable attachment on PCBs.
Configured with 22 columns and 7 rows to provide robust connectivity.
Ideal for industrial, electronics manufacturing, and laboratory applications.

Product Description

TE Connectivity's 5188834-1 model is a Z-PACK HM series backplane connector featuring a 2 mm pitch and hard metric Type A configuration. This straight male connector comprises 154 contacts arranged in 22 columns and 7 rows, designed for board-to-board applications such as motherboards, daughterboards, backplanes, and backpanels.

The connector is engineered using press-fit technology which enables easy insertion and excellent mechanical stability. The phosphor bronze contacts are plated with gold over nickel for enhanced conductivity and corrosion resistance. Its housing is made of high-quality polyethylene terephthalate ensuring durability and heat resistance during operation.

The connector supports hot-swap capabilities, beneficial for real-time system maintenance and replacements without shutdowns, making it suitable in telecommunications, server systems, and industrial controls. Its through-hole mount type provides secure fixing on printed circuit boards, promoting long-lasting reliability.

It enhances production efficiency in electronics assembly and testing environments. High-density connector with 154 contacts arranged in 22 columns and 7 rows. Durable housing made of polyethylene terephthalate material.

Gold-over-nickel plated phosphor bronze contacts for superior conductivity. Press-in termination ensures reliable electrical connections. Compatible with hot-swap real-time applications. Mount type through hole for mechanical stability.

Part of the Z-PACK HM 2 mm pitch interconnection system.
