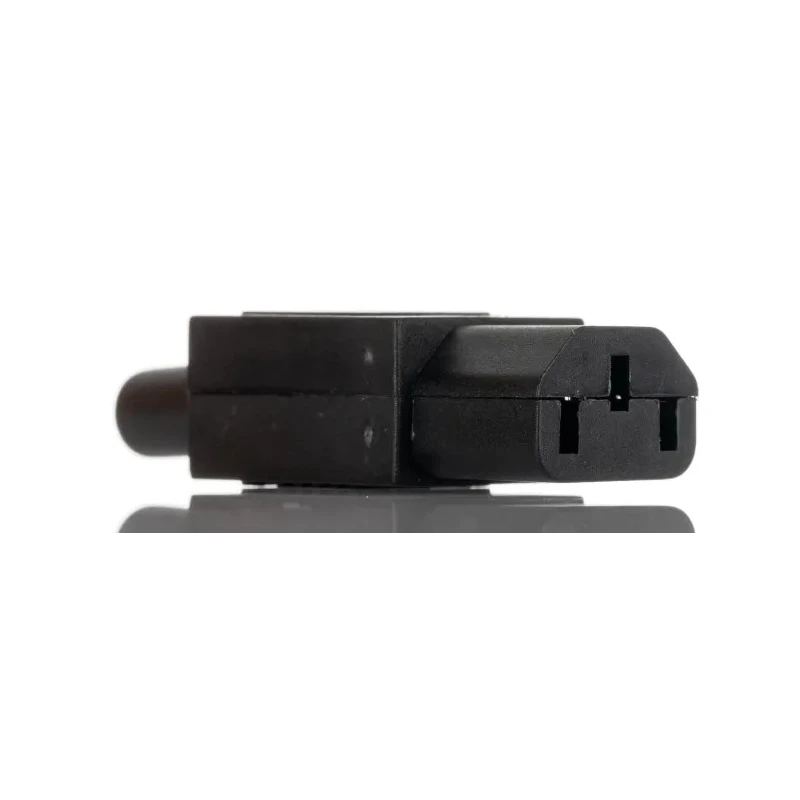

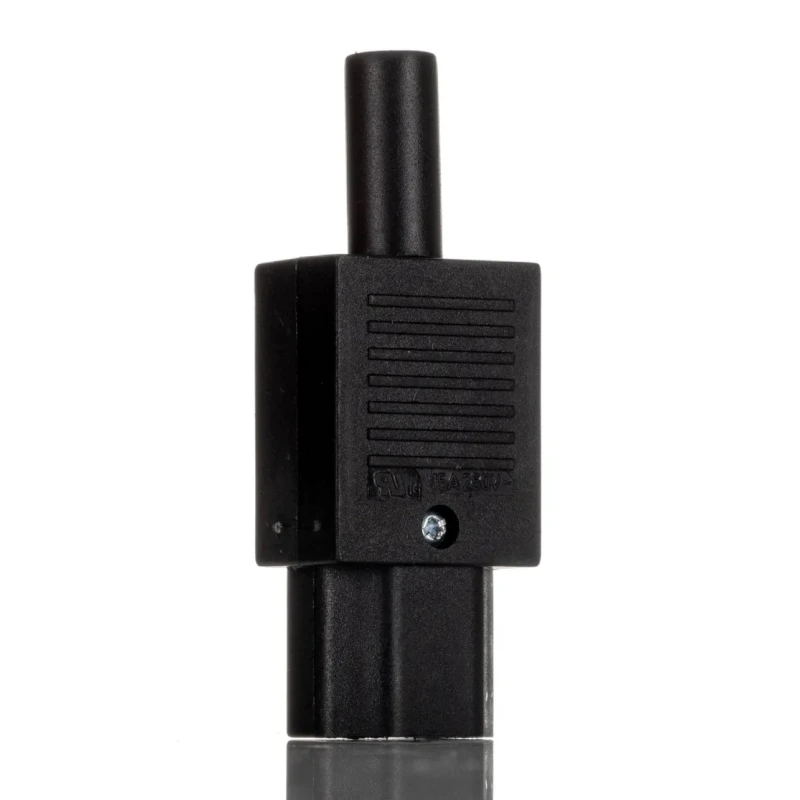

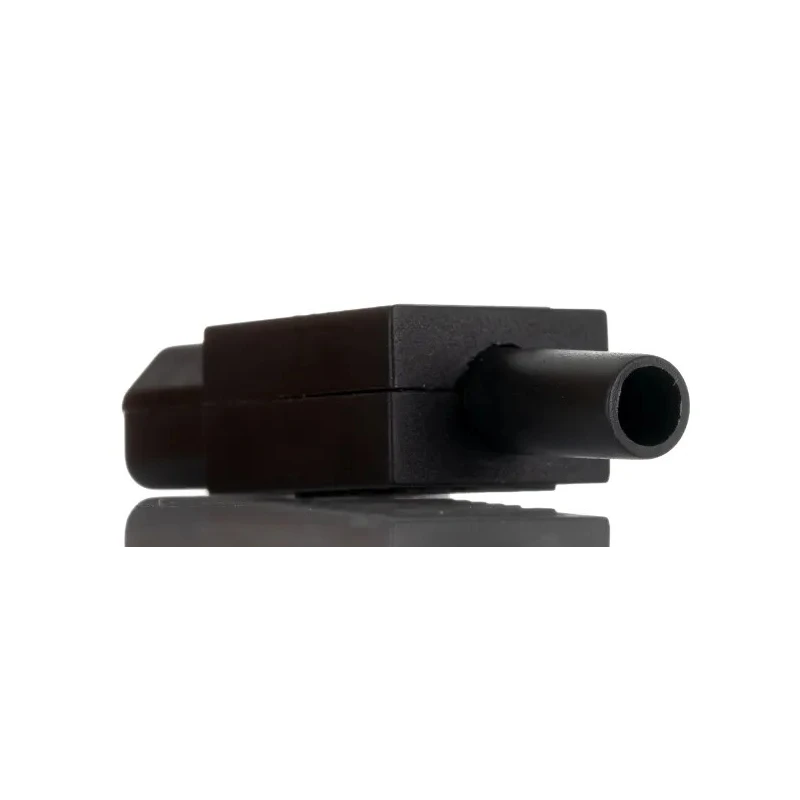

RS PRO C13 Straight Cable IEC Connector Female 250V 10A Rewireable Screw Termination 776-9122

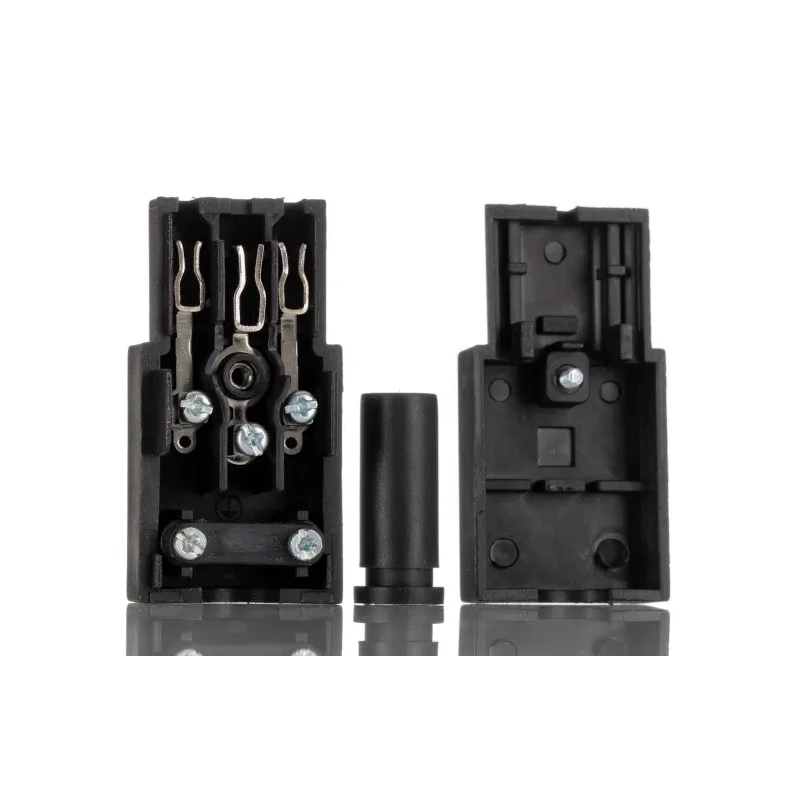

RS PRO 776-9122 is a high-quality rewireable C13 IEC Connector designed for cable mounting applications. Rated at 250V and 10A, this female straight connector allows easy termination using screw terminals without the need for specialized tooling.

Constructed from robust black UL94 V-2 thermoplastic resin, the connector offers strong mechanical durability and reliable insulation. The built-in strain relief provides excellent cable retention, reducing mechanical stress on the cable and contacts during use.

This IEC socket C13 connector complies with IEC-60320 standards that specify performance and safety criteria for appliance couplers. Suitable for operating temperature range from -25°C to +65°C, it withstands HV breakdown test of 2KV AC for one minute and maintains low contact resistance.

Applications include power connections for desktop computers, monitors, printers, audio and video equipment, test instruments, and commercial appliances. The connector mates with C14 appliance inlets and plugs.

The connector features female straight orientation for C13 IEC cables. It is rewireable with simple screw termination for easy assembly. Constructed from durable black UL94 V-2 thermoplastic material for high durability.

An integral strain relief ensures optimal cable retention and support. Rated for 10A current with voltage rating of 250V. Maximum cable diameter supported is 10.5 mm. Suitable for industrial and commercial uses such as desktop computers and audio-visual equipment.

Complies with IEC-60320 international design specifications.

This product is manufactured in India and represents the trusted RS PRO brand known for quality electrical connectors. It is ideal for industrial, commercial, and laboratory use where reliable power connections are essential.
