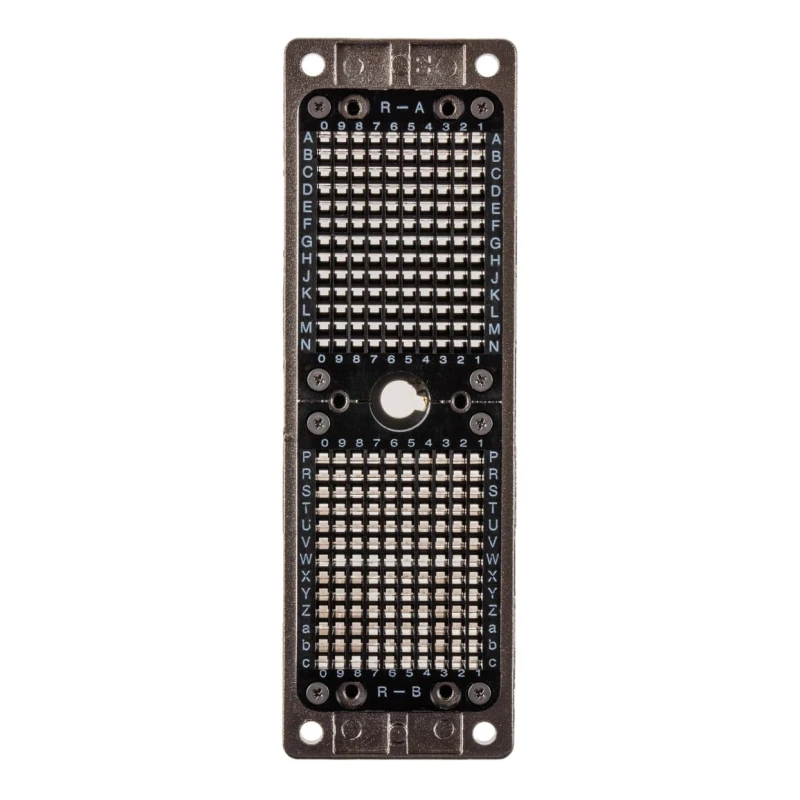

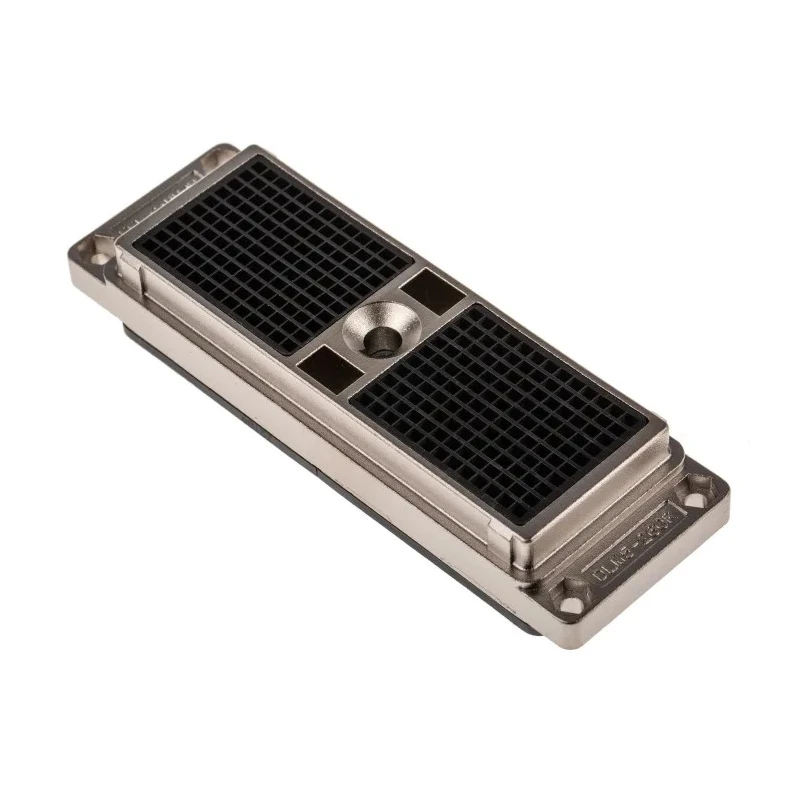

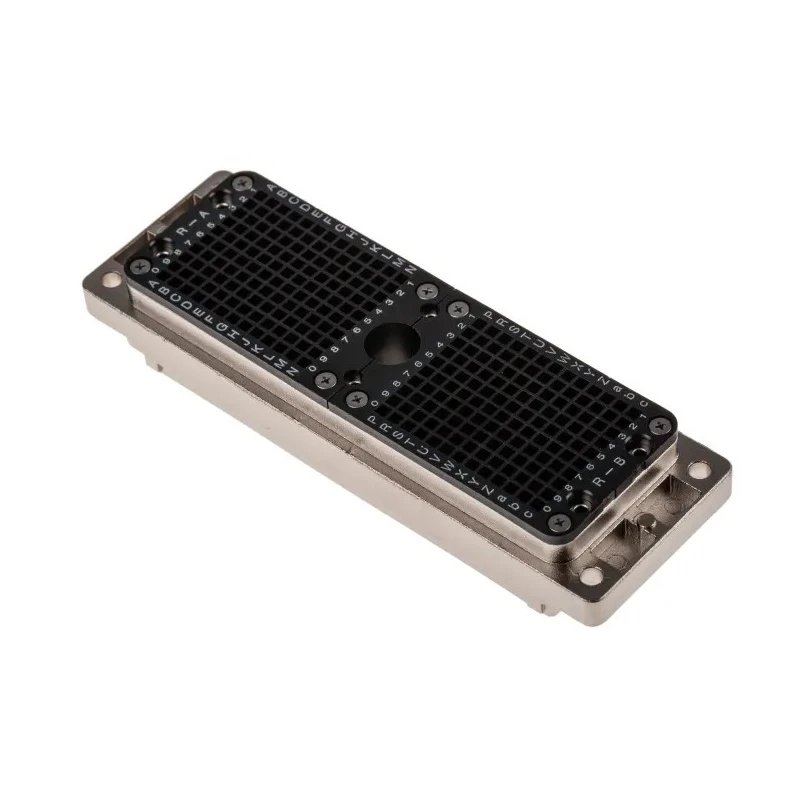

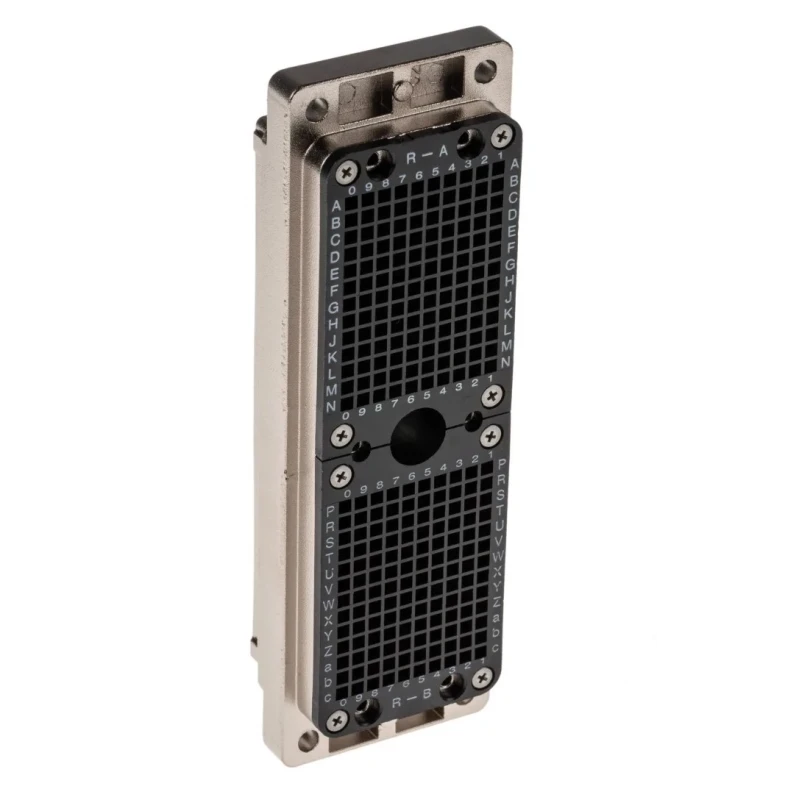

ITT Cannon DLM Backplane Connector 260 Way 2.54 mm Pitch ZIF Socket Body Straight Female 127050-0110
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1.2kV ac |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Panel |
| Housing Material | Aluminium Alloy |
| Contact Material | Beryllium Copper Alloy |
| Series | DLM |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 260 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Contact Gender | Female |
| Connector Gender | Female |
| Backplane Connector Type | ZIF |
| ITT Cannon DL 260 Way Straight Panel D-Sub Connector FemaleBrand | ITT Cannon |
Key Features
- The connector features a cam actuated zero insertion force coupling mechanism ensuring easy mating.
- It offers a current rating of 5A and voltage rating of 1.2kV ac.
- Constructed with an aluminium alloy housing and beryllium copper alloy contact material plated with gold for durability.
- Designed for panel mounting with crimp termination type and supports operating temperatures from -55°C to 105°C.
- This 260 contact connector is ideal for instrumentation, medical equipment, broadcast, and avionics applications.
- Ensures uniform mating pressure around the perimeter for EMI/RFI shielding.
Product Description
ITT Cannon 127050-0110 Backplane Connector is a high-performance DLM series socket body with a 2.54 mm pitch. This straight female connector features 260 contacts with a cam actuated zero insertion force (ZIF) coupling mechanism, allowing effortless and reliable mating.
The connector housing is constructed from robust aluminium alloy, while contacts are made from beryllium copper alloy with gold plating to ensure excellent conductivity and corrosion resistance. It is rated for a current of 5A and voltage of 1.2kV ac, suitable for demanding electrical requirements.
Designed for panel mounting, it uses a crimp termination type and operates efficiently within a temperature range from -55°C to 105°C, making it highly versatile for industrial and commercial environments.
This connector includes features to ensure uniform mating pressure around its perimeter, providing reliable EMI and RFI shielding critical for sensitive electronic equipment. Commonly employed in instrumentation, medical devices, computer systems, broadcast, and avionics industries, this connector offers dependable performance and durability.
The connector features a cam actuated zero insertion force coupling mechanism ensuring easy mating. It offers a current rating of 5A and voltage rating of 1.2kV ac. Constructed with an aluminium alloy housing and beryllium copper alloy contact material plated with gold for durability.
Designed for panel mounting with crimp termination type and supports operating temperatures from -55°C to 105°C. This 260 contact connector is ideal for instrumentation, medical equipment, broadcast, and avionics applications.
Ensures uniform mating pressure around the perimeter for EMI/RFI shielding.
This ITT Cannon connector is a reliable solution for those requiring a ZIF backplane connector with high contact density and secure coupling mechanisms in industrial and laboratory environments.
Explore other ITT Cannon backplane and rack connectors for your electronic component needs on EnvMart.
Explore more products in our Backplane Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 5A and a voltage rating of 1.2kV ac.
The housing is made from aluminium alloy, while the contacts are constructed from beryllium copper alloy and plated with gold.
It operates efficiently within a temperature range from -55°C to 105°C.
This connector features 260 contacts.
It uses a crimp termination type.
Yes, it is designed for panel mounting.
The pitch size is 2.54 mm.
It is classified as a ZIF (Zero Insertion Force) backplane connector.
This connector is commonly employed in instrumentation, medical devices, broadcast, and avionics applications.
Yes, it ensures uniform mating pressure around the perimeter for effective EMI/RFI shielding.
It complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.
The orientation of this connector is straight.
