TDK Chassis Mount EMC Filter 3 Phase, Terminal Block, 12A, 520V AC, 50Hz / 60Hz B86301U0012R000

Free Delivery in India | Lowest Global Shipping Charges

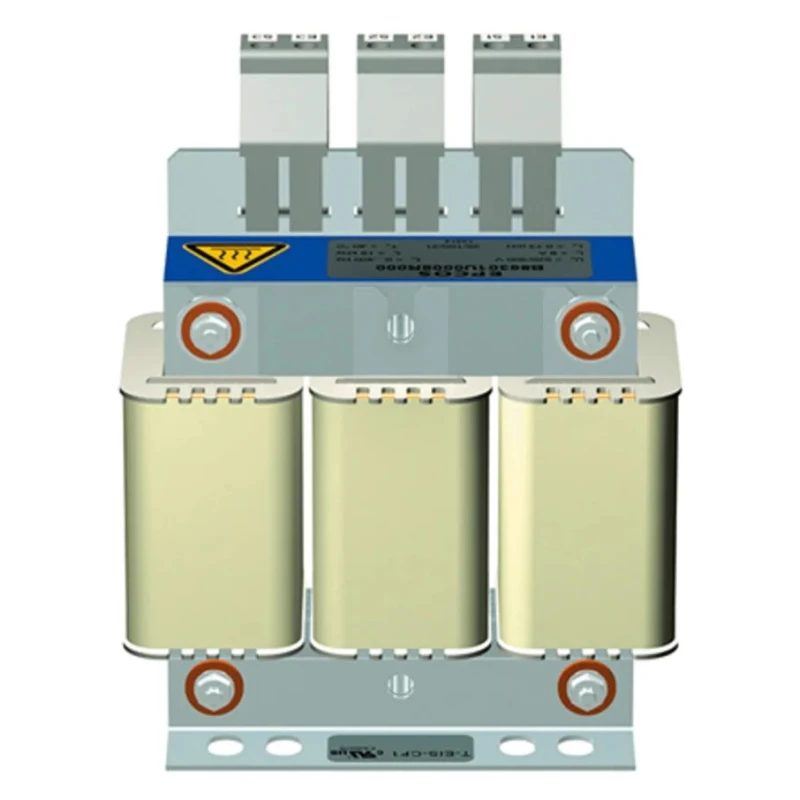

TDK Chassis Mount EMC Filter 3 Phase, Terminal Block, 12A, 520V AC, 50Hz / 60Hz B86301U0012R000



Category EMC Filter Brand TDK Condition New

Specifications

Country of Origin	Hungary
Brand	TDK
Height	140mm
Length	125mm
Model	B86301U0012R000
Depth	80mm
Packaging	Bulk
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	B86301U
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	31mΩ
Minimum Operating Temperature	-25°C
Maximum Current	12A
Number of Phases	3
Maximum Voltage	520V ac
Inductance	400μH
Standards/Approvals	cURus
Termination Style	Terminal Block
Power Loss	19W

Key Features

Provides dv/dt reduction to protect motors and reduce voltage stress.
Features a terminal block termination style for secure connections.
Constructed for chassis mounting with robust IP protection levels.
Compatible with frequency converters for motor drives in HVAC, pumps, and conveyor systems.
Operates reliably between -25°C and 100°C in industrial environments.
Complies with IEC60076-6 and cURus standards ensuring high safety and quality.
Compact size with dimensions 125mm length, 80mm depth, and 140mm height.
Has a total inductance of 400μH and resistance of 31mΩ with power loss rated at 19W.

Product Description

The TDK B86301U0012R000 is a high-performance chassis mount EMC filter engineered for 3-phase power line filtering applications. Designed specifically for motor cables and full load operations, this EMC filter supports a maximum current of 12A at 520V AC voltage with an operating frequency of 50Hz and 60Hz.

This model features a terminal block termination style for secure electrical connection and is optimized for chassis mounting with a compact form factor measuring 125mm in length, 80mm in depth, and 140mm in height. It offers excellent dv/dt reduction and reduces voltage stress on connected motor equipment, thereby enhancing motor durability and operational stability.

The B86301U series complies with IEC60076-6 standards and holds the cURus approval, ensuring that the filter meets international safety and quality benchmarks. It is suitable for use in industrial applications such as frequency converters for motor drives found in traction and conveyor systems, HVAC installations, pumps, and elevators.

Operating temperature ranges from -25°C up to 100°C allow it to perform reliably in challenging industrial environments. The filter has an inductance value of 400μH, resistance of 31mΩ, and a power loss rating of 19W, making it efficient for continuous operation without excess heat generation.

Provides dv/dt reduction to protect motors and reduce voltage stress. Features a terminal block termination style for secure connections. Constructed for chassis mounting with robust IP protection levels. Compatible with frequency converters for motor drives in HVAC, pumps, and conveyor systems.

Operates reliably between -25°C and 100°C in industrial environments. Complies with IEC60076-6 and cURus standards ensuring high safety and quality. Compact size with dimensions 125mm length, 80mm depth, and 140mm height.

Has a total inductance of 400μH and resistance of 31mΩ with power loss rated at 19W.

This product is manufactured in Hungary and is supplied in bulk packaging. Ideal for industrial, manufacturing, HVAC, and transportation applications requiring reliable EMC noise filtering.

Discover high-quality EMC Filter solutions like the TDK B86301U0012R000 with EnvMart for enhanced motor protection and compliance with international standards.
