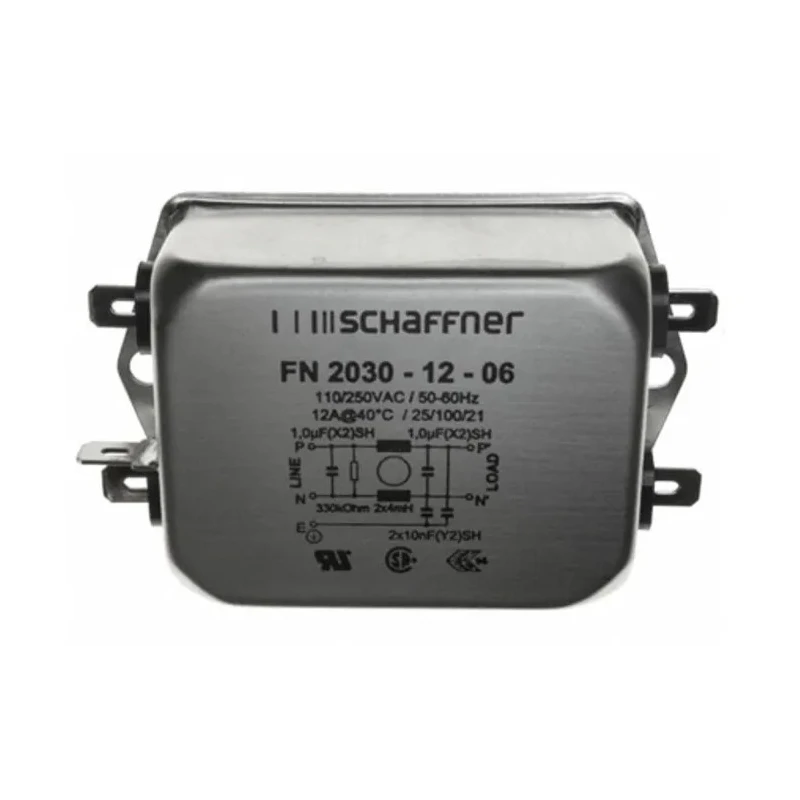

Schaffner Chassis Mount EMI Filter 12A 250V ac/dc 400Hz Fast-On Termination 1 Phase FN2030
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 30.3mm |
| Length | 85mm |
| Model | FN2030 |
| Depth | 54mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 400Hz |
| Series | FN2030 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 330kΩ |
| Capacitance | 10nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 12A |
| Number of Phases | 1 |
| Leakage Current | 870μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 4mH |
| Termination Style | Fast-On |
| Power Loss | 7.6W |
Key Features
- Fast-On termination style ensures quick and secure electrical connections.
- Single-stage EMI filter optimized for chassis mounting.
- Compact dimensions of 85mm length, 54mm depth, and 30.3mm height.
- Capacitance of 10nF and inductance of 4mH for effective noise suppression.
- Operation temperature ranges from -25°C to 100°C for versatile environments.
- Low leakage current of 870μA supports energy efficiency.
- Power loss rated at 7.6W for stable performance.
- Designed for use in electrical and electronic equipment requiring EMI noise reduction.
Product Description
Schaffner FN2030 EMI filter is a premium-grade chassis mount filter designed to reduce electromagnetic interference in electronic and electrical devices. With a maximum current capacity of 12A and voltage rating of 250V ac/dc at a frequency of 400Hz, this single-phase filter offers efficient noise suppression for sensitive equipment.
This EMI filter features a fast-on termination style providing easy and reliable connections for rapid installation. The 10nF capacitance combined with 4mH inductance creates effective filtering performance, ideal for consumer, household, medical, and data processing equipment.
Its compact size (85mm length x 54mm depth x 30.3mm height) and chassis mount configuration make it suitable for applications where space is constrained but high attenuation is required. The filter is designed to operate safely across a temperature range from -25°C to +100°C with low leakage current of 870μA, ensuring stable, energy-efficient function.
Power loss of 7.6W ensures the filter maintains thermal stability in demanding environments. It is suitable for diverse industrial, laboratory, commercial, and HVAC applications where electromagnetic noise filtering is critical.
Fast-On terminal for quick, secure installation. 12A maximum current and 250V ac/dc voltage ratings. Single-stage chassis mount design for compactness. High-quality core material ensures excellent attenuation. Wide operating temperature range from -25°C to 100°C.
Low leakage current minimizing energy loss. Robust construction for long-term reliability. Applicable across medical, consumer, electronic data processing sectors. The Schaffner FN2030 filter series is an excellent choice for reducing conducted noise and improving device reliability. Browse more EMI Filter products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FN2030 EMI filter has a maximum current rating of 12A.
This model can handle a maximum voltage of 250V ac/dc.
The FN2030 operates at an operating frequency of 400Hz.
The dimensions of this unit are 85mm in length, 54mm in depth, and 30.3mm in height.
It features a capacitance of 10nF and an inductance of 4mH for effective noise suppression.
The operating temperature range for this model is from -25°C to 100°C.
This unit uses a Fast-On termination style for quick and secure electrical connections.
The power loss rating for this filter is 7.6W.
The leakage current is rated at 870μA, which supports energy efficiency.
This filter is a single-stage design, optimized for chassis mounting.
It is suitable for consumer, household, medical, and data processing equipment, among others.
The resistance rating for this model is 330kΩ.
