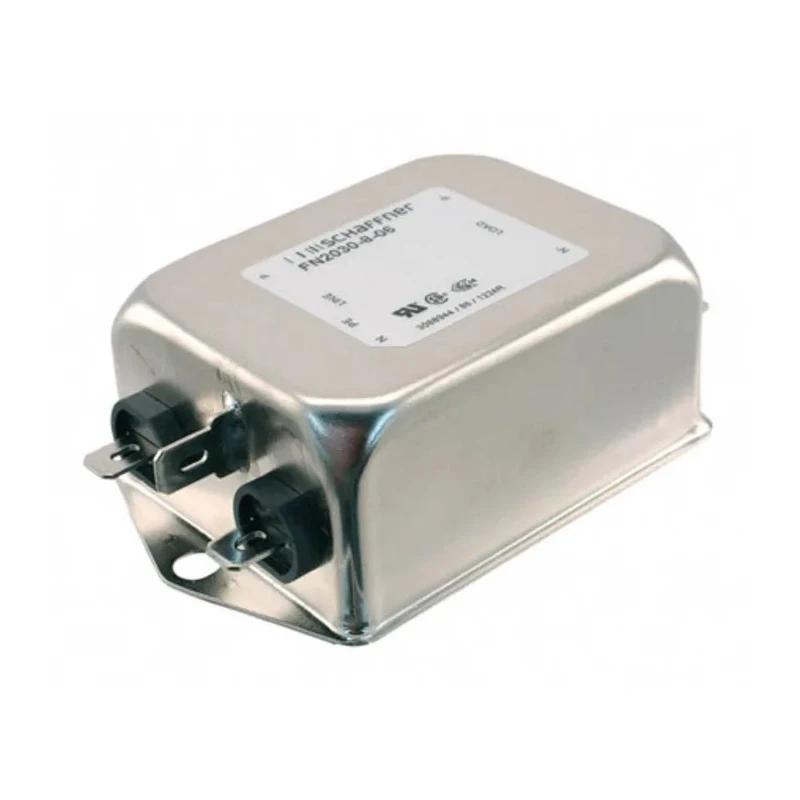

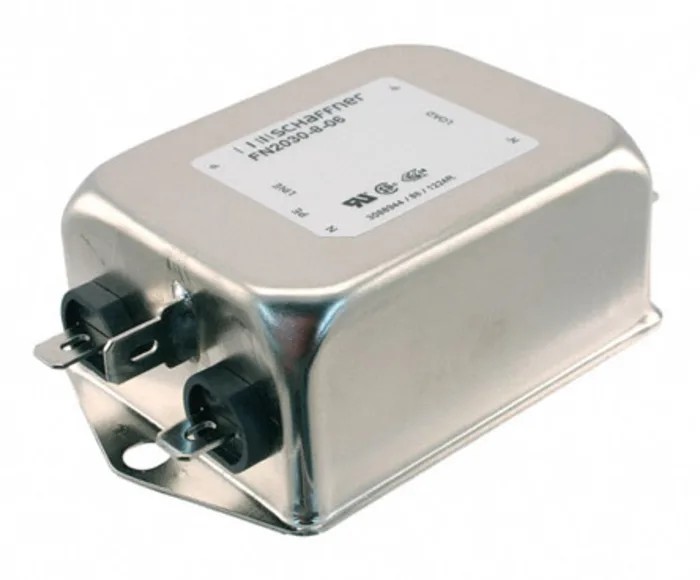

Schaffner Chassis Mount EMI Filter 8 A 250V ac/dc 400Hz Fast-On Termination FN2030
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 30.3mm |
| Length | 54mm |
| Model | FN2030 |
| Depth | 54mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 400Hz |
| Series | FN2030 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 680kΩ |
| Capacitance | 470nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 8A |
| Number of Phases | 1 |
| Leakage Current | 730μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 8mH |
| Termination Style | Fast-On |
| Power Loss | 3.1W |
Key Features
- High performance EMI filter for reducing electromagnetic interference in electronic equipment.
- Features fast-on termination for quick and secure connections.
- Compact chassis mount design measuring 54 mm length, 54 mm depth, and 30.3 mm height.
- Capacitance of 470nF and inductance of 8mH for effective noise suppression.
- Operates reliably between -25°C and 100°C with a leakage current of 730μA.
- Power loss rating of 3.1 watts ensuring efficient filtering with minimal energy waste.
- Resistance value of 680kΩ providing stable electrical characteristics.
- Suitable for electrical, electronic, household, medical, and data processing equipment requiring EMI filtering.
Product Description
Schaffner FN2030 is a premium chassis mount EMI filter designed for single-phase electrical and electronic equipment requiring effective noise suppression at 250V ac/dc and 400Hz frequency. This filter supports a maximum current of 8 amperes and features a fast-on termination style for secure and fast installation.
The filter offers exceptional conducted attenuation performance thanks to chokes with highly permeable core materials and excellent thermal behavior, making it suitable for a wide range of industrial, household, medical, and data processing applications where reduced electromagnetic interference is critical for device reliability and compliance.
With a capacitance of 470nF, inductance of 8mH, and a leakage current of 730μA, the FN2030 filter maintains stable operation within operating temperatures from -25°C to 100°C and a power loss of only 3.1 watts. Its compact form factor measuring 54 mm by 54 mm by 30.3 mm enables easy chassis mounting in constrained spaces.
The filter’s resistance is rated at 680kΩ, and it features a single stage in the FN2030 series, delivering high differential mode attenuation. Various terminal options and optional surge pulse protection are available to meet specific design requirements. Optional medical (B type) and safety (A type) versions further enhance suitability across applications.
High performance filter attenuation ensuring electromagnetic compliance. Robust chassis mount design for secure installation in electrical assemblies. Fast-on termination style allows quick connection and maintenance. Operating frequency optimized at 400 Hz for industrial and electronic environments.
Wide operating temperature range from -25°C to 100°C. Low leakage current of 730μA for safety and efficiency. Compliant with UL, CSA, EN, and IEC international standards for EMI filters. Suitable for use in consumer goods, medical, household, and electronic data processing equipment.
Optional surge pulse protection and specialized versions available. Compact dimensions for easy integration in power line filter systems.
This EMI filter is ideal for industrial, laboratory, HVAC, manufacturing, and commercial environments requiring EMI mitigation to ensure regulatory compliance and high reliability of sensitive electrical systems. Choose Schaffner FN2030 for superior EMI filtering performance and durability in demanding applications. Explore more EMI Filters and components in EnvMart’s Electronics & Electrical category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FN2030 EMI filter has a maximum current rating of 8 amperes.
This model measures 54 mm in length, 54 mm in depth, and 30.3 mm in height.
It operates reliably within a temperature range of -25°C to 100°C.
The capacitance of this filter is 470nF, which aids in effective noise suppression.
This model features a Fast-On termination style for quick and secure connections.
The power loss rating for this EMI filter is 3.1 watts, ensuring efficient filtering with minimal energy waste.
The inductance of this filter is 8mH, contributing to its noise suppression capabilities.
This EMI filter is suitable for electrical, electronic, household, medical, and data processing equipment requiring EMI filtering.
The leakage current for this filter is rated at 730μA.
It is compliant with UL, CSA, EN, and IEC international standards for EMI filters.
This model features a single stage in its design, providing high differential mode attenuation.
The maximum voltage rating for this EMI filter is 250V ac/dc.
