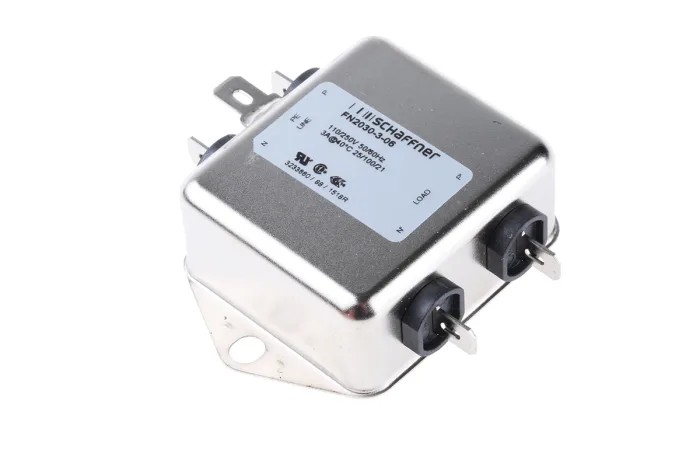

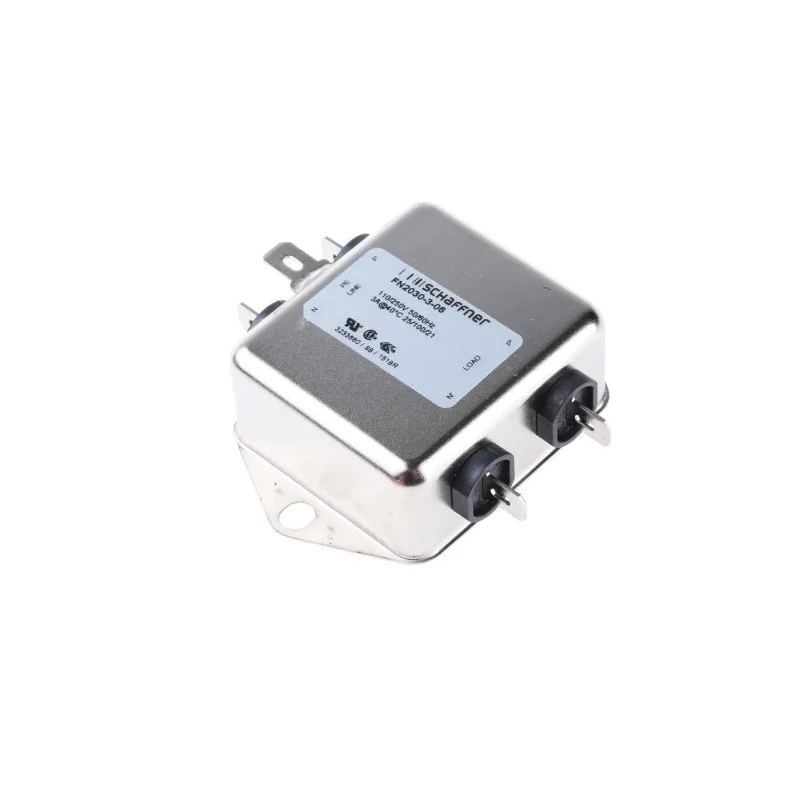

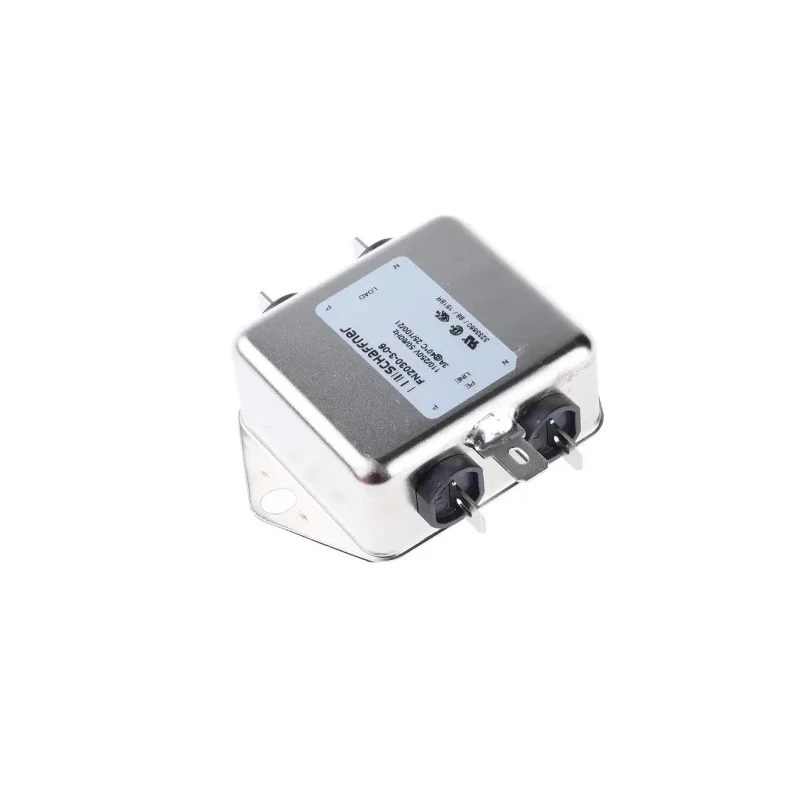

Schaffner Chassis Mount EMI Filter 3A 250V AC/DC 400Hz Fast-On 1 Phase FN2030

Schaffner FN2030-3-06 is a premium chassis mount EMI filter optimized for capacities of 3 amperes at 250V AC/DC and an operating frequency of 400Hz. This fast-on termination filter is a single-phase, single-stage device engineered for effective suppression of electromagnetic interference in industrial, electronic, and household equipment.

The filter features a capacitance of 330nF and inductance of 14mH, delivering high differential mode attenuation with minimal leakage current of 520μA. With dimensions of 71mm length, 46.6mm depth, and 22.3mm height, it easily mounts on chassis for compact integration.

Designed to function under a wide temperature range from -25°C to 100°C, the FN2030-3-06 ensures reliable performance in varied environmental conditions. Its low resistance of 1mΩ and power loss of 2.2W accentuate energy efficiency during continuous operation.

This filter series uses chokes with a high permeable core material for excellent noise attenuation and superior thermal behavior. It is suitable for applications including electrical and electronic equipment, consumer goods, household and medical devices, and data processing equipment where high EMI suppression is critical.

While no certifications are listed for this model, it is engineered to meet demanding industrial and commercial EMI filtering requirements. The fast-on termination style enables swift installation, ideal for high volume or maintenance-friendly environments.

Maximum current rating of 3 amperes for reliable performance. Supports voltage up to 250 volts AC/DC ensuring versatile use. Single phase, single stage filter design for chassis mounting applications. Fast-On termination style allows quick and secure electrical connections.

Compact dimensions with length 71mm, depth 46.6mm, and height 22.3mm. Capacitance of 330 nanofarads with inductance of 14 millihenries for effective noise filtering. Leakage current rating of 520 microamperes keeps energy losses minimal.

Wide operating temperature range from -25°C to 100°C suits various environments. Low resistance of 1 milliohm to minimize power loss of 2.2 watts. Constructed for excellent attenuation and thermal behavior in electrical and electronic equipment.

For engineers and procurement specialists, the Schaffner FN2030-3-06 EMI filter represents a robust solution for mitigating interference in sensitive and noisy electrical environments. Explore more high-performance EMI Filters and components within the Electronics Components category at EnvMart.
