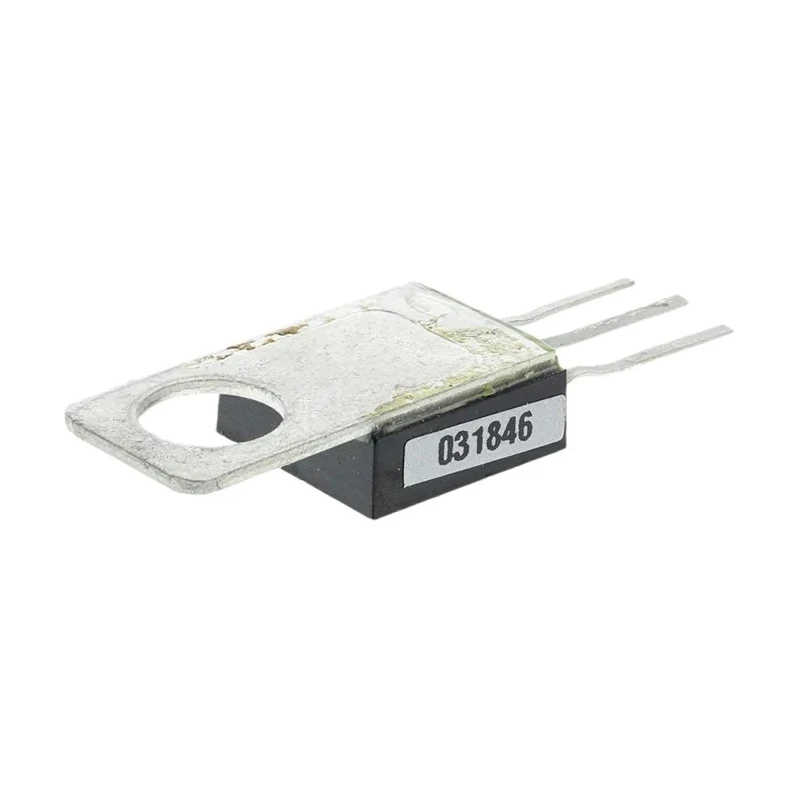

United Automation Single Channel Linear Voltage Regulator 15 A 230V 3-Pin CSR1504B

United Automation CSR1504B is a single channel linear voltage regulator designed for controlling single-phase mains loads with an output current of 15 A at 230V. It is housed in a transistor-style case with an isolated heat sink tab, making it suitable for through-hole mounting applications where efficient thermal management is required.

This voltage regulator is engineered to control power supplied to resistive heating elements such as quartz lamps, ovens, and dryers with precise phase control regulation. It also supports some inductive loads like transformers, fans, and motors, providing versatile usage across different electrical devices.

The CSR1504B operates by phase controlling the power using solid-state electronics and requires external linear potentiometers (220 k or 250 k) to adjust power from 0% up to 98%. This makes it an essential component for applications requiring smooth and adjustable voltage regulation with high current capacity.

With dimensions of 35.7 mm in height, 17.5 mm in length, and 7.6 mm in width, it fits compact setups while sustaining operation in ambient temperatures from 0°C to 70°C. Being manufactured in the United Kingdom ensures compliance with quality and reliability standards, although it does not have specific certifications.

The device is ideal for industrial, laboratory, HVAC, and manufacturing environments where linear voltage regulation and high current capacity are required. Its adjustable output and robust design make it suitable for a wide range of power management applications.

Operates at a maximum input voltage of 230V for single-phase loads. Supports 15A output current with adjustable voltage control. Single channel linear regulator with 3-pin through-hole mounting. Solid-state phase control provides power regulation from 0% to 98%.

Compact form factor with transistor-style housing and heat sink tab. Operating temperature range 0°C to 70°C. Suitable for resistive and inductive load applications. Manufactured in the United Kingdom with quality assurance.

Applications include industrial automation, HVAC, and power management systems. Explore further Voltage Regulators and power management ICs to meet your industrial automation and electronic component needs at EnvMart.
