United Automation 16 A 480V AC 60Hz 3 Phase Chassis Mount EMC Filter Terminal Block A-EN358-16-T-RS

Free Delivery in India | Lowest Global Shipping Charges

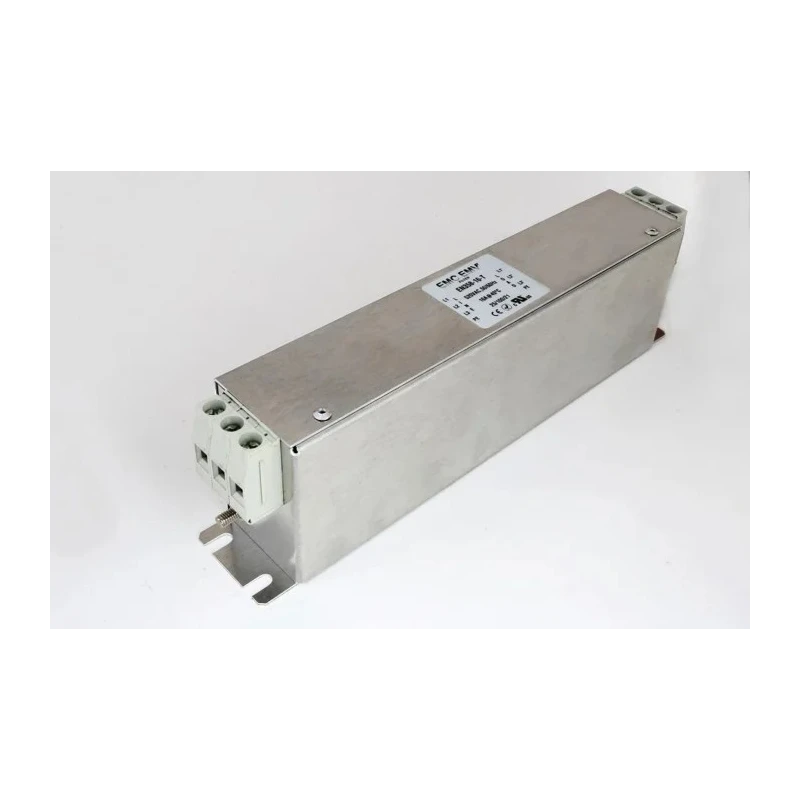

United Automation 16 A 480V AC 60Hz 3 Phase Chassis Mount EMC Filter Terminal Block A-EN358-16-T-RS

Name: United Automation 16 A 480V AC 60Hz 3 Phase Chassis Mount EMC Filter Terminal Block A-EN358-16-T-RS
Brand: United Automation
SKU: 288655
Price: 230.7 USD
Availability: InStock



Category Terminal Block Brand United Automation Condition New

Specifications

Country of Origin	India
Brand	United Automation
Model	A-EN358-16-T-RS
Mount Type	Chassis Mount
Operating Frequency	60Hz
Series	380
Maximum Operating Temperature	100°C
Number Of Stages	1
Minimum Operating Temperature	-25°C
Maximum Current	16A
Number of Phases	3
Maximum Voltage	480V ac
Standards/Approvals	CSA 22.2 NO 8, UL 1283, IEC 60939
Termination Style	Terminal Block

Key Features

Rated for maximum current of 16A.
Designed to operate at maximum voltage of 480V AC.
Features compact and slim chassis mount design with terminal block termination.
Operates efficiently at frequency of 60Hz with one stage filtration.
Operates reliably in temperature range from -25°C to 100°C.
Meets standards CSA 22.2 NO 8, UL 1283, and IEC 60939.
Excellent saturation resistance for cable lengths up to 50 meters.
Offers trouble-free installation in minimal mounting spaces.

Product Description

United Automation A-EN358-16-T-RS is a 3 phase, 16 Amp EMC (Electromagnetic Compatibility) line filter designed for AC power applications at 480V and 60Hz frequency. It is suitable for use with three-phase variable speed motor drives, servo drives, inverters, and converters, providing effective suppression of electromagnetic interference (EMI) and radio-frequency interference (RFI).

The filter features a compact and slim chassis mount design with terminal block termination that allows installation in environments where mounting space is limited. The product ensures excellent saturation resistance for cable lengths up to 50 meters, making it reliable for various industrial and commercial electrical installations.

This EMC filter operates safely within temperature ranges from -25°C to 100°C and complies with important safety and performance standards including CSA 22.2 NO 8, UL 1283, and IEC 60939. Its single stage configuration targets interference reduction on power lines, thereby enhancing equipment performance and protecting sensitive electronics from noise.

Applications of this filter include industrial motor control systems, automation equipment, power electronics, and other electrical systems that require stringent EMI/RFI control for operational safety and performance stability.

Rated for 16 Amp maximum current. 480V AC maximum voltage rating. Chassis mount type for space-efficient installation. Terminal Block termination style. Operates at 60Hz frequency. Single-stage filtration design. Temperature operating range of -25°C to 100°C.

Certified to CSA 22.2 NO 8, UL 1283, IEC 60939 standards. Excellent saturation resistance up to 50 meters cable length. Compact and slim form factor.

For reliable EMI filtering in three phase AC power applications, the United Automation A-EN358-16-T-RS provides a robust and compact solution. Explore more EMC filters suited for industrial electronics and power line noise suppression on EnvMart.
