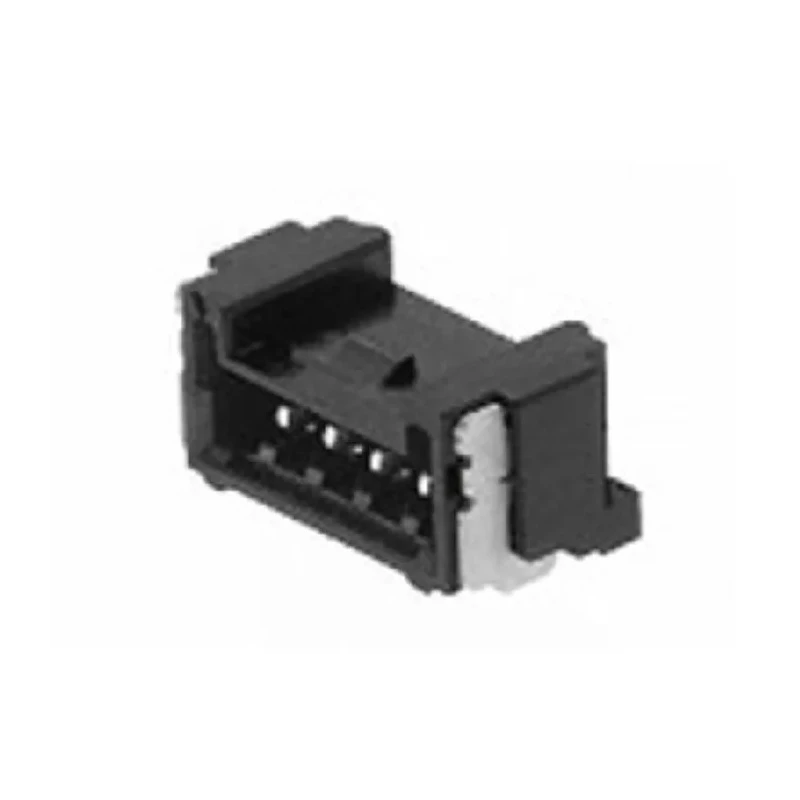

Molex Micro-Lock Plus Series Right Angle Surface PCB Header 6 Contacts 1.25 mm Pitch Shrouded 505567-0681

Free Delivery in India | Lowest Global Shipping Charges

Molex Micro-Lock Plus Series Right Angle Surface PCB Header 6 Contacts 1.25 mm Pitch Shrouded 505567-0681

Name: Molex Micro-Lock Plus Series Right Angle Surface PCB Header 6 Contacts 1.25 mm Pitch Shrouded 505567-0681
Brand: Molex
SKU: 115572
Price: 1.45 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	Malaysia
Voltage	50V
Brand	Molex
Orientation	Right Angle
Current	1.5A
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Brass
Series	Micro-Lock Plus
Termination Type	Gold Plated Termination
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	1.25mm
Standards/Approvals	UL E29179
Contact Plating	Gold
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	2mm

Key Features

Designed for surface mount with right angle orientation.
Constructed with polyamide housing for enhanced durability.
Gold plated brass contacts ensure reliable electrical performance.
Supports operating temperatures from -40°C up to 105°C.
Rated for 50V AC/DC voltage and 1.5A current capacity.
Shrouded design enhances connector security and alignment.
Contact gender is male with 2 mm mating pin length.
Complies with UL E29179 standard for safety and quality.

Product Description

Molex 505567-0681 Micro-Lock Plus Series Right Angle Surface PCB Header is engineered for efficient wire-to-board connections in electronic devices and assemblies. Featuring a compact 1.25 mm pitch with 6 gold plated brass contacts in one row, this shrouded header ensures secure and precise mating. Its polyamide housing provides robust mechanical stability suitable for industrial and commercial electronic applications.

The right angle surface mount design supports printed circuit board layouts requiring space-efficient and reliable connectors. Operating temperature ranges from -40°C to +105°C allow the header to function reliably under various environmental conditions.

This PCB header is rated for a voltage of 50V AC/DC and carries up to 1.5A current, making it suitable for low power electronic circuits. Compliance with UL E29179 underscores its safety and quality credentials.

Right angle orientation for versatile PCB mounting. 1.25 mm pitch supports fine-pitch design requirements. Polyamide housing for insulation and durability. Gold plated male brass contacts ensure excellent conductivity. Shrouded design protects pins and facilitates proper alignment.

Wide operating temperature range from -40°C to 105°C. Voltage rating at 50 volts and current rating at 1.5 amperes. Mating pin length is 2 mm for secure connections. UL E29179 certified, ensuring product reliability. Manufactured in Malaysia with strict quality standards.

This Molex Micro-Lock Plus PCB header is ideal for applications in electronics manufacturing, test and measurement equipment, communication devices, and industrial control systems. It provides a dependable interface for interconnecting wires and printed circuit boards where space optimization and performance are necessary.

Browse EnvMart's comprehensive range of PCB Headers and connectors for industrial, commercial, and laboratory electronic projects to find compatible components with superior quality and performance guarantees.
