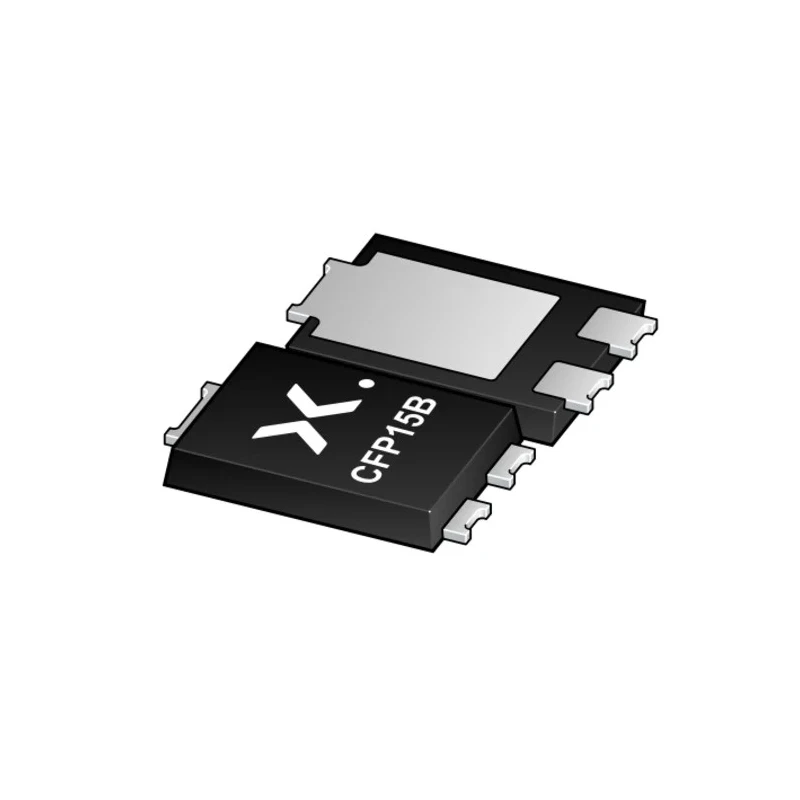

Nexperia 200 V 2 A Dual Common Cathode Hyperfast Recovery Rectifier Hyperfast Switching 3-Pin CFP15B PNE20040CPEZ

Nexperia PNE20040CPEZ dual common cathode hyperfast recovery rectifier is a high power density device designed for use in demanding electronic circuits requiring fast switching and efficient rectification. The device is rated for a maximum peak reverse voltage of 200 V and a continuous forward current of up to 2 A per diode, housed in a compact 3-pin CFP15B surface mount package with a typical height of 0.95 mm.

Constructed using planar die technology combined with clip-bond techniques, the rectifier offers low inductance and excellent thermal management enabling high power capability. Its hyperfast switching characteristics are reflected in its 25 ns peak reverse recovery time, making it ideal for high frequency applications.

Operating temperature ranges from -55°C to 175°C provide robust performance even in harsh industrial, automotive, and commercial environments. The device meets RoHS compliance and conforms to the automotive AEC-Q101 qualification standard, assuring reliability for vehicle electronics.

This rectifier’s dual diode common cathode configuration allows for versatile use in circuits requiring dual-path rectification. Its low forward voltage drop of 980 mV reduces power losses, enhancing overall efficiency.

Applications include solenoid control, piezoelectric injection systems, freewheeling diode circuits, and general-purpose rectification tasks in power supplies and automotive electronics. The SMD package facilitates automated assembly and compact PCB designs.

Mount type is surface for easy PCB soldering. Maximum forward voltage drop is 980 mV ensuring efficient performance. Peak non-repetitive forward surge current rating is 100 A. Operates from -55°C up to 175°C for wide temperature reliability.

Peak reverse recovery time is exceptionally low at 25 ns for high-speed switching. Produces low inductance due to planar die design and clip-bond technology. Encapsulated in a CFP15B (SOT1289B) plastic package with 0.95 mm height.

Complies with RoHS and AEC-Q101 automotive standards. Suitable for solenoid control, piezo injection, freewheeling, and general-purpose rectification. Dual diode configuration with common cathode enhances circuit flexibility.
