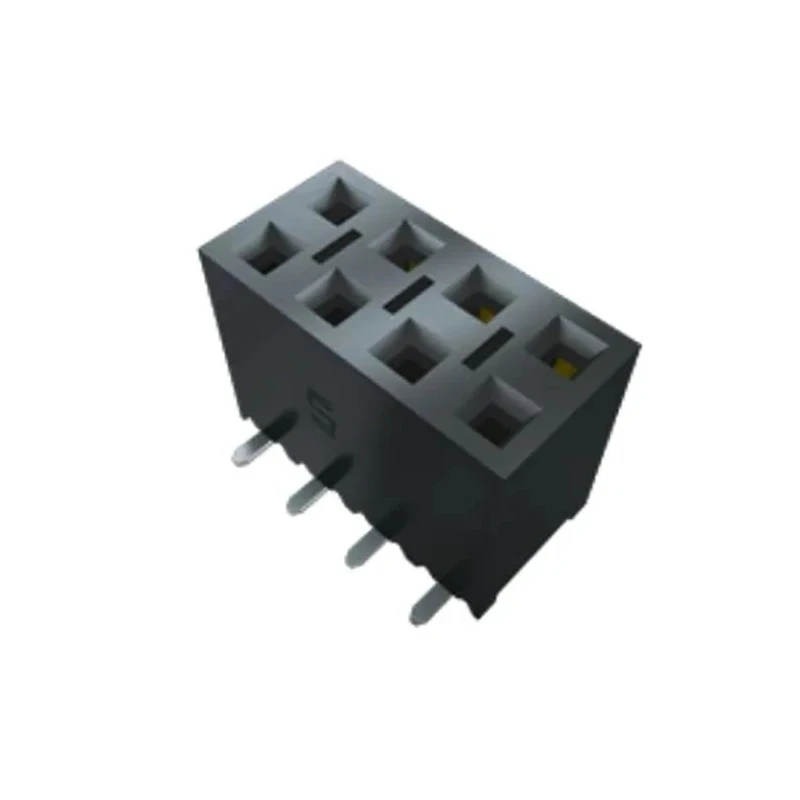

Samtec SSM Series Vertical Surface Mount 38-Contact, 2 Row 2.54 mm Pitch PCB Socket SSM-119-L-DV

Samtec SSM-119-L-DV is a vertical surface mount PCB socket designed for demanding electronic and electrical applications. It features 38 female contacts arranged in 2 rows with a 2.54 mm pitch, suitable for board-to-board connections requiring reliable mechanical and electrical performance.

The housing is made from black liquid crystal polymer, providing a robust and heat-resistant platform to withstand operating temperatures ranging from -55°C to 125°C. The contacts are fabricated from phosphor bronze and plated with a 0.25μm layer of gold to ensure excellent electrical conductivity and corrosion resistance.

This socket supports a current rating of 5.2 A and voltage rating of 572 V, making it suitable for various power and signal transmission use cases. Its termination type is solder, compatible with standard surface mount soldering processes.

The design features a vertical orientation that facilitates board stacking and compact installations. With a row pitch of 2.5 mm and a female contact gender, this socket is used widely in electronics manufacturing, PCB assembly, and power distribution modules.

While not certified to specific standards, the product meets practical industrial use requirements for PCB connectors and related components. The Samtec SSM series provides reliable and durable connectors used in industrial electronics, power electronics, assembly automation, telecommunications, and computing devices.

Constructed with liquid crystal polymer housing for high durability. Contacts are made of phosphor bronze with 0.25μm gold plating ensuring excellent conductivity. Rated for current capacity of 5.2 A and voltage up to 572 V.

Designed for board-to-board connector system with vertical orientation. Supports operating temperatures from -55°C up to 125°C. Termination type is solder, making it suitable for surface mount applications. Row pitch is 2.5 mm and contact gender is female.

Lacks formal standards or approvals but designed to industry quality. Ideal for electronic components and power connectors in PCB socket and wire housing applications. Explore more high-quality PCB Sockets and electronic connectors at EnvMart to support your industrial and manufacturing needs.
