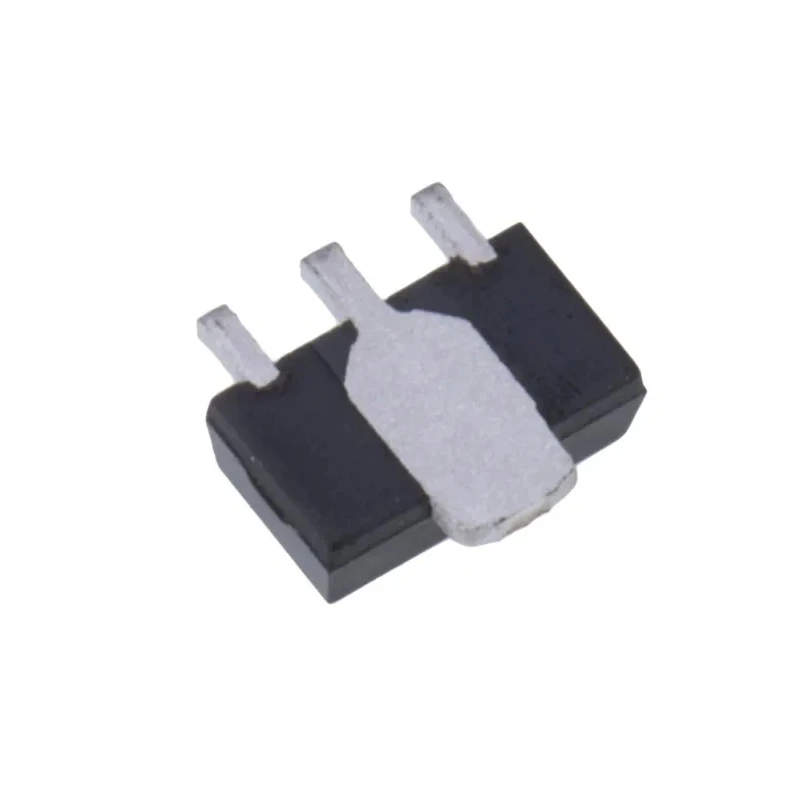

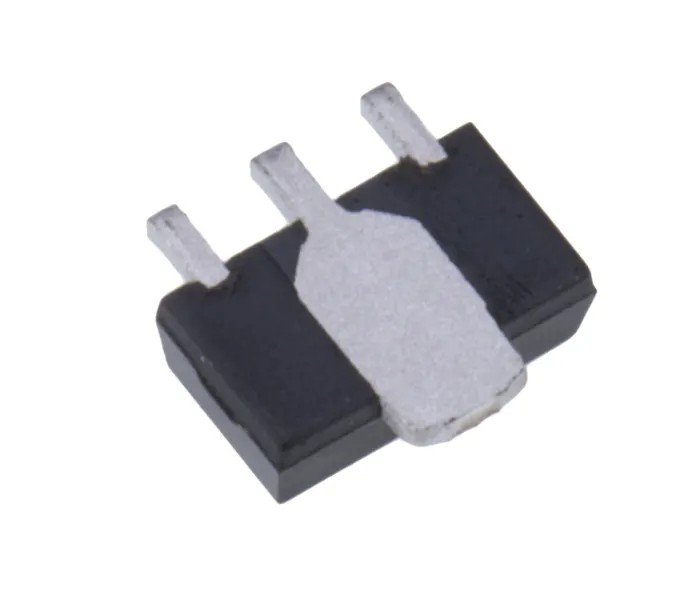

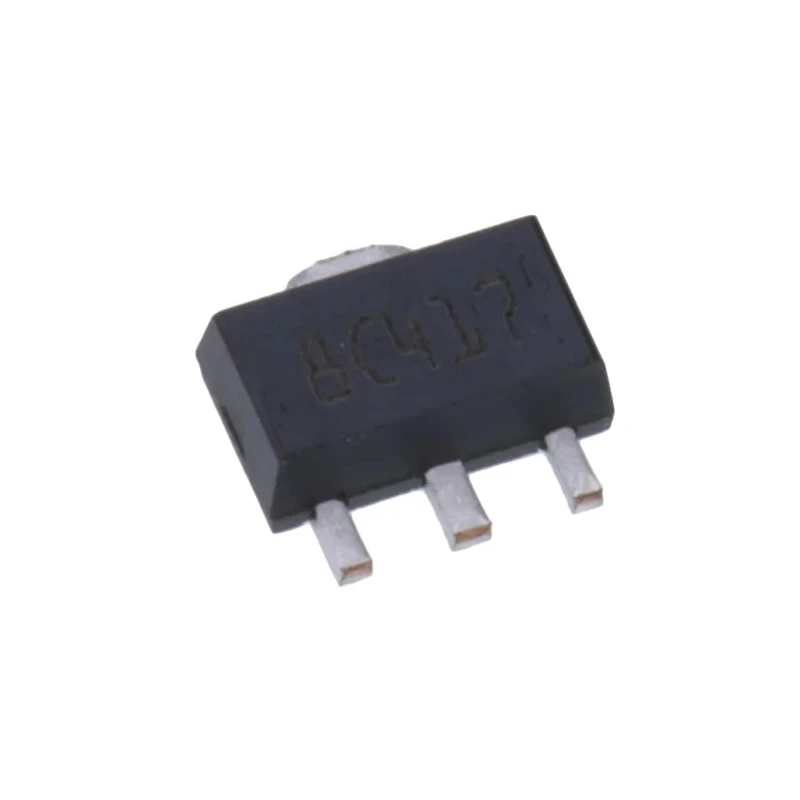

STMicroelectronics Linear Voltage Regulator 30V 100mA Positive Polarity SOT-89 Package L78L05ABUTR
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Regulators STMicroelectronics, Voltage Regulator 30V SOT-89 3-Pin RS Stock No |
| Brand | STMicroelectronics |
| Height | 1.6mm |
| Length | 4.6mm |
| Model | L78L05ABUTR |
| Width | 2.6mm |
| Mount Type | Surface |
| Series | L78Lxx |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-89 |
| Polarity | Positive |
| Maximum Input Voltage | 30V |
| Quiescent Current | 6mA |
| Pin Count | 3 |
Key Features
- Compact SOT-89 surface mount package with 3 pins ensures easy PCB integration.
- Low quiescent current of 6mA enables efficient power management.
- Thermal shut-down and internal current limiting protect the device during overloads.
- Supports maximum operating temperature up to 125°C for reliability in harsh conditions.
- Designed for linear voltage regulation with stable positive output voltage.
- Ideal for embedded systems requiring regulated power supply in electronics and industrial applications.
- Manufactured in China with consistent quality from STMicroelectronics.
Product Description
STMicroelectronics L78L05ABUTR is a three-terminal linear voltage regulator designed to provide a fixed positive output voltage with up to 100mA load current capacity. Its compact SOT-89 package measures 4.6mm length, 2.6mm width, and 1.6mm height, making it suitable for space-sensitive PCB layouts.
This voltage regulator features internal current limiting and thermal shut-down mechanisms that ensure device protection against overload and overheating scenarios, improving reliability for long-term use.
The device operates with a maximum input voltage of 30V and can withstand operating temperatures up to 125°C. It has a low quiescent current of 6mA, which helps reduce power loss in applications where energy efficiency is critical.
Commonly used in power management circuits for embedded systems, industrial controllers, and electronic devices, the L78L05ABUTR ensures stable voltage supply for sensitive components requiring regulated power.
Compact 3-pin SOT-89 surface mount package for easy PCB mounting. Positive polarity linear voltage regulation. Internal current limiting and thermal shutdown for safety. Low quiescent current of 6mA for efficient operation.
Operating temperature up to 125°C ensures reliability. Maximum input voltage rating of 30V supports varied applications. This voltage regulator is ideal for use in industrial, electronic component manufacturing, and general electronics power supply circuits.
Explore similar products in the EnvMart Semiconductor Voltage Regulators category for additional options and technical specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for the L78L05ABUTR is 30V.
This linear voltage regulator can support a load current capacity of up to 100mA.
The quiescent current for this model is 6mA, which helps in efficient power management.
The SOT-89 package measures 4.6mm in length, 2.6mm in width, and 1.6mm in height.
It features internal current limiting and thermal shutdown mechanisms to protect against overload and overheating.
The L78L05ABUTR can operate at a maximum temperature of up to 125°C.
This model provides a positive polarity output for linear voltage regulation.
It is designed for surface mounting, making it suitable for space-sensitive applications.
It is commonly used in power management circuits for embedded systems, industrial controllers, and electronic devices.
This voltage regulator is part of the L78Lxx series.
The L78L05ABUTR has a pin count of 3.
This voltage regulator is manufactured in China.
