| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTA124EQB-QZ |
| Mount Type | Surface |
| Series | PDTA124E |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -50V |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -10V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | -100mA |
| Transistor Configuration | PNP |

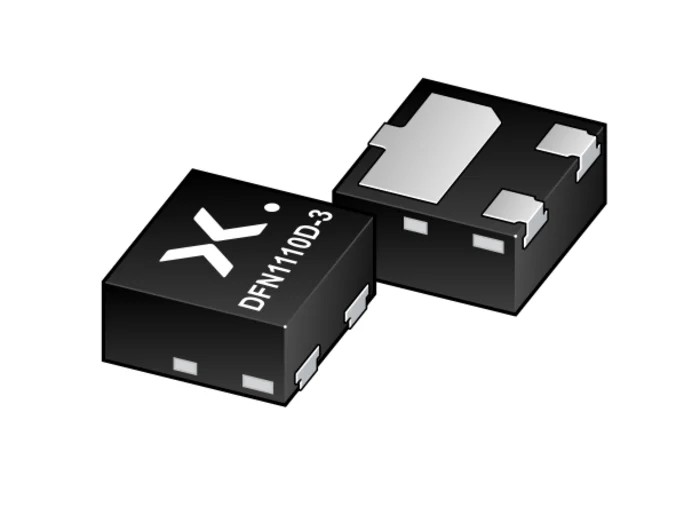

Nexperia PDTA124EQB-QZ Resistor-Equipped Transistor is a 100 mA PNP transistor housed in an ultra-small 3-pin DFN1110D-3 (SOT8015) leadless surface-mount device package. It features integrated resistors, which streamline circuit designs by reducing the number of external components required.
This transistor supports a maximum collector emitter voltage of 50 V and a maximum emitter base voltage of 10 V. Its low profile package height of 0.5 mm is ideal for compact PCB assembly in automated industrial manufacturing.
The device is well-suited for digital applications such as switching loads and controlling IC inputs. The built-in resistors reduce pick and place costs and enable easier automatic optical inspection (AOI) of solder joints through side-wettable flanks.
It complies with RoHS environmental regulations and meets the AEC-Q101 automotive standard for reliability in automotive electronics. Operating temperature ranges from -55°C to 150°C, making it robust for industrial, automotive, and commercial electronics environments.
100 mA maximum DC collector current. 50 V maximum collector emitter voltage. Built-in resistors simplify circuit design and reduce component count. Low package height of 0.5 mm for compact designs. Side-wettable flanks enable automated solder joint inspection.
RoHS compliant and meets AEC-Q101 automotive standard. Wide operating temperature range from -55°C to 150°C.
This resistor-equipped transistor is an ideal component for industrial semiconductor applications, digital switching, and automotive electronics where reliability and compact packaging are critical. Explore more Nexperia semiconductors and Bipolar Transistors on EnvMart for your design and production needs.
