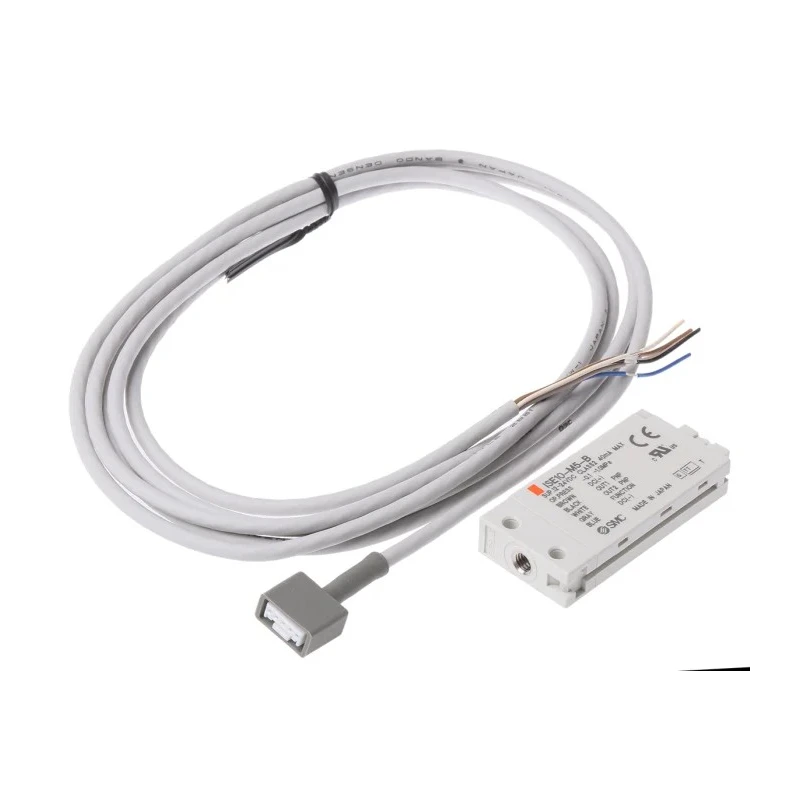

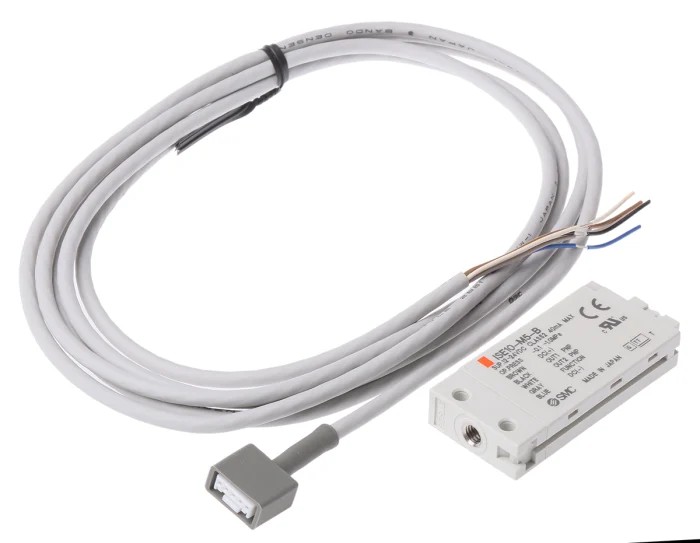

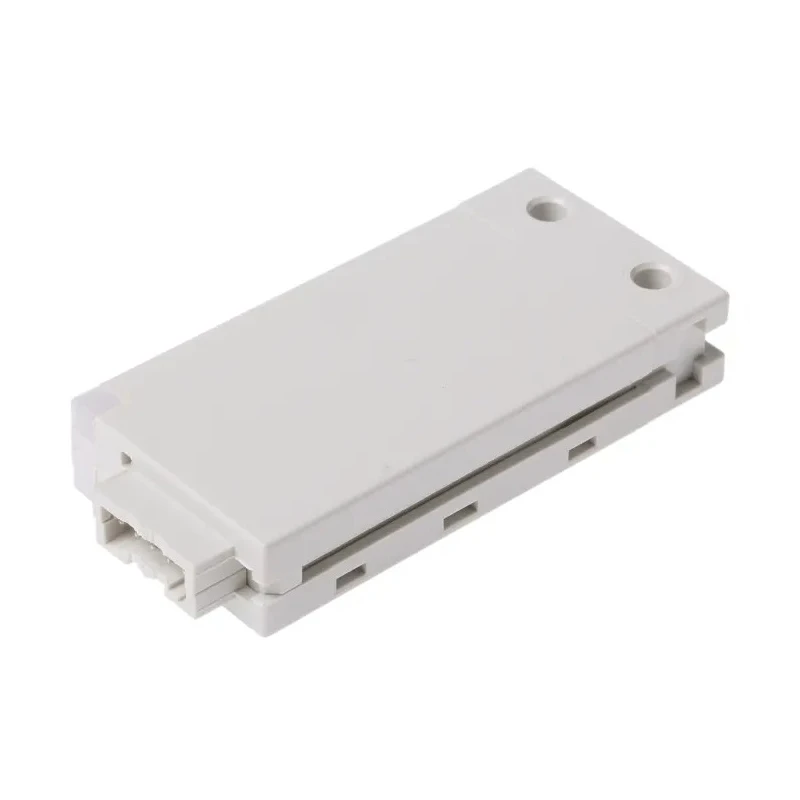

SMC Pneumatic Pressure Sensor 24V DC 1 MPa IP40 Accuracy 2% FS Female M5 Port

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Pressure Sensor 24V DC 1 MPa IP40 Accuracy 2% FS Female M5 Port



Category Pneumatic Sensors & Switches Brand SMC Condition New

Specifications

Country of Origin	Japan
Accuracy	2 % FS
Voltage	24V dc
Brand	SMC
Maximum Operating Pressure	1 Mpa
Height	56mm
Model	IP40
Depth	53.4mm
IP Rating	IP40
Width	25mm
Mount Type	DIN Rail, Direct, Panel
Series	ISE10
Maximum Operating Temperature	50°C
Pressure Type	Positive Pressure
Port Type	Side
Switch output	PNP
Port Size	M5
Minimum Operating Temperature	-5°C
Standards/Approvals	CE, CSA, UL
Connection Thread Standard	Metric
Electrical Connection Type	Lead Wire
Minimum Operating Pressure	0.1MPa
Port Gender	Female
Suitable Medias	Air, Gas, Non-Corrosive Gas

Key Features

Designed for pneumatic applications with air, gas, and non-corrosive gas compatibility.
Features a 2% FS accuracy for reliable pressure measurements.
Equipped with a female M5 side port and PNP switch output.
Mountable on DIN Rail, direct, or panel for flexible installation.
Operates in temperature ranges from -5°C to 50°C with CE, CSA, and UL certifications.
Low profile design with dimensions 56mm height, 25mm width, and 53.4mm depth.
Includes digital display for easy monitoring.
IP40 enclosure rating protects against solid objects larger than 1 mm.

Product Description

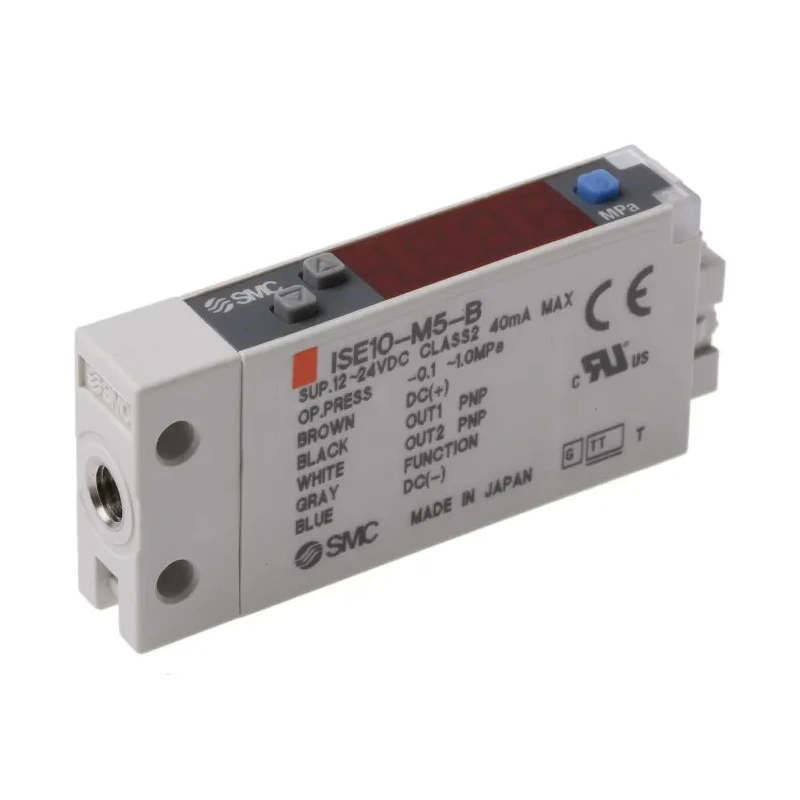

SMC ISE10-M5-B-G Pneumatic Pressure Sensor is engineered for accurate monitoring of positive pressure in pneumatic systems. Operating at 24V DC with a maximum pressure of 1 MPa, this sensor is suitable for various industrial applications involving air, gas, and non-corrosive gases.

The sensor features a robust IP40 rated enclosure that safeguards against ingress of solid objects larger than 1 mm, making it suitable for controlled industrial environments. Its compact dimensions of 56mm height, 25mm width, and 53.4mm depth facilitate installation in confined spaces.

Designed for versatile mounting options, this sensor supports DIN Rail, direct, and panel mount types, enabling easy integration into existing systems. With a digital display and side-mounted female M5 port, it provides straightforward installation and operational feedback.

The unit boasts a 2% full-scale accuracy, ensuring reliable pressure readings with a minimum operating pressure of 0.1 MPa. It outputs a PNP switch signal, suitable for control systems requiring such interfaces.

Certified under CE, CSA, and UL standards, and manufactured in Japan, the sensor maintains high-quality and safety compliance. Ideal for use in pneumatic and fluid power systems across manufacturing, process control, and automation sectors.

Designed for pneumatic applications with air, gas, and non-corrosive gas compatibility. Features a 2% FS accuracy for reliable pressure measurements. Equipped with a female M5 side port and PNP switch output. Mountable on DIN Rail, direct, or panel for flexible installation.

Operates in temperature ranges from -5°C to 50°C with CE, CSA, and UL certifications. Low profile design with dimensions 56mm height, 25mm width, and 53.4mm depth. Includes digital display for easy monitoring. Voltage supply at 24V DC ensures stable electrical operation.

IP40 enclosure rating protects against solid objects larger than 1 mm. Manufactured in Japan ensuring high quality and durable construction. Explore more Pneumatic Sensors & Switches at EnvMart for enhanced automation and control system solutions.
