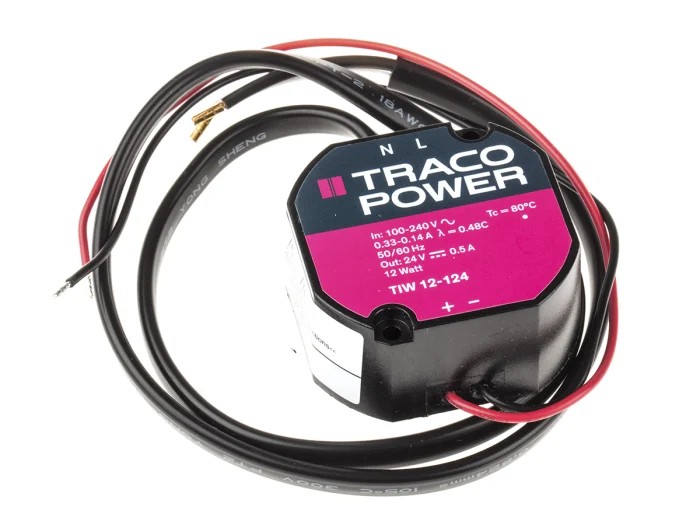

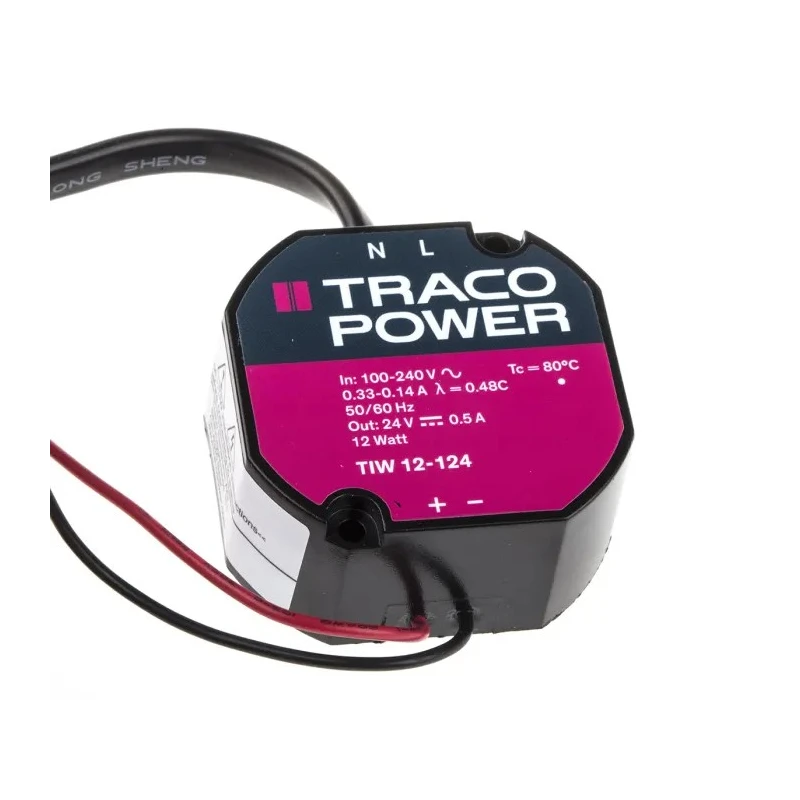

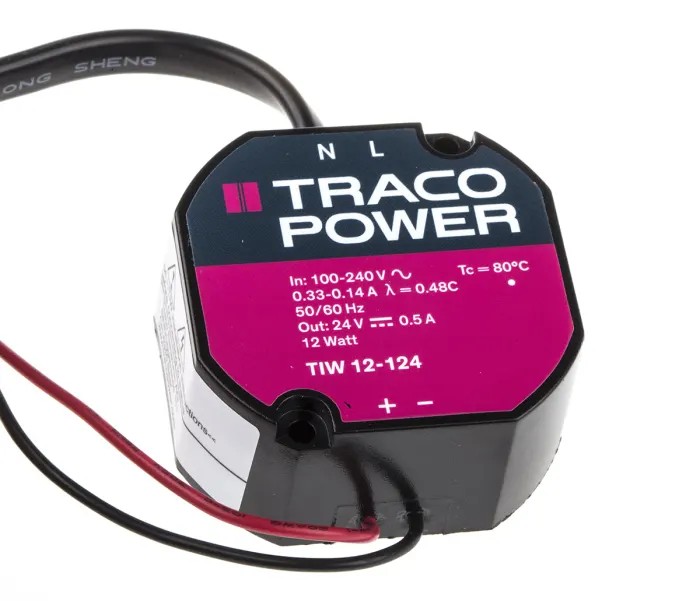

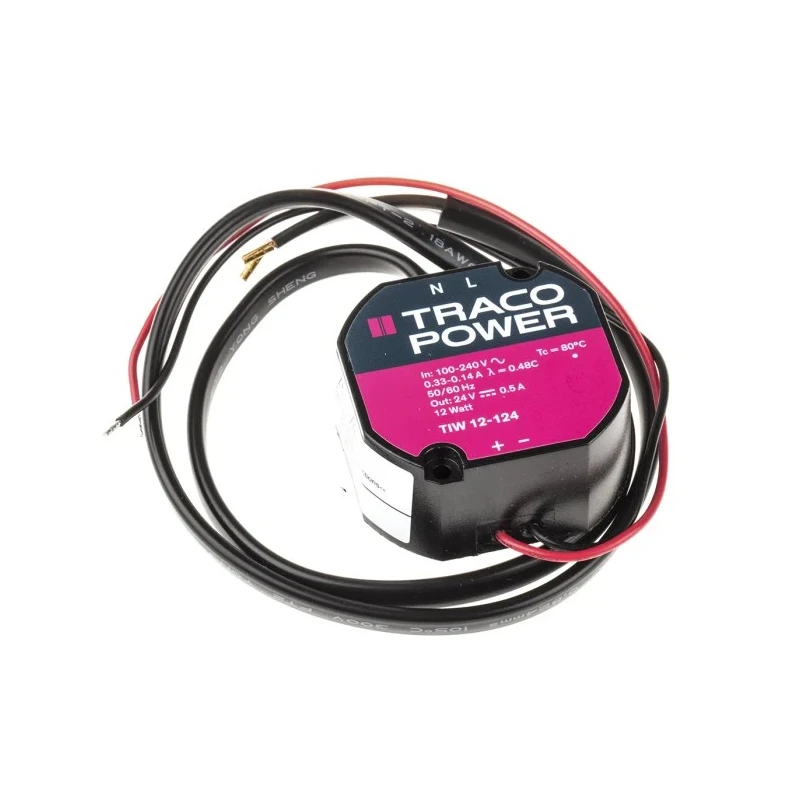

TRACOPOWER Switching Power Supply 24V DC, 12W, Surface Mount, 93-264V AC Input TIW 12-124

TRACOPOWER TIW 12-124 is a switching power supply designed to convert universal AC input voltages from 93V to 264V AC into a stable 24V DC output with a power rating of 12W. This surface-mounted unit offers an efficient 80% energy conversion rate, reducing heat generation and improving energy usage.

Engineered for industrial, telecommunications, renewable energy systems, and consumer electronics applications, the TIW 12-124 provides a reliable power source capable of operating in harsh environments, with temperatures ranging from -25°C to +50°C. The encapsulated plastic housing enhances impact resistance and durability, making it suitable for long-term deployment in demanding conditions.

Featuring overload and short-circuit protection, the unit minimizes risks associated with electrical faults, improving safety and protecting connected devices. Its compact footprint of 50.2mm by 48mm by 23.6mm and lightweight construction (80 grams) facilitate easy installation without adding mechanical stress.

The TIW series complies with critical international safety and environmental standards including RoHS, UL 1310 Class 2, IEC/EN 60950-1, EN 60335-1, and EN 50178, ensuring compliance with regulatory requirements.

Supports input voltage range from 93V AC to 264V AC for wide compatibility. Produces a single 24V DC output at 500mA current suitable for low-power applications. Surface mount type allows easy installation on walls or flush boxes.

Efficient operation rated at 80%, minimizing heat dissipation. Wide operating temperature range from -25°C to 50°C enables use in challenging environments. Constructed with a fully encapsulated plastic housing offering impact resistance and durability.

Includes overload and short-circuit protections for enhanced safety. Compact dimensions of 50.2mm length, 48mm width, and 23.6mm depth reduce mounting footprint. Lightweight at approximately 80 grams, minimizing strain on mounting surfaces.

Complies with RoHS, UL 1310 Class 2, IEC/EN 60950-1, EN 60335-1, and EN 50178 standards.

This switching power supply is ideal for applications in telecommunications networks, renewable energy systems, consumer electronics, and industrial equipment where stable, efficient, and safe power delivery is required.
